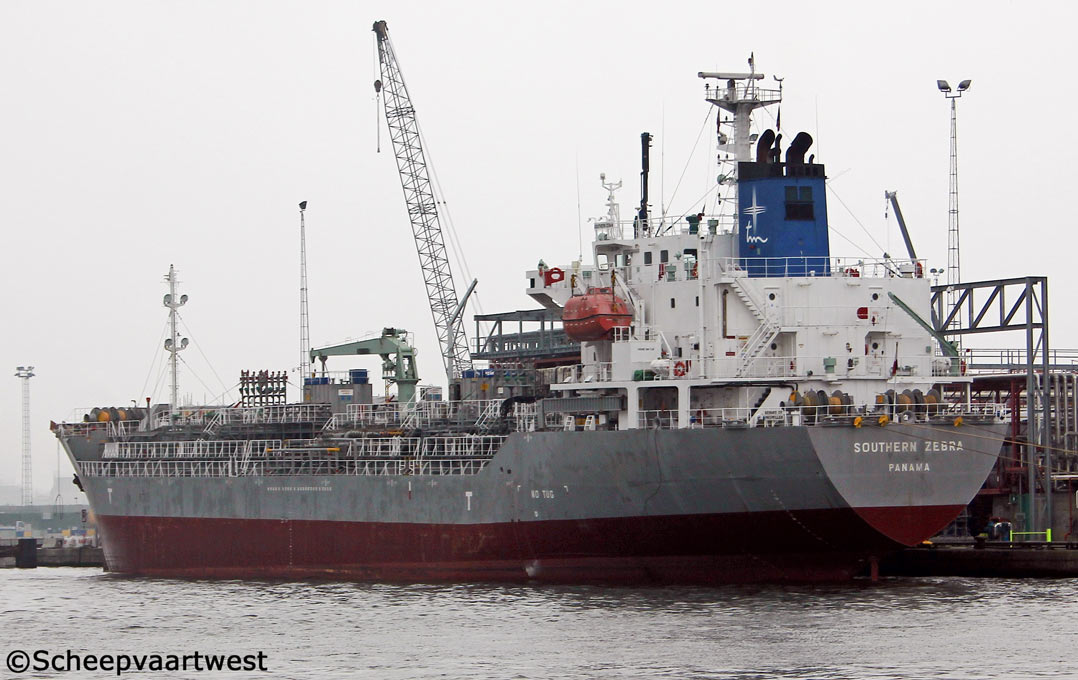

Southern Zebra 01

Antwerpen 06 September 2014



Name

SOUTHERN ZEBRA

Type

Oil / Chemical tanker

IMO-number

9312406

Call sign

H9DN

Flag

Republic of Panama

Port of registry

Panama City

GT

5.551 t registered

DWT

Summer: 8.907,86 t

NT

2.785 t registered

Length

115,50 m overall

Breadth

18,73 m

Draught

Summer: 7,61 m

Moulded L x B x D

108,50 x 18,70 x 10,00 m

Registered L x B x D

108,79 x 18,70 x 10,00 m

Freeboard

2.412 mm

Depth

10,00 m moulded

Speed

13,5 knots

Built

2004

Keel laid

30.03.2004

Launch date

12.07.2004

Date of completion

19.10.2004

Builder

Shitanoe Shipbuilding Co., Ltd.
Usuki
Japan

Yard number

1238

Hull material

Steel

Hull type

Double hull

Main engine

2x HITACHI MAN B&W 6L35MC Mk6 - 2 stroke single acting 6 cylinder 350 x 1.050 mm diesel engine - 3.900 kW / 5.310 hp at 210,0 rpm

Manufacturer: Hitachi Zosen Corporation Innoshima Works

Propeller shaft

1x Sea water lubrication shaft

Diameter: 322 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 9,8 bar

Evaporation: 10,81 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Generators 1.540 kVA

Bow thruster

1x 469 kW / 612 hp

Number of tanks

17

Cargo tank capacity

No.1 Port / STBD: 643,985 m³ / 644,389 m³

No.2 Port / STBD: 652,795 m³ / 659,270 m³

No.3 Port / STBD: 784,780 m³ / 777,667 m³

No.4 Port / STBD: 348,255 m³ / 354,220 m³

No.5 Port / STBD: 759,078 m³ / 751,746 m³

No.6 Port / STBD: 700,984 m³ / 707,062 m³

No.7 Port / STBD: 401,140 m³ / 393,657 m³

No.8 Port / STBD: 651,656 m³ / 259,561 m³

Total: 4.942,673 m³ / 4.947,569 m³

G. Total: 9.890,243 m³

Cargo pumps

8x 300 m³/h (2,3,5,6 PS) each

4x 300 m³/h (1,8 PS) each

4x 200 m³/h (4,7 PS) each

Portable cargo pump

1x 70 m³/h

Tank capacities

Fuel oil: 627 t

Fresh water: 258 m³

Water ballast: 2.863 m³

Lifting equipment

1x Cargo Hose Crane - SWL 4,0 t

Crew

Max.: 20

Manager

Sansho Kaiun Co., Ltd.
Tokyo
Japan

Operator

Tatsumi Marine(s) Pte. Ltd.

Registered owner

Southern Chemical Carriers S.A.

Latest data adjustment

07 November 2014
