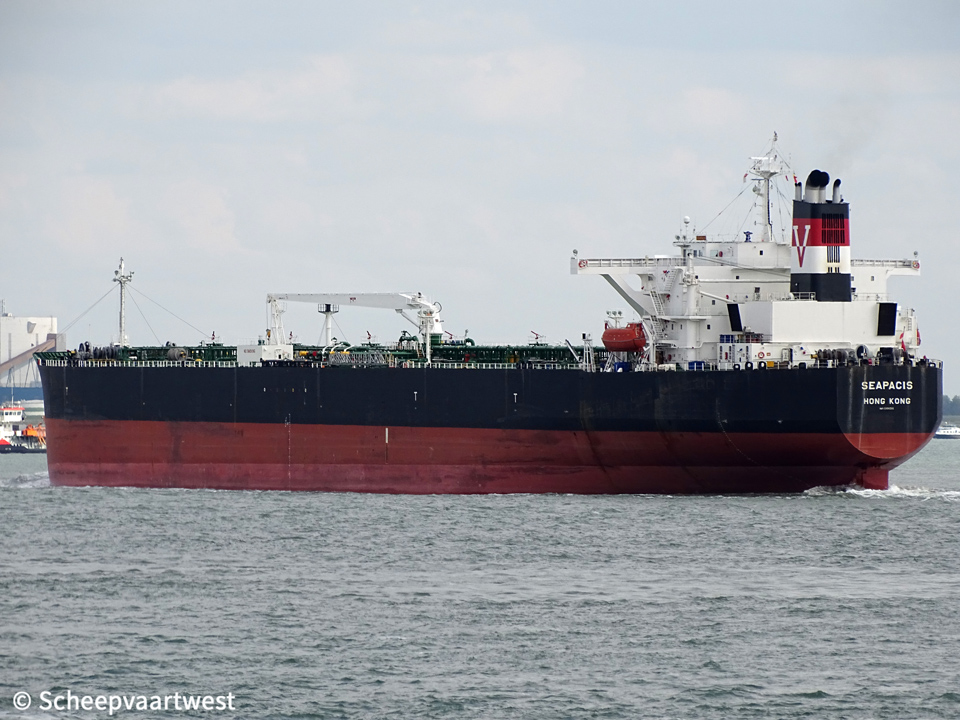

Seapacis 01

Westerschelde 09 September 2019



Name

SEAPACIS

Type

Crude oil tanker

IMO-number

9304356

Call sign

VRBE2

Flag

Hong Kong - China

Port of registry

Hong Kong

GT

56.489 t

Suez: 59.108,95 t

DWT

Summer: 105.747 t

Winter: 102.936 t

NT

32.667 t

Suez: 55.483,46 t

Displacement

Summer: 122.122 t

Winter: 119.311 t

Length

241,03 m overall

232,00 m between perpendiculars

Breadth

42,00 m extreme

Draught

Summer: 14,95 m

Winter: 14,64 m

Keel to masthead

48,24 m

Air draft

Summer deadweight: 33,29 m

Normal ballast: 40,24 m

Lightship: 44,07 m

Freeboard

Summer: 6.287 mm

Winter: 6.598 mm

Depth

21,20 m moulded

Speed

Ballast:

Max: 14,25 knots - Economic: 12,5 knots

Laden:

Max: 14,0 knots - Economic: 12,0 knots

Built

2005

Keel laid

22/12/2004

Launch date

11/06/2005

Delivery date

09/09/2005

Builder

Namura Shipyard Co. Ltd.
5-1, Shioya Kurogawa-Cho
Imari City, 848-0121
Japan

Yard number

261

Hull material

Steel

Hull type

Double hull

Main engine

1x Hitachi/MAN-B&W 6S60MC Mk6 - 6 cylinder 600 x 2.292 mm combustion engine 12.240 kW at 105,0 rpm

Manufacturer: Hitachi Zosen Diesel & Engineeering Co., Ltd.

Propellers

1x Four blade solid keyless

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Auxiliary boiler - 16,0 bar

1x Exhaust gas boiler - 20,0 bar

Generators

3x Daihatsu 5DK20 - 5 cylinders diesel 200 x 300 mm engines coupled with generators each 600 kW

Cargo tank capacity 98%

113.307,4 m³

Segregation with double valve

Seg#1: 40.106 m³ (1P/S, 4P/S, SLOP P/S)

Seg#2: 39.229 m³ (2P/S, 6P/S)

Seg#3: 40.486 m³ (3P/S, 5P/S)

Number of slop tanks

2

Slop tank capacity 98%

6.315,20 m³

Number of pumps

2x Centrifugal ballast pumps each 1.800 m³/h

3x Centrifugal cargo pumps each 2.500 m³/h

Manifolds

Distance bridge front to centre of manifold: 84,40 m

Bow to centre manifold: 118,90 m

Stern to centre manifold: 122,00 m

Distance between cargo manifold centres: 2.500 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4,600 mm

Top of rail to centre of manifold: 870 mm

Distance main deck to centre of manifold: 1.847 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 2.902,36 m³

Ballast: 39.561,31 m³

Lub oil: 85,40 m³

Diesel oil: 250,85 m³

Fresh water: 456,40 m³

Lifting equipment

1x Hose handling davit portside - SWL 0,9 t

1x Hose handling davit starboard - SWL 0,9 t

1x Pump room davit - SWL 1,5 t

Manufacturer: Fujiki Co., Ltd.

1x Hose handling crane - SWL 15,0 t

1x Provision crane - 3,0 t

Manufacturer: Naikai Zosen Corporation

Crew size

35

Technical operator

Valles Steamship (Canada) Ltd.
Suite 1160, Guinness Tower,
1055 West Hastings Street, B.C. Canada, V6E 2E9
Canada

Commerical operator

Penfield marine LLC
200 Pequot Avenue

Southport CT 06890

United States

Registered owner

Seaway Navigation Limited
68th Floor, Room 6810-11. The Center, No.99 Queens Road, Central
Hong Kong

Disponent owner

Penfield Yankers LLC
Trust Company Complex Ajeltake Island Majuro
Marshall Islands MH 96960

Latest data adjustment

02 December 2019
