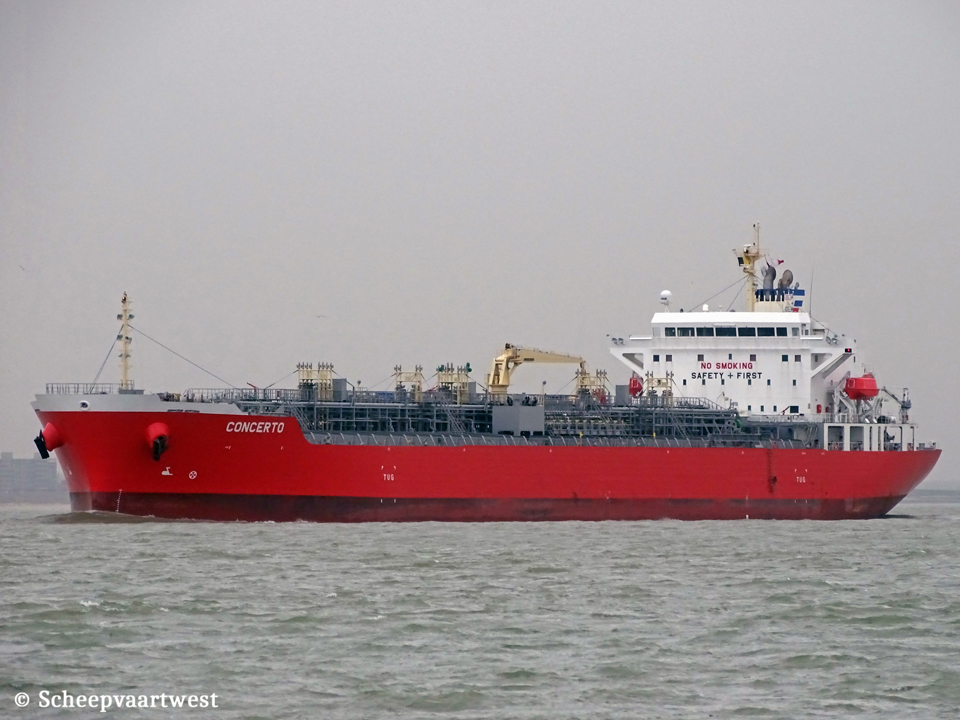

Concerto IMO 9743837 02

Westerschelde 02 January 2018

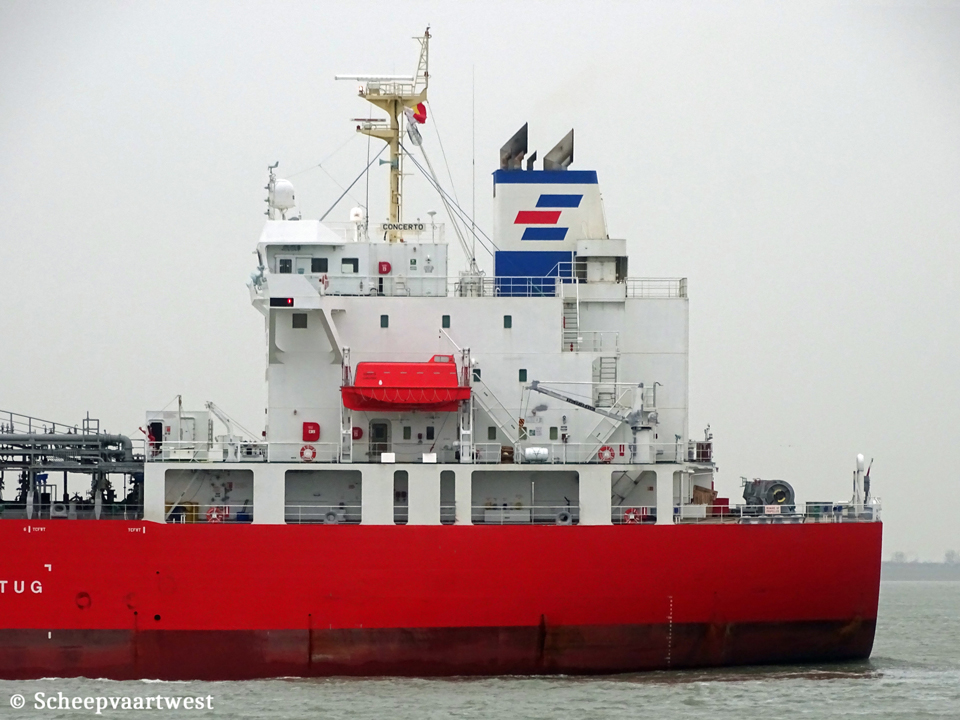

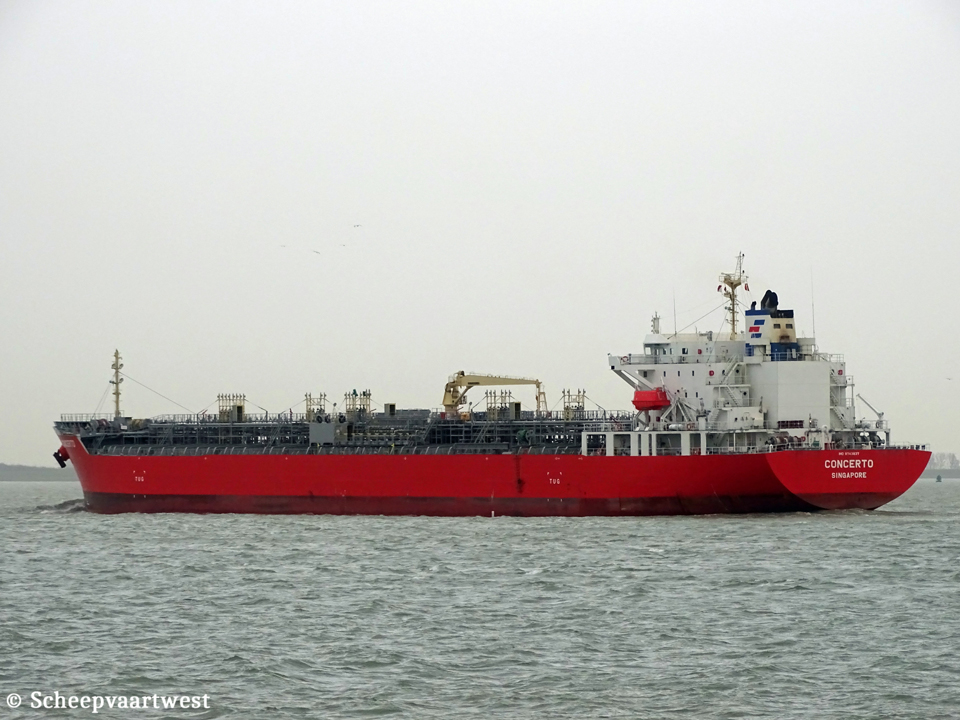

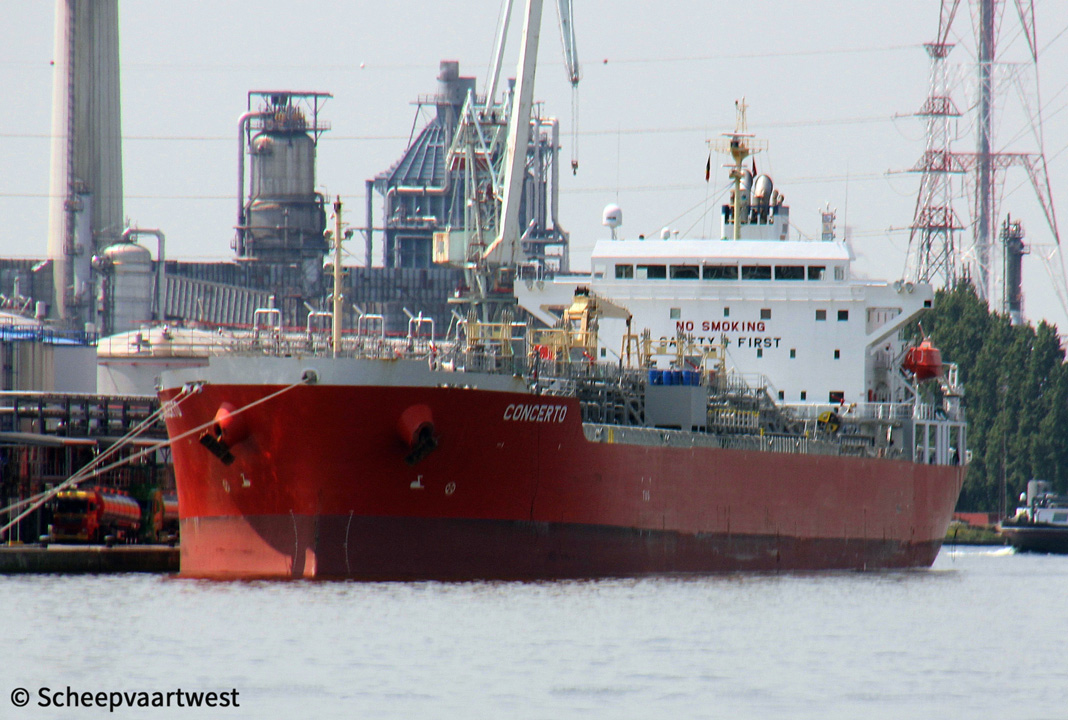

Concerto IMO 9743837 04   Concerto IMO 9743837 03   Concerto 01
Westerschelde 02/01/18   Westerschelde 02/01/18   Antwerpen 17/07/19


Name

CONCERTO

Type

Oils - Chemicals - Molasses tanker

IMO-number

9743837

Call sign

9V5045

Flag

Republic of Singapore

Port of registry

Singapore City

GT

22.987 t registered

DWT

Summer: 37.350,49 t

NT

9.866 t registered

Length

180,15 m overall

Breadth

28,20 m moulded

Draught

Max: 11,37 m

Moulded L x B x D

174,15 x 28,20 x 16,30 m

Registered L x B x D

174,34 x 28,20 x 16,30 m

Freeboard

4.964 mm

Depth

16,30 m moulded

Speed

Max: 16,7 knots

Service: 14,0 knots

Built

2017

Keel laid

02/12/2015

Launch date

28/04/2017

Date of completion

31/07/2017

Builder

Kitanihon Shipbuilding Co., Ltd.

Yard number

626

Hull material

Steel

Hull type

Double hull

Main engine

1x Makita/Man-B&W 6S46ME-B8 - 2 stoke single acting 6 cylinder 40 x 1.932 mm combustion engine 6.100 kW at 110,0 rpm

Manufacturer: Makita Corporation

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 460 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 9,3 bar

Evaporation: 18,98 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generatorsets total 2.750 kVA

Number of cargo tanks

28

Cargo tank capacity

Liquid: 38.261,05 m³

Tank capacities

Fuel oil: 2.336,08 m³

Fresh water: 592,90 m³

Manager

TM Shipmanagement Co., Ltd.

Registered owner

Diana Navigation Pte Ltd.

Latest data adjustment

19 December 2019
