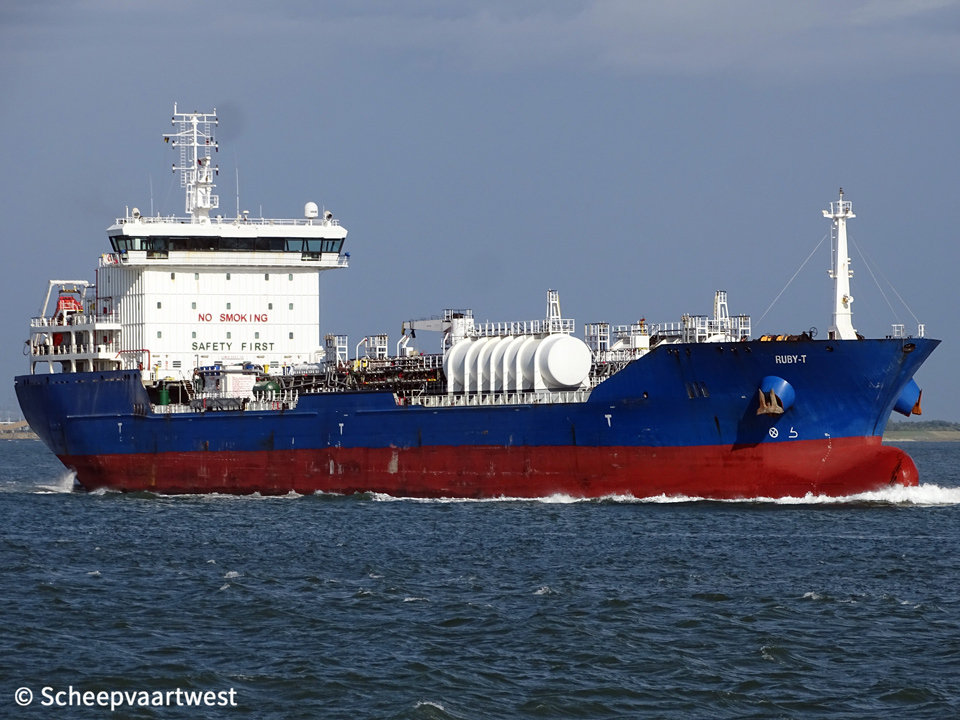

Ruby T 04

Westerschelde 05 August 2019

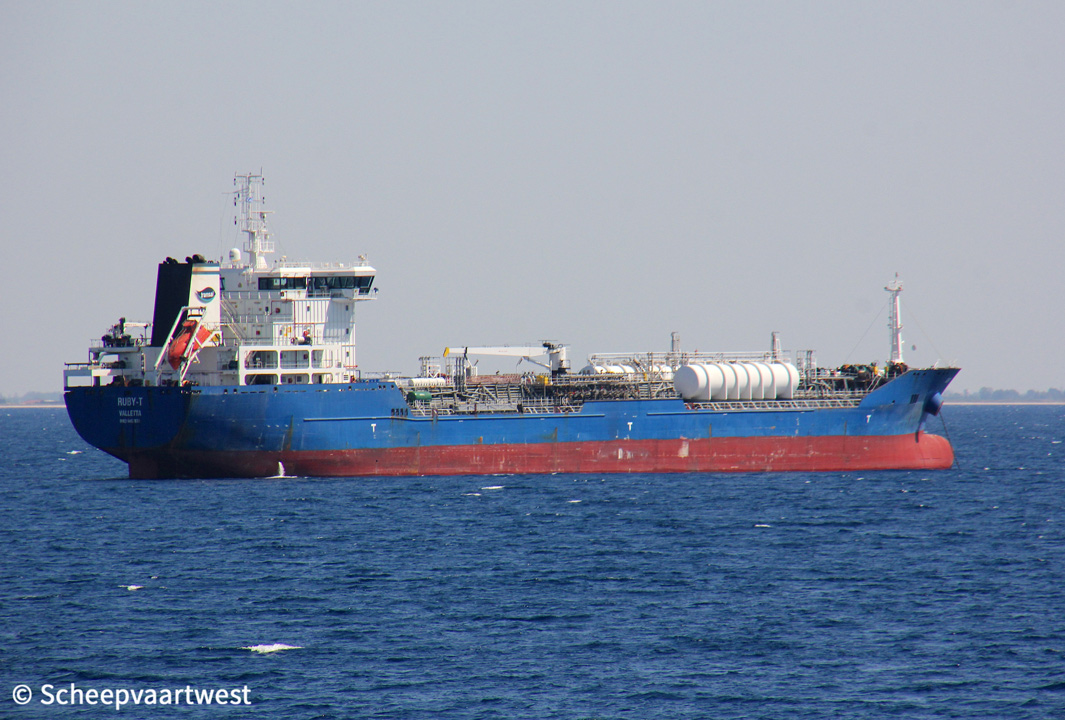

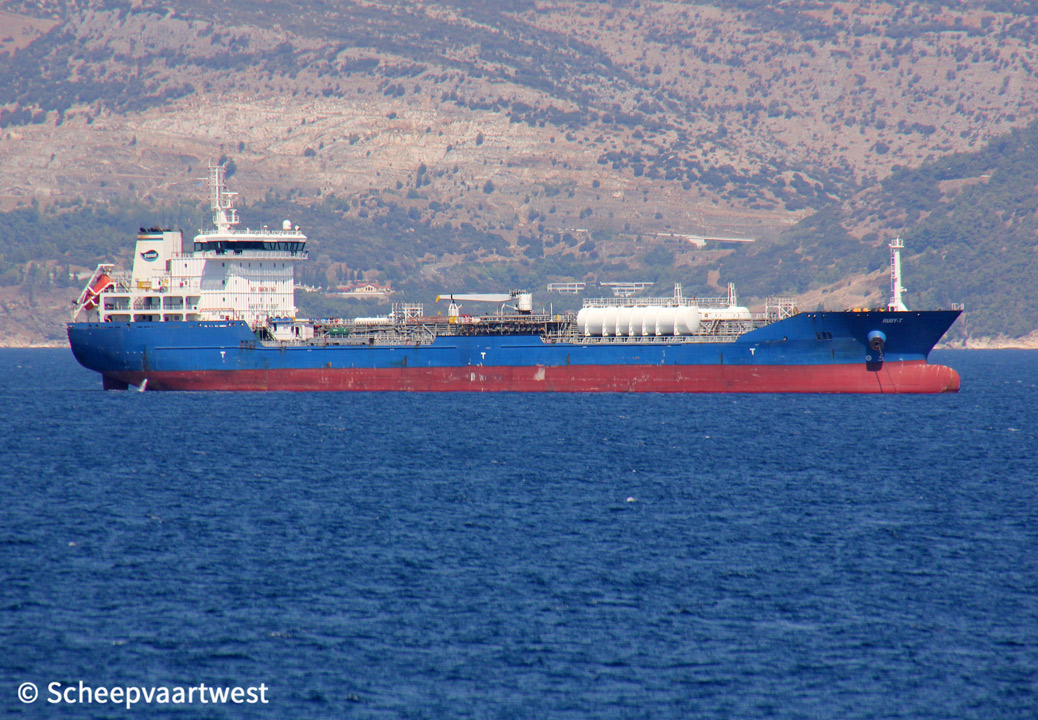

Ruby T 01   Ruby T 02
Aegean Sea, Greece 03/09/19   Aegean Sea, Greece 03/09/19













Name

RUBY-T

Type

Tanker for chemicals and oil products

IMO-number

9457878

Call sign

9HA2520

Flag

Malta

Port of registry

Valletta

Previous flags

Republic of Panama, Panama City - Call sign: 3FWS6

GT

12.890 t

DWT

21.224 t

NT

6.669 t

Length

156,69 m overall

147,36 m between perpendiculars

Breadth

22,90 m extreme

Draught

Max: 9,80 m

Depth

12,80 m

Speed

Max: 15,5 knots

Built

2010

Keel laid

22/12/2008

Launch date

16/07/2010

Date of completion

29/12/2010

Builder

Gisan Tuzla Shipyard

Istanbul

Turkey

Yard number

46

Hull material

Steel

Main engine

1x MAN 6L48/60B - 4 stroke single acting 6 cylinder combustion engine 6.300 kW

Manufacturer: MAN Diesel & Turbo SE, Augsburg - Germany

Propellers

1x Schottel controllable pitch propeller

Boilers

1x Thermal oil heater, exhaust heated

2x Thermal oil heater, oil fired

Generators

3x Yanmar 6N21L-EV main diesel generatorsets

Emergency generator

1x Man D2866 TE diesel generatorset

Cargo tank capacity 100%

22.684 m³

Slop tank capacity 100%

498 m2

Tank capacities

Ballast: 8.630,2 m³

Fuel oil: 800,6 m³

Fresh water: 647,5 m³

Anchor equipment

Length: 577,50 m

Diameter: 60 mm

Crew size

22

Manager

Transal Denizcilik Ticaret AS

Yeşilköy, Atatürk Cad No 12 EGS Business Park Bloklai B2 Kat 5 Bakirköy

34149 Bakirköy/Istanbul

Turkey

Registered owner

Neriman Associates SA

Edificio Mossfon

Calle 54 Este Urbanizacion Obarrio

Panama City

Republic of Panama

Latest data adjustment

26 September 2020
