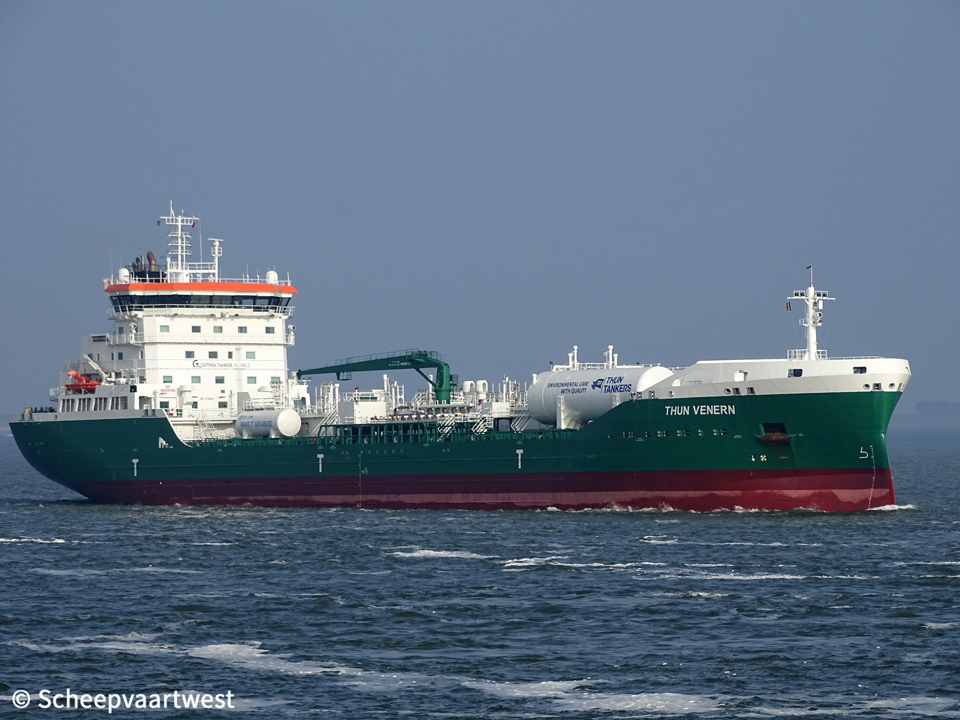

Thun Venern 01

Westerschelde 01 May 2019

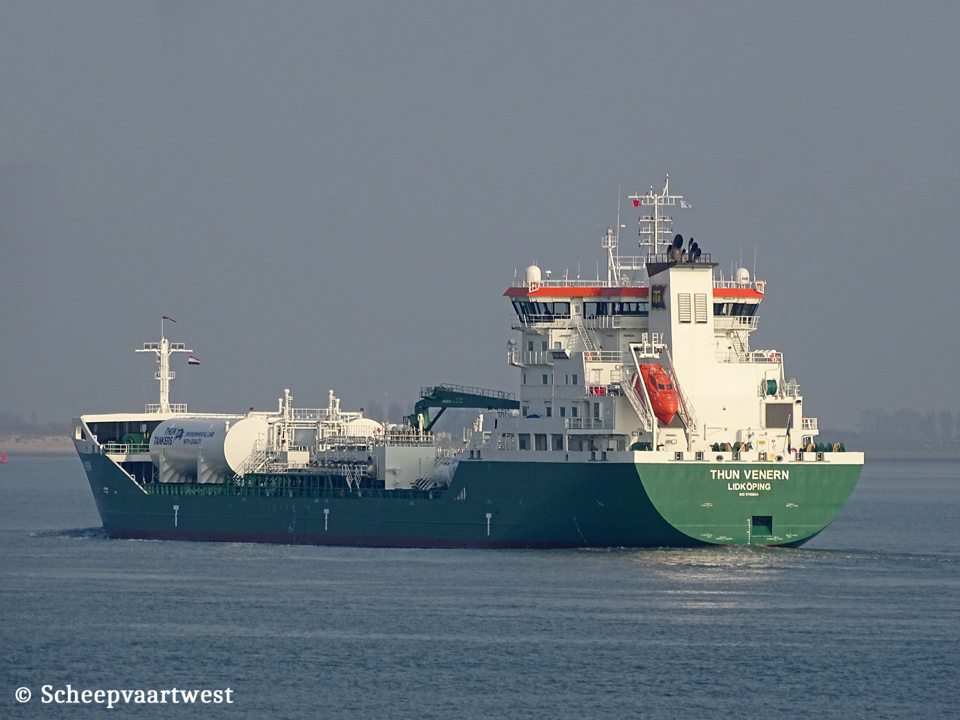

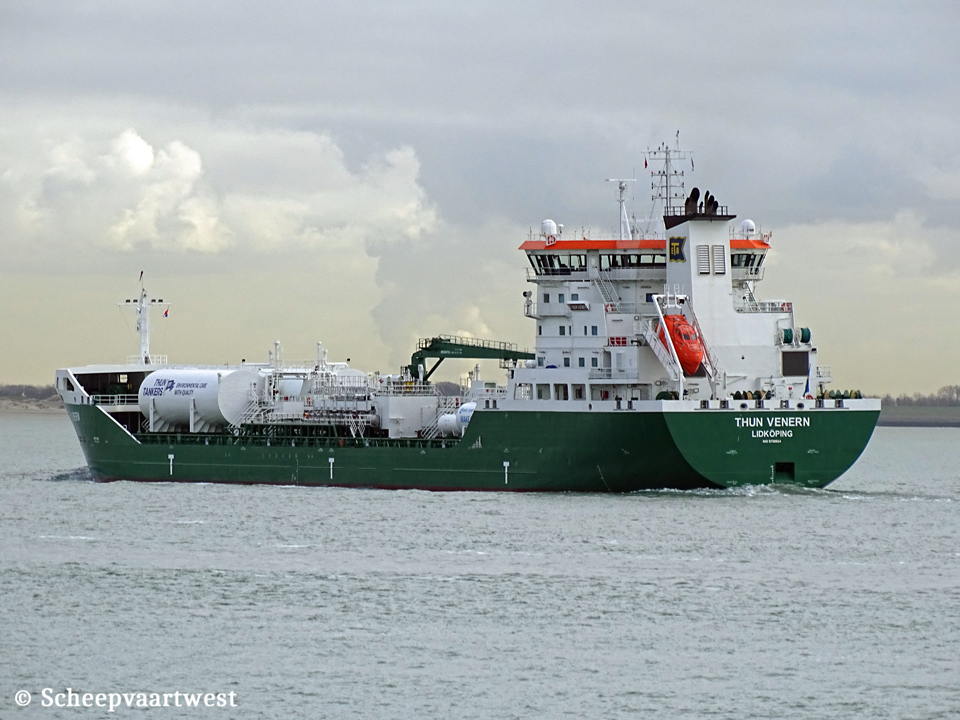

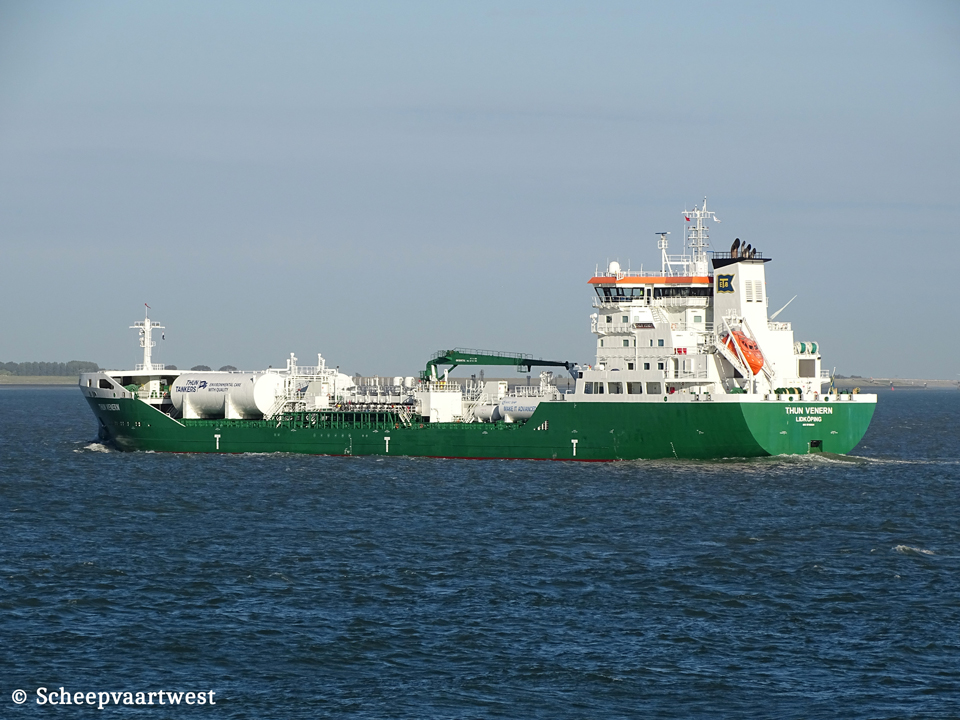

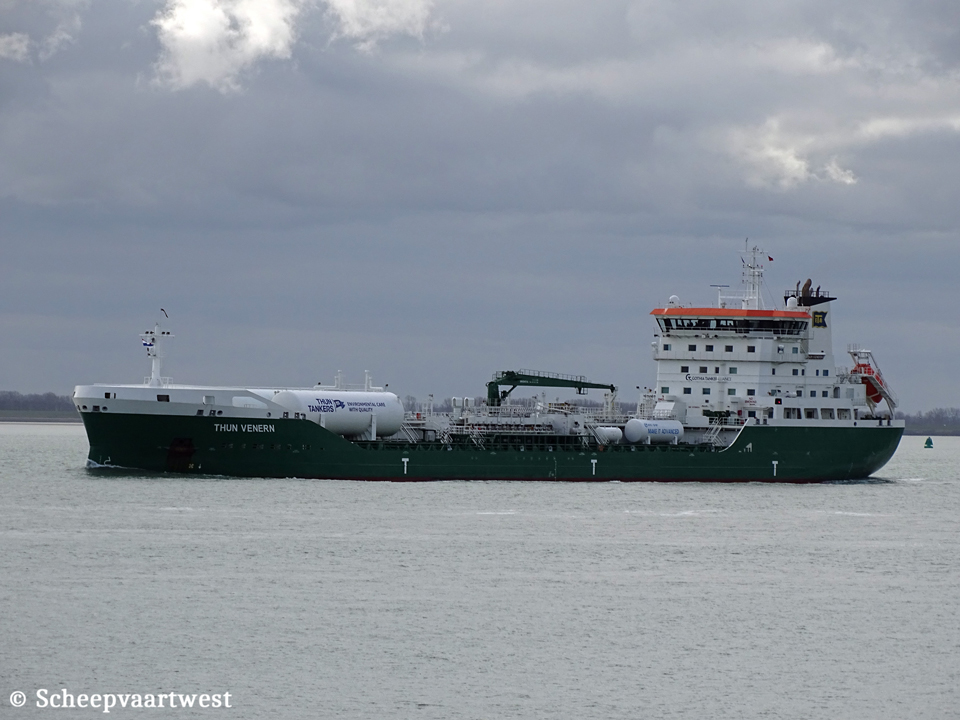

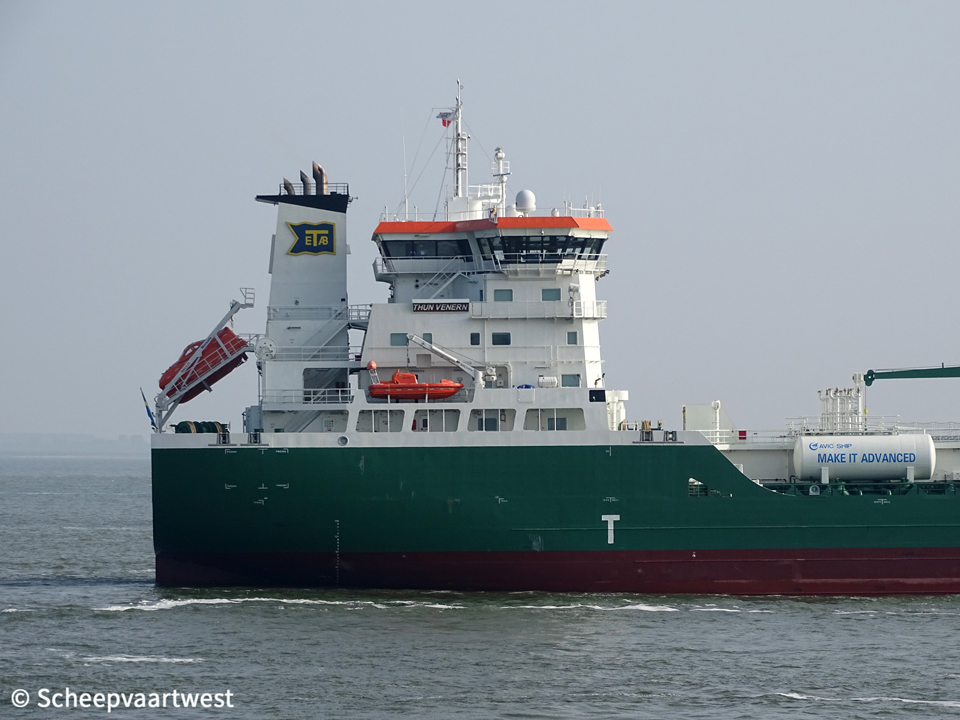

Thun Venern 02   Thun Venern IMO 9739824 03   Thun Venern IMO 9739824 04
Westerschelde 01/05/19   Westerschelde 05/02/20   Westerschelde 05/02/20













Name

THUN VENERN

Type

Oil product/Chemical tanker

Main products

Chemicals

IMO-number

9739824

Call sign

SGTE

Flag

Sweden

Port of registry

Lidköping

GT

12.770 t

DWT

17.998 t

NT

5.838 t

Length

149,90 m overall

146,64 m between perpendiculars

Breadth

22,90 m

Draught

Max: 9,36 m

Freeboard

2.752 mm

Depth

12,10 m

Speed

13,0 knots

Built

2018

Date of completion

27/09/2018

Builder

Avic Dingheng Shipbuilding Co., Ltd.

China

Yard number

AD0028

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Wärtsilä 9L34DF - 4 stroke 9 cylinder dual-fuel combustion engine 4.500 kW / 6.114 hp at 750 rpm

Build: 20/12/2017

Builder: Wärtsilä Finland Oy, Vaasa - Finland

Propellers

1x Controllable propeller

Boilers

1x CHM 235,00 m² - 10,0 bar

1x CHO 64,00 m² - 10,0 bar

Shaft generator

1x 2.250 kVA - 1.800 kW

Generators

1x Main combustion engine generatorset 856 kVA - 685 kW - 980 hp

1x Main combustion engine generatorset 2.000 kVA - 1.600 kW - 2.262 HP

Emergency generator

1x Combustion engine generatorset 250 kVA - 200 kW - 345 hp

Bow thruster

850 kW

Number of cargo tanks

12

Total capacity of tanks

20.216,5 m³

Tank capacities

Fuel: 674.9 m³

Commercial manager

Furetank Rederi AB

Korsholmebacke 1

SE-430 82 Donso

Sweden

Operator

Furetank Rederi AB

Registered owner

Erik Thun AB

Östra Hamnen 7

531 32 Lidköping

Sweden

Latest data adjustment

27 July 2021
