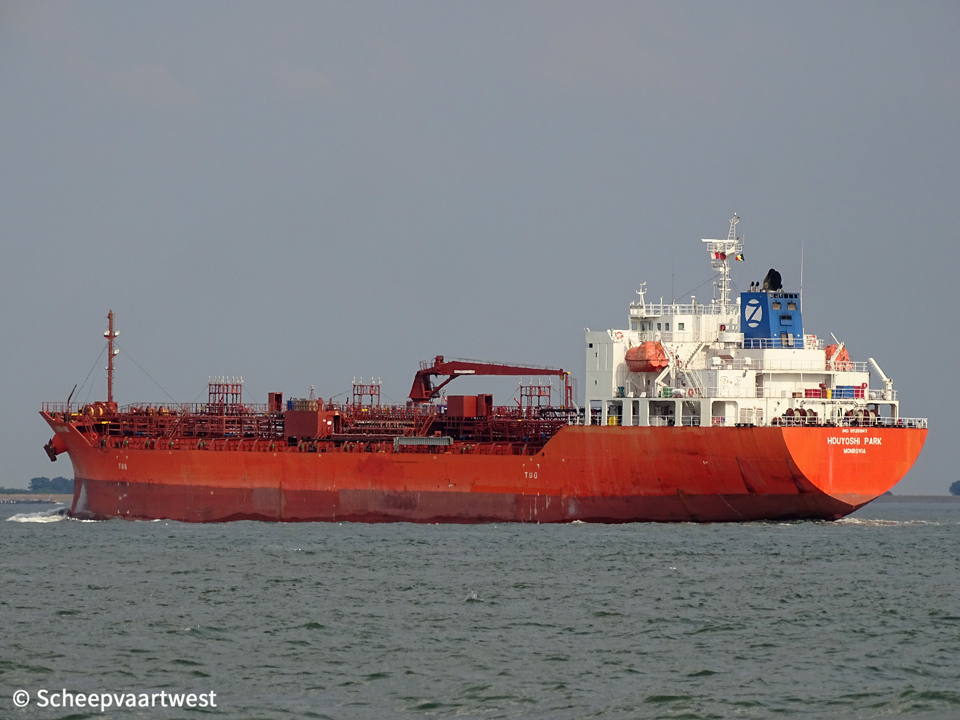

Houyoshi Park 01

Westerschelde 16 July 2018



Name

HOUYOSHI PARK

Type

Tanker of oil product and chemicals

IMO-number

9725847

Call sign

D5KW8

Flag

Liberia

Port of registry

Monrovia

GT

12.145 t registered

Suez: 12.671 t

DWT

Summer: 19.998,28 t

Winter: 19.392 t

NT

6.203 t registered

Panama: 10.211 t

Suez: 10.596 t

Displacement

25.801 t

Light ship

5.803 t

Length

145,00 m overall

Breadth

24,20 m moulded

Draught

Summer: 9,74 m

Winter: 9,54 m

Moulded L x B x D

139,00 x 24,20 x 13,20 m

Registered L x B x D

139,36 x 24,20 x 13,20 m

Freeboard

3.488 mm

Depth

13,20 m moulded

Speed

Max: 16,0 knots

Built

2016

Keel laid

07/09/2015

Launch date

06/01/2016

Date of completion

12/04/2016

Builder

Kitanihon Shipbuilding Co., Ltd.
Hachinohe

Japan

Yard number

610

Hull material

Steel

Hull type

Double hull

Main engine

1x Akasaka 5UEC45LSE-1 - 2 stroke single acting 5 cylinder 450 x 1.840 mm combustion engine 4.900 kW at 124,0 rpm

Manufacturer: Akasaka Diesels Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 390 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 9.0 bar

Evaporation: 16,12 t/h

Manufacturer: MIura Co., Ltd.

Generators

4x generators total 2.164 kVA

Manifolds

Distance bow to centre of manifold: 73,85 m

Distance deck to centre of manifold: 2,60 m

Distance manifold to rail: 4,60 m

Cargo tank capacity

Tank 1 (P): 600 m³

Tank 1 (S): 602 m³

Tank 2 (P): 576 m³

Tank 2 (S): 564 m³

Tank 3 (P): 1.221 m³

Tank 3 (S): 1.232 m³

Tank 4 (P): 2.450 m³

Tank 4 (S): 2.439 m³

Tank 5 (P): 1.011 m³

Tank 5 (S): 1.023 m³

Tank 6 (P): 2.548 m³

Tank 6 (S): 2.548 m³

Tank 7 (P): 2.010 m³

Tank 7 (S): 1.999 m³

Tank 8 (P): 562 m³

Tank 8 (S): 562 m³

Total liquid: 22.403,48 m³

Tank capacities

Fuel oil: 1.136,17 m³

Fresh water: 402,86 m³

Manager

Zodiac Maritime Agencies Ltd.
5th Floor, Portman House
2 Portman Street, London, W1H 6DU

United Kingdom

Registered owner

Houyoshi Ocean Corporation/Komenaka Kaiun Co., Ltd.

Latest data adjustment

07 May 2019
