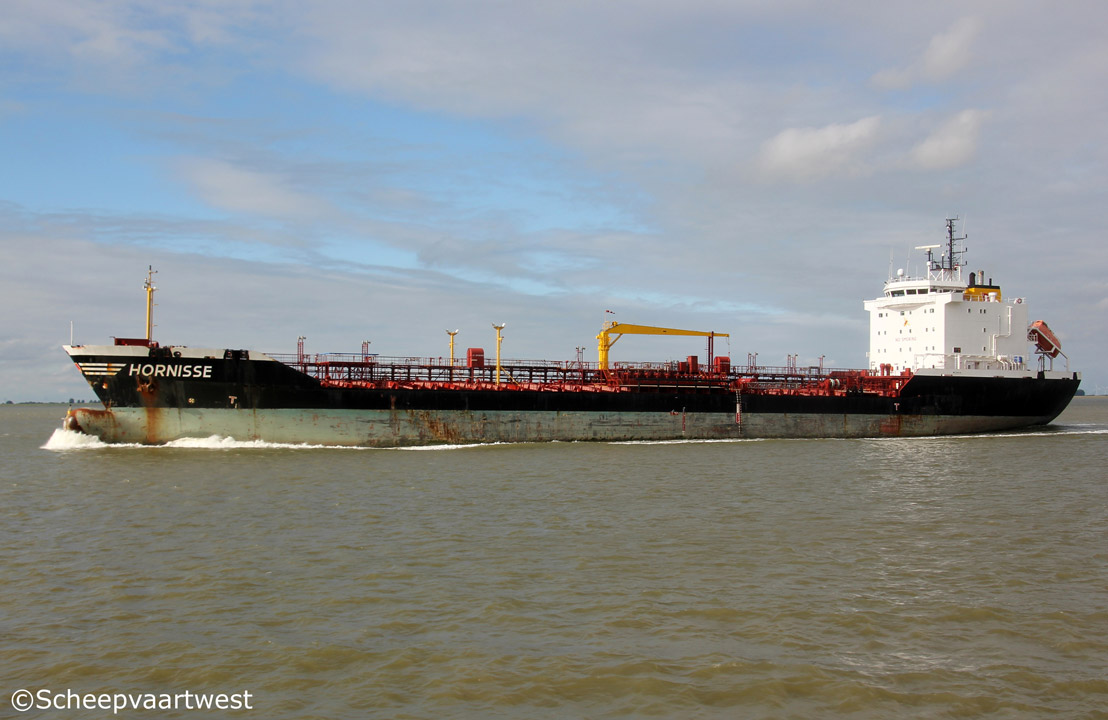

Hornisse 03
Westerschelde 07 August 2016

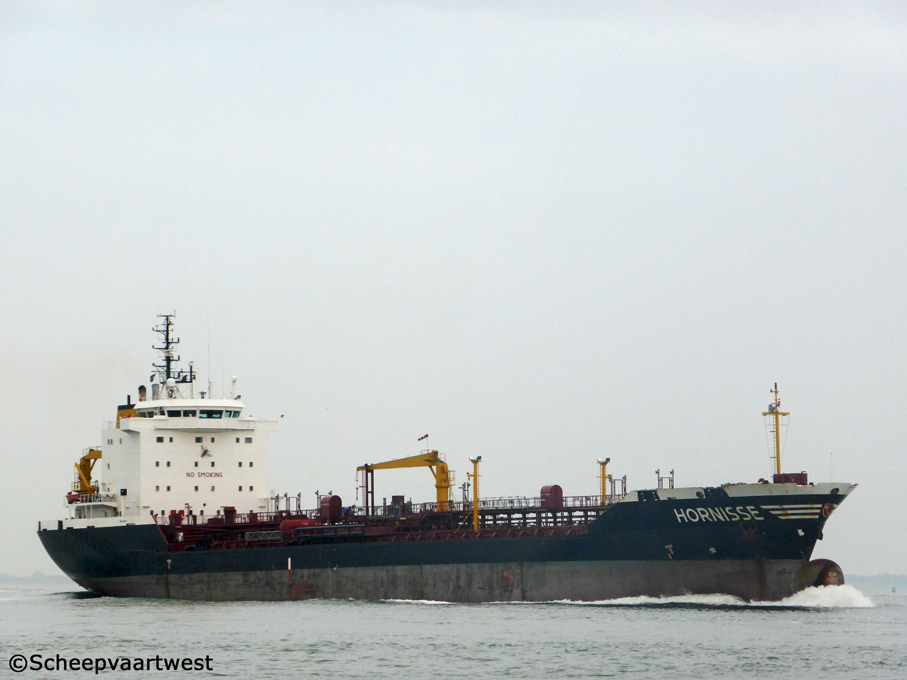

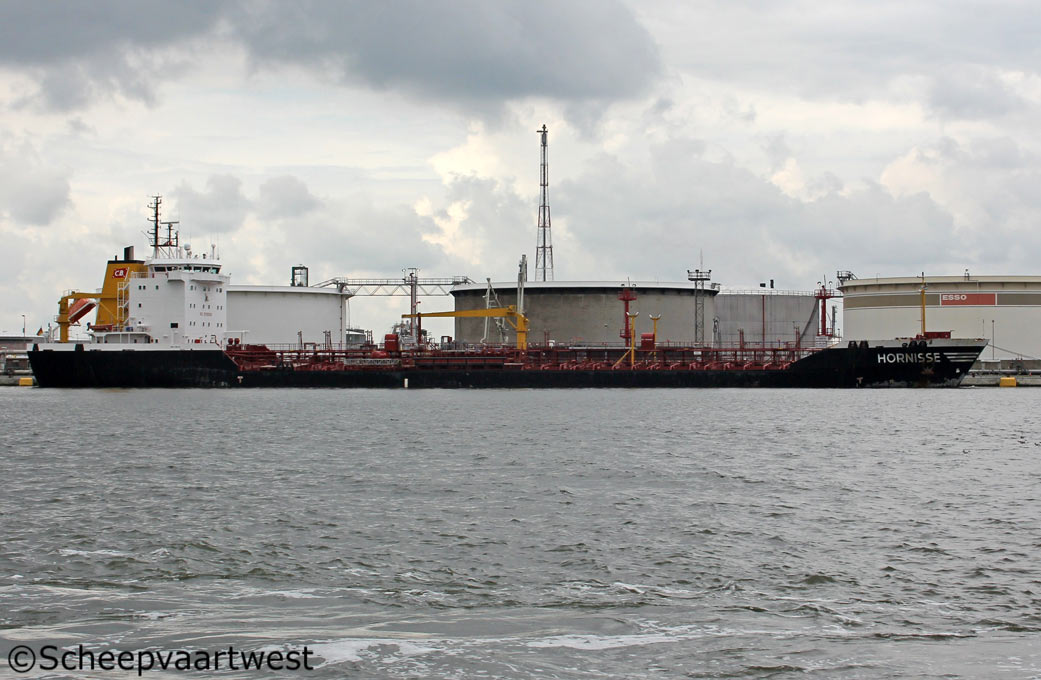

Hornisse 02   Hornisse 01
Westerschelde 06/06/14   Antwerpen 15/07/12


Name

HORNISSE

Type

Tanker for oil and chemicals

IMO-number

9186728

Call sign

DDPU

Flag

Germany

Port of registry

Bremen

GT

8.114 t

DWT

12.999 t

NT

4.183 t

Length

145,56 m overall

138,98 m registered

Breadth

19,60 m registered

Draught

8,361 m

Forecastle

12,78 m

Poop

27,90 m

Depth

10,65 m moulded

Speed

15,0 knots

Built

1998

Keel laid

20.08.1997

Launch date

31.01.1998

Date of completion

01.07.1998

Builder

Lindenau GmbH Schiffswerft & Maschinenfabrik
Christianspries 30
24159 Kiel
Federal Republic of Germany

Yard number

249

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MaK 9 M 32 - 4 stroke 9 cylinder 320 x 480 mm diesel engine - 4.200 kW at 600 rpm

Year of manufacture: 1997

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 115 rpm

Boilers

1x Steam boiler, oil fired - 12,0 bar

Heating Surface: 55,5 m²

1x Steam boiler, exhaust gas heated - 12,0 bar

Heating Surface: 97,8 m²

Year of manufacture: 1998

Manufacturer: Aalborg Sunrod
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installation

2x Plants each 380/220 V - 1.125 kVA

1x Plant 380 V - 800 kVA

1x Plant 380 V - 124 kVA

Shaft generator

1x Siemens - 800 kVA / 640 kW 380 Volt 50 Hz

Generators

2x YANMAR 6N21AL-EN main diesel generatorsets each 1.150 kVA

Emergency generator

1x Diesel generatorset 124 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 1.000 litres - 10,0 bar

Bow thruster

1x Fixed pitch propeller LIPS type CT 06 - 550 kW, forward

Number of cargo tanks

10

Cargo capacity 98%

No. 1 P: 1.276 m³

No. 1 S: 1.281 m³

No. 2 P: 1.509 m³

No. 2 S: 1.511 m³

No. 3 P: 1.524 m³

No. 3 S: 1.524 m³

No. 4 P: 1.520 m³

No. 4 S: 1.521 m³

No. 5 P: 1.336 m³

No. 5 S: 1.506 m³

Slop: 172 m³

Total: 14.680 m³

Pumps

10x Framo deepwell pumps each 250 m³/h

1x Framo deepwell pump for slop tank - 100 m³/h

1x Portable hydraulic deepwell pump - 70 m³/h

2x Electric driven ballast pumps each 300 m³/h

Cargo manifold

Stern to centre manifold: 73,00 m
Bow to centre manifold: 72,61 m
Deck to centre manifold: 2,74 m
Side to centre manifold: 4,60 m

Tank capacities

Fuel oil: 414 m³

Ballast water: 4.992 m³

Anchor equipment

3x Anchors weight each 4.320 kg

Chain length: 554,00 m

Diameter: 52 mm

Manager

Carl Büttner Shipmanagement GmbH
Herrlichkeit 2
28199 Bremen
Federal Republic of Germany

Registered owner

TMS "HORNISSE" Tankschiffahrtsges. mbH & Co. KG
Herrlichkeit 2
28199 Bremen
Federal Republic of Germany

Latest data adjustment

11 December 2016
