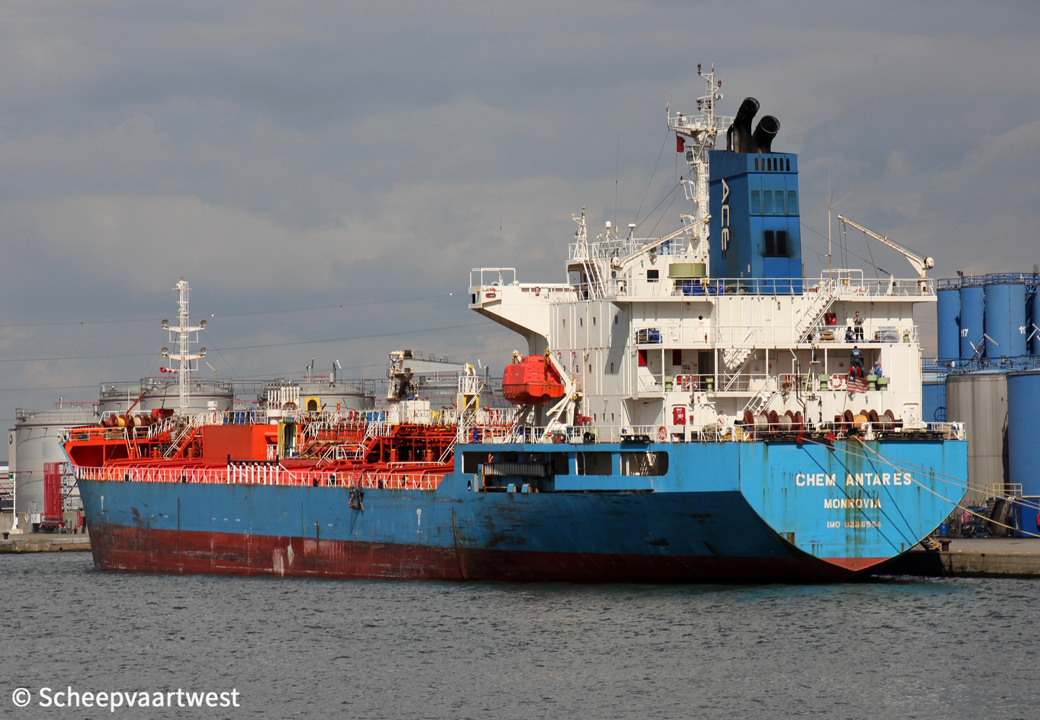

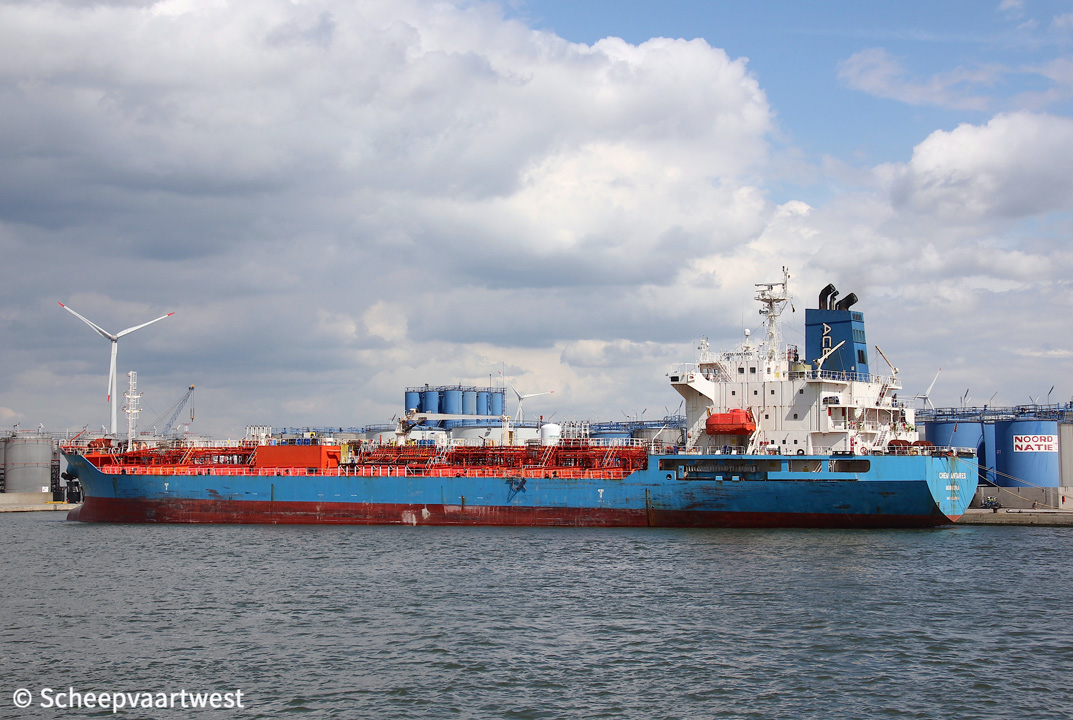

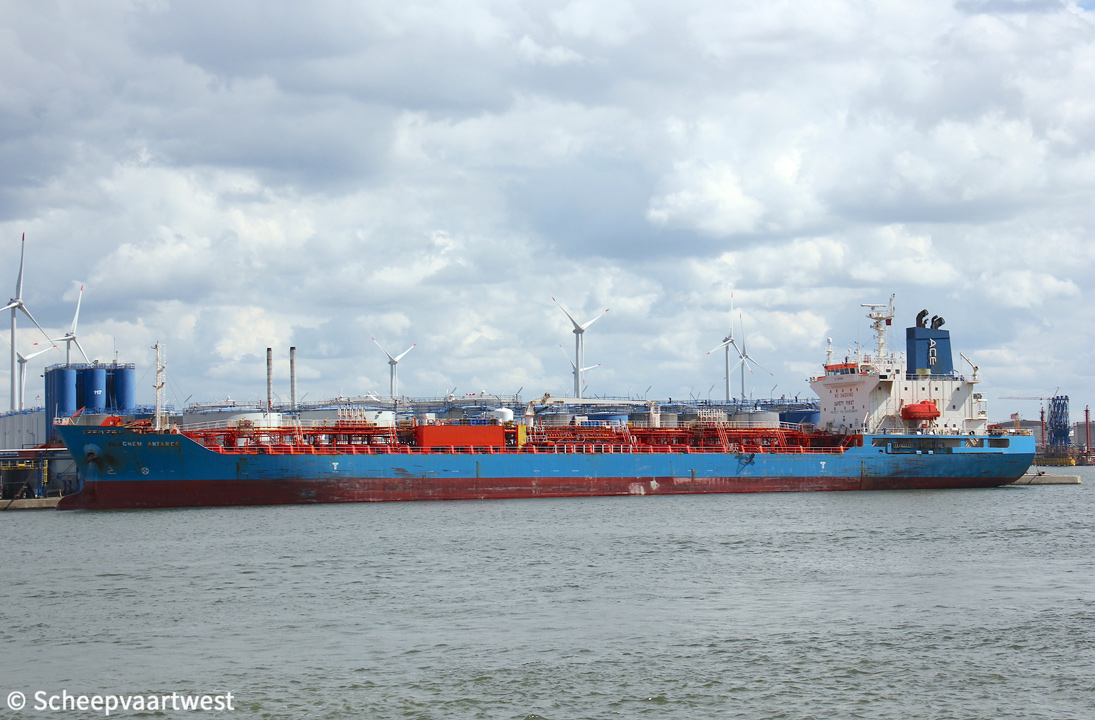

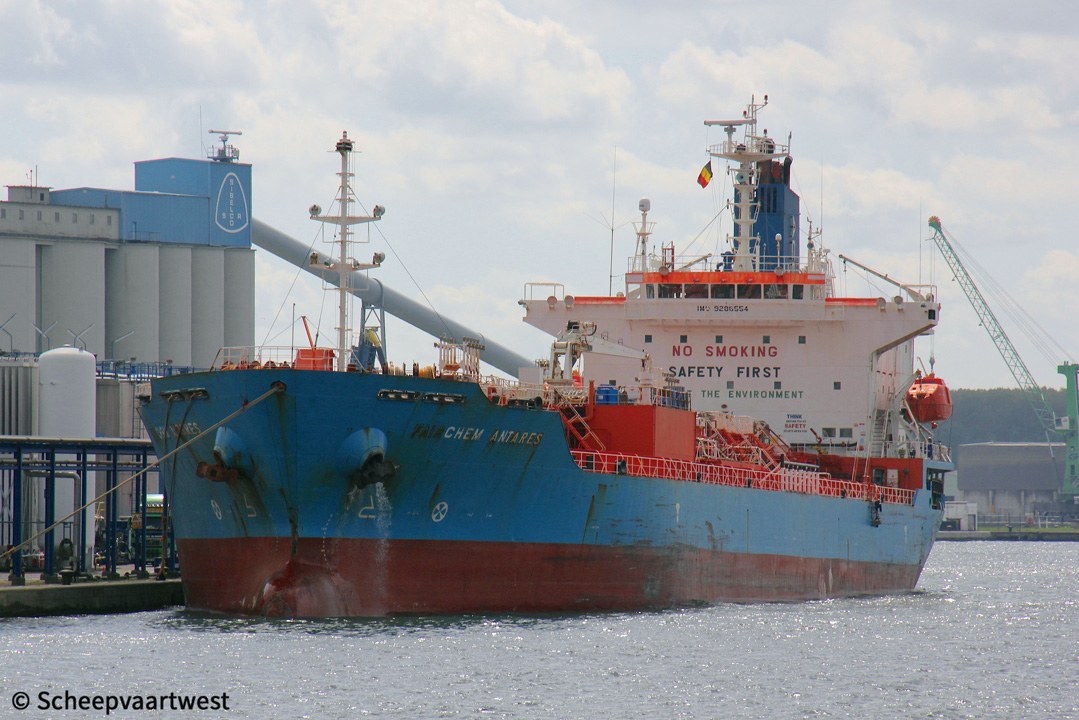

Antwerpen 26 April 2019 |
 |
 |
 |
 |
 |
||||

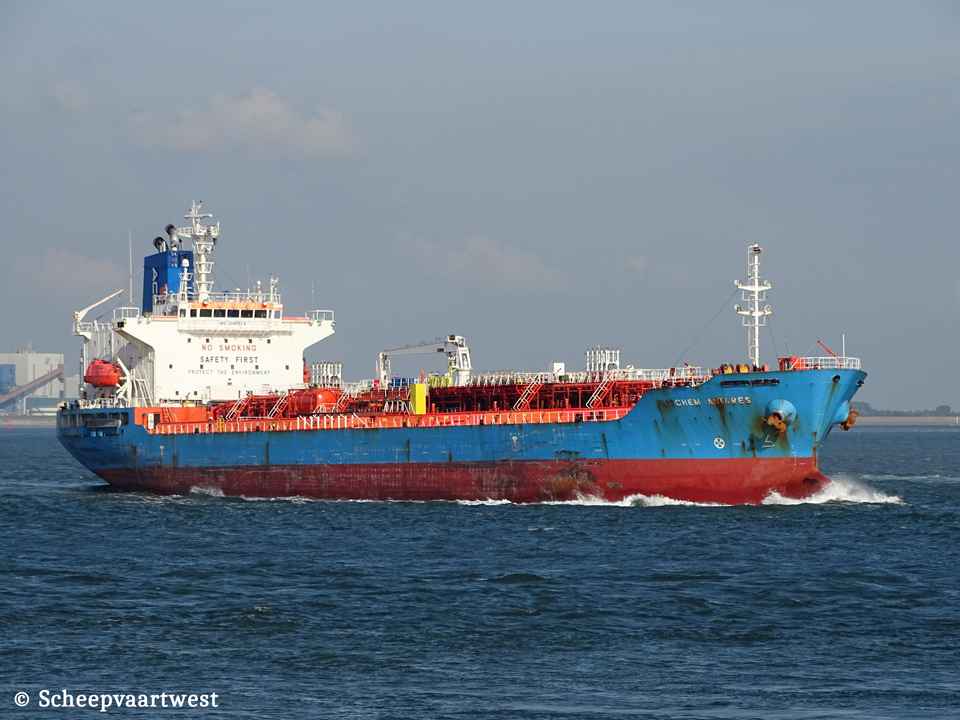

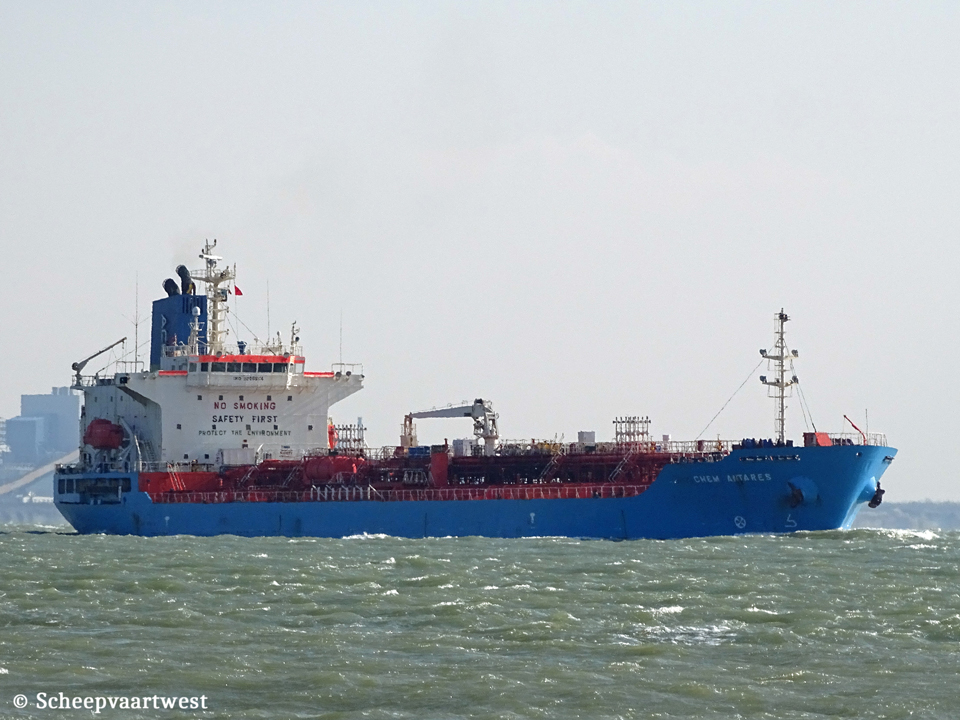

| Antwerpen 26/04/19 | Antwerpen 26/04/19 | Antwerpen 26/04/19 | Westerschelde 01/08/19 | Westerschelde 28/02/18 | ||||
|
Name |
CHEM ANTARES |
|
Previous names |
2004 - 12/2009 Fairchem Unicorn 12/2009 - 05/2010 Sanon |
|
Type |
Chemical and oil product carrier |
|
IMO-number |
9286554 |
|
Call sign |
D5KW9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
20041 - 2016 Marshall Islands, Majuro |
|
GT |
11.580 t registered |
|
DWT |
Summer: 19.817 t |
|
NT |
6.259 t registered |
|
Length |
144,03 m overall |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,54 m |
|
Moulded L x B x D |
136,00 x 24,20 x 12,80 m |
|
Registered L x B x D |
136,41 x 24,20 x 12,80 m |
|
Freeboard |
Summer: 3.295 mm |
|
Depth |
12,80 m moulded |
|
Speed |
16,2 knots |
|
Built |
2004 |
|
Keel laid |
25/03/2004 |
|
Launch date |
22/07/2004 |
|
Date of completion |
21/10/2004 |
|
Builder |
Fukuoka Shipbuilding Co., Ltd. Fukuoka Japan |
|
Yard number |
1237 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S42MC - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 6.150 kW / 8.730 bhp at 136,0 rpm Manufacturer: Makita Corporation Ltd. |
|
Propeller shaft |
1x Oil lubrications shaft without monitoring device Diameter: 430 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,3 bar Evaporation: 15,94 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Yanmar 6N18L-EV diesel generatorsets each 550 kW |
|
Number of tanks |
22 |
|
Cargo tank capacity |
22.093 m³ |
|
Tank capacities |
Fuel oil: 1.075 m³ Fresh water: 930 m³ |
|
Lifting equipment |
1x Crane - SWL 0,9 t 1x Crane - SWL 1,2 t 1x Crane - SWL 2,0 t 1x Crane - SWL 5,0 t |
|
Manager |
ASM Maritime B.V. Strawinskylaan 1979, Tower I, Level 7 1077 XX Amsterdam The Netherlands |
|
Operator |
ACE Ships Management BV Strawinskylaan 1997, Tower I, Level 7 1077 XX Amsterdam The Netherlands |
|
Registered owner |
Chem Antares SA Amsterdam The Netherlands |
|
Renamed |
2022 Lucky Chem Republic of Panama, Panama City - Call sign: 3E2536 |
|
Latest data adjustment |
24 January 2023 |
