Westerschelde 23 March 2016 |
 |
 |
 |
 |
|||
| Westerschelde 23/03/16 | Westerschelde 15/08/19 | Westerschelde 12/04/19 | Westerschelde 22/04/18 | |||
|
Name |

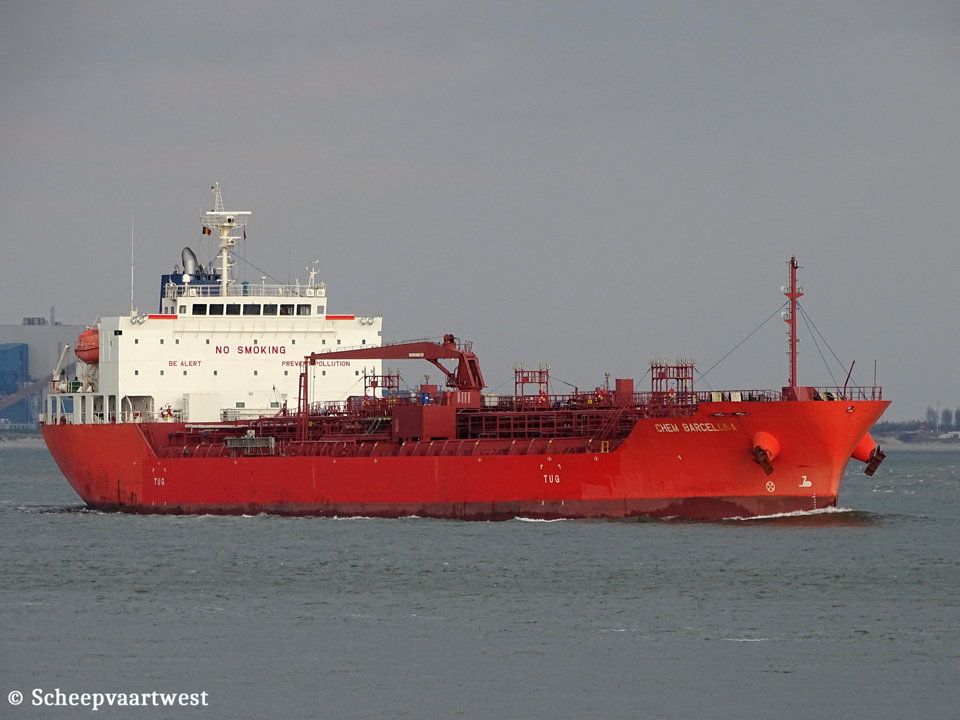

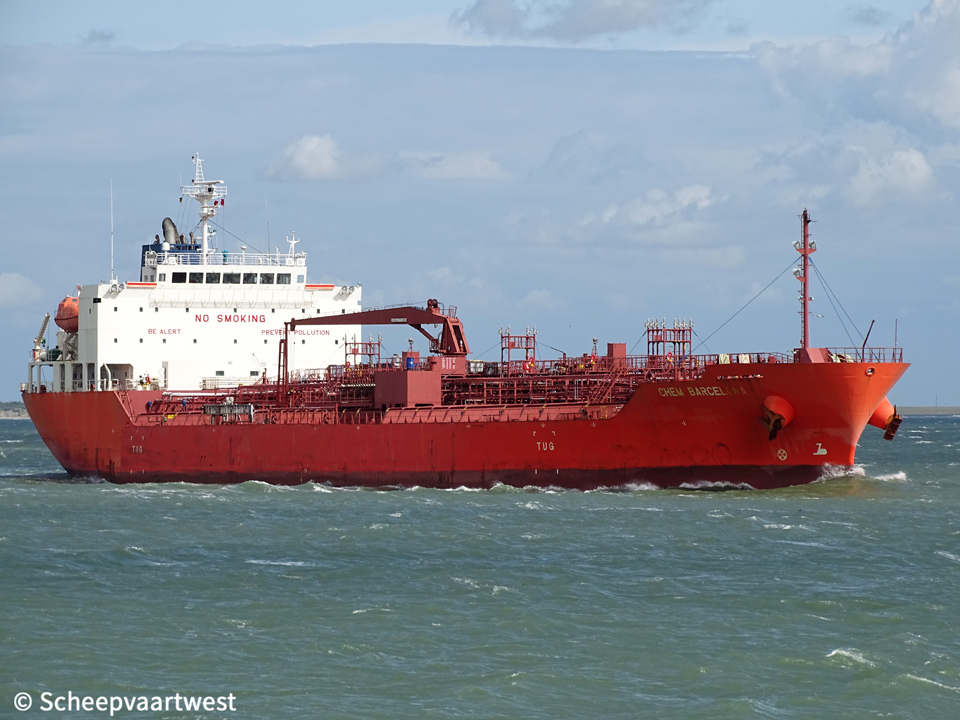

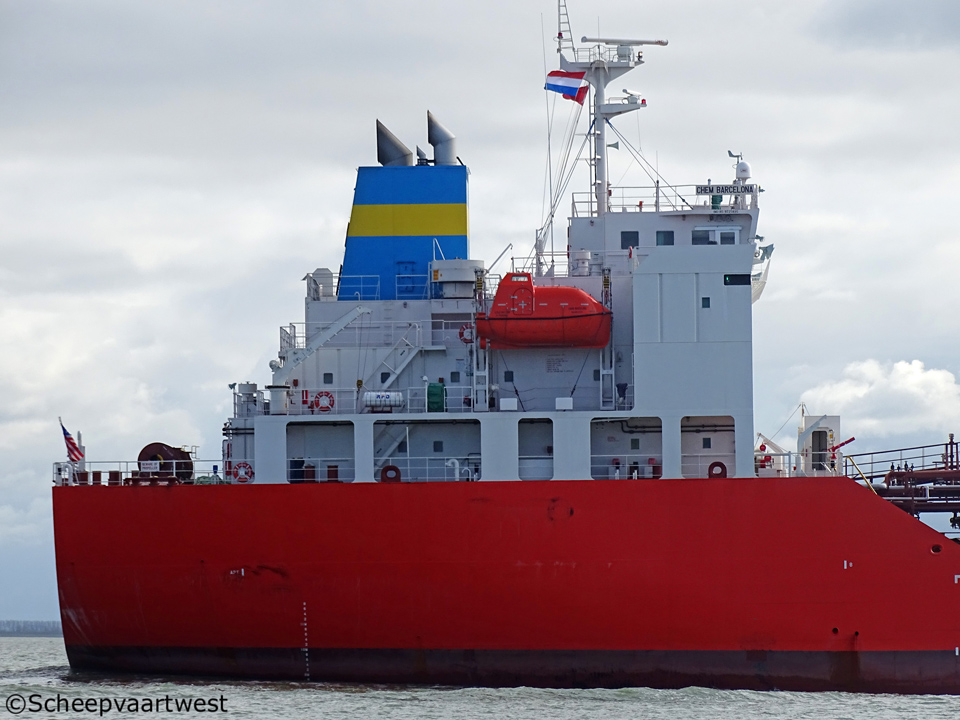

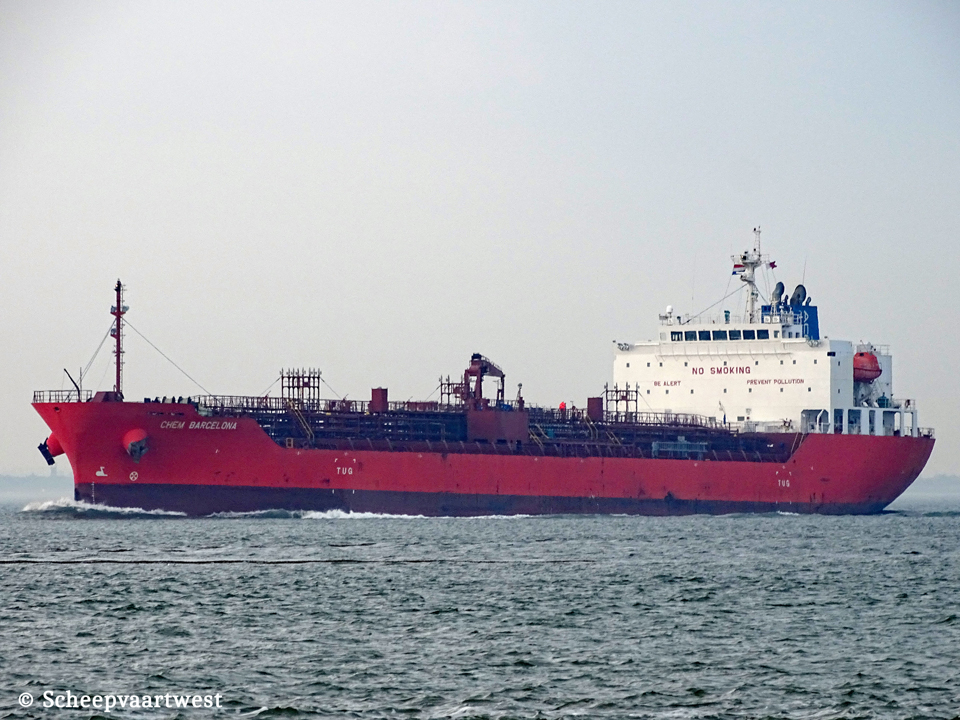

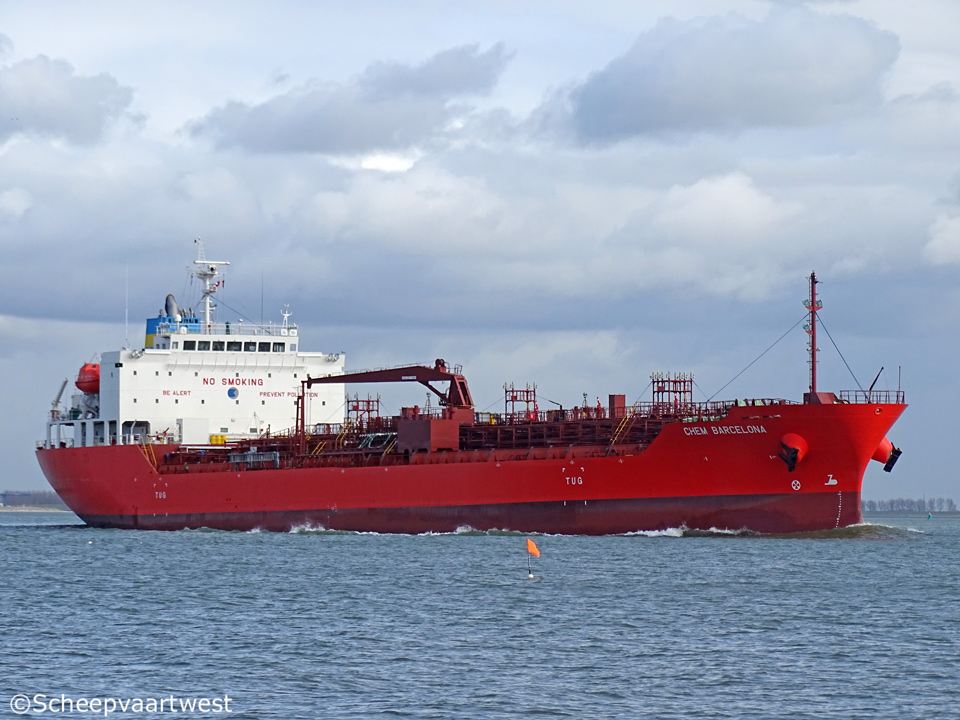

CHEM BARCELONA |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9725835 |
|
Call sign |
D5KK6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
12.148 t registered |
|
DWT |
Summer: 19.996,6 t |
|
NT |
6.203 t registered |
|
Length |
145,00 m overall |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,74 m |
|
Moulded L x B x D |
139,00 x 24,20 x 13,20 m |
|
Registered L x B x D |
139,26 x 24,20 x 13,20 m |
|
Keel to mast end |
37,15 m |
|
Freeboard |
Summer: 3.488 mm |
|
Depth |
13,20 m moulded |
|
Speed |
16,0 knots |
|
Keel laid |
10/06/2015 |
|
Launch date |
29/09/2015 |
|
Date of completion |
07/01/2016 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. Hachinohe Japan |
|
Yard number |
607 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x Mitsubishi 5UEC45LSE-1 - 2 stroke single acting 5 cylinder 450 x 1.840 mm combustion engine 4.900 kW / 6.662 hp at 124,0 rpm Manufacturer: Akasaka Tekkosho KK (Akasaka Diesel Ltd) - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 390 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 124,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 16,03 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 550 kW |
|
Bow thruster |
1x Tunnel thruster 700 kW / 952 bhp, forward |
|
Number of tanks |
20 |
|
Cargo tank capacity 98% |
Liquid: 22,674 m³ |
|
Slop tank capacity |
1.280 m³ |
|
Number of pumps |
20x Cargo pumps each 250 m³/h |
|
Tank capacities |
Fuel oil: 1.136,17 m³ Fresh water: 402,86 m³ Ballast: 7.072 m³ |
|
Crew |
19 |
|
Commercial manager |
Ace Quantum Chemical Tankers Strawinskylaan 1997 1077 Xx Amsterdam The Netherlands |
|
ISM manager |
Fleet Management Limited Hong Kong China |
|
Registered owner |
Chem Barcelona SA - Liberia Care of Ace Quantum Chemical Tankers CV Strawinskylaan 1057 1077 XX Amsterdam The Netherlands |
|
Latest data adjustment |
15 August 2022 |
