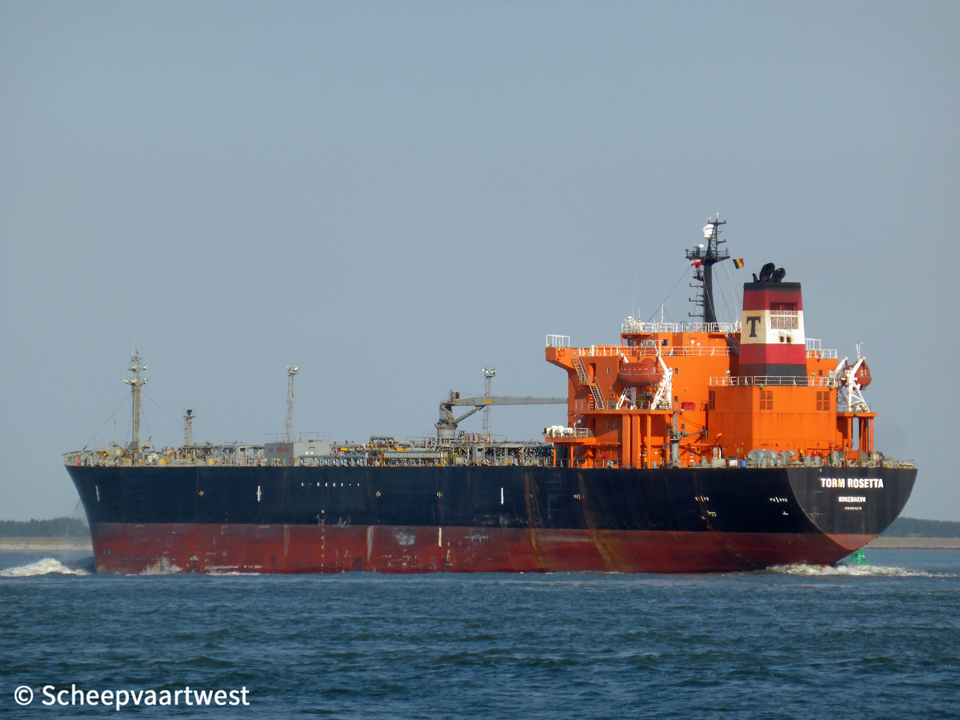

Westerschelde 30 June 2015 |
|
Name |
TORM ROSETTA |
|
Previous names |
03/2003 - 03/2008 Rosetta |
|
Type |
Crude oil tanker |
|
IMO-number |
9254070 |
|
Call sign |
OYNV2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flags |
2003 - 2008 Marshall Islands, Majuro |
|
GT |
28.567 t registered Suez: 29.512 t |
|
DWT |
Summer: 47.015 t |
|
NT |
12.385 t registered Panama: 23.727 t Suez: 26.059 t |
|
Length |
182,50 m overall 172,00 between perpendiculars |
|
Breadth |
32,22 m moulded |
|
Draught |
Max: 12,67 m |
|
Freeboard |
6.464 mm |
|
Depth |
19,10 m moulded |
|
Speed |
15,3 knots |
|
Built |
2003 |
|
Keel laid |
25/06/2002 |
|
Launch date |
08/11/2002 |
|
Delivery date |
28/03/2003 |
|
Builder |
Onomichi Dockyard |
|
Yard number |
490 |
|
Hull material |
High strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 1 Water tight: 1 Oil tight: 13 |
|
Main engine |
1x Mitsui/Man B&W 6S50MC - 6 cylinder 500 x 1.910 mm combustion engine 8.561 kW / 11.640 hp at 127,0 rpm Manufacturer: Mistui Engineering & Shipbuilding Co., Ltd. |
|
Propellers |
1x Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
Exhaust gas economizer - 22,0 bar Manufacturer: Osaka Boiler Co., Ltd. Auxiliary water tube boiler - 18,0 bar Manufacturer: Mitsubishi Heavy Ind. Nagasaki Works |
|
Generators |
3x Main diesel generatorsets each 480 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Number of cargo tanks |
15 |
|
Cargo tank capacity 100% |
Liquid: 51.489 m³ |
|
Number of slop tanks |
2 |
|
Pumps |
4x Cargo pumps each 1.000 m³/h |
|
Number of tanks |
Ballast : 16 Fuel oil: 5 Waste water: 4 Fresh water: 3 Diesel oil: 3 Lubricating oil: 2 Chain: 2 Permanent ballast: 1 Sludge: 1 |
|
Tank capacities |
Diesel oil: 132,1 m³ Freshwater: 451,6 m³ Fuel oil: 878,5 m³ Tank ballast: 21.354,4 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t Manufacturer: Mitsubishi Heavy Industry 1x Provision crane - SWL 2,0 t Manufacturer: Mansei Industry |
|
Manager |
Torm A/S |
|
Operator |
Torm A/S India |
|
Registered owner |
Vesselco 1 K/S |
|
Latest data adjustment |
25 March 2019 |
