Torm Saone - IMO 9295323

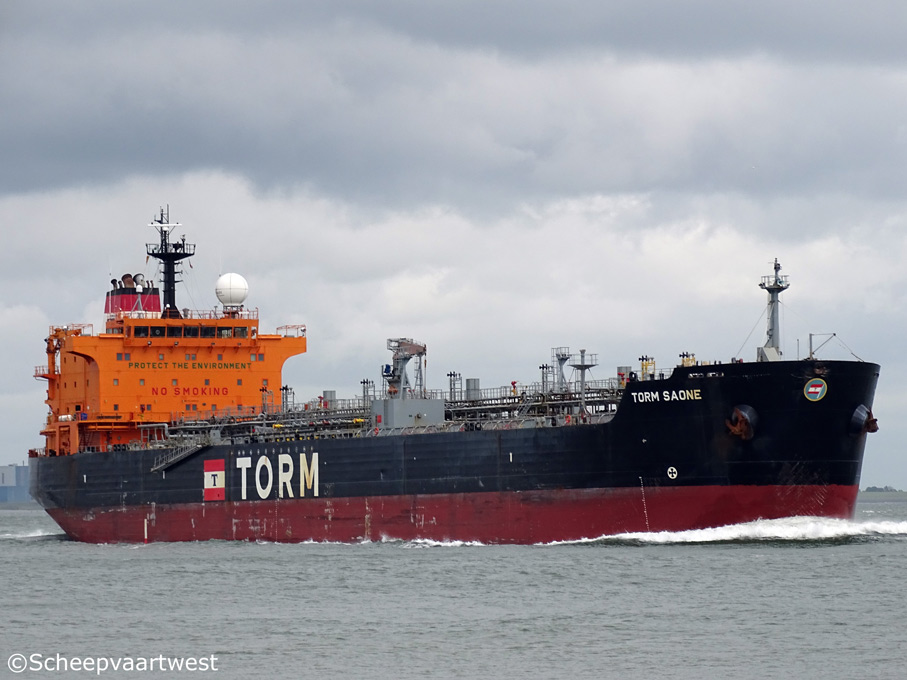

Westerschelde 28 June 2016

Name

TORM SAONE

Previous names

2004 - 10.2007 Saone

Type

Oil and chemical tanker

IMO-number

9295323

Call sign

OYMM2

Flag

Denmark

Port of registry

København

GT

23.246 t

Suez: 24.313,36 t

DWT

Summer: 36.986 t

NT

10.126 t

Seuz: 20.859 t

Panama: 10.126

Length

182,53 m overall

175,00 m between perpendiculars

Breadth

27,38 m extreme

Draught

11,22 m

Keel to masthead

46,96 m

Air draft

Light ship: 44,49 m

Normal ballast: 38,32 m

At loaded summer deadweight: 35,74 m

Freeboard

Summer: 5.514 mm

Winter: 5.747 mm

Depth

16,70 m moulded

Speed

13,0 knots ballast

13,5 knots laden

Built

2004

Keel laid

27.02.2004

Launch date

27.05.2007

Date of completion

23.07.2007

Builder

Hyundai Mipo Dockyard Co., Ltd.
Ulsan
South Korea

Yard number

0258

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 8

Longitudinal: 3

Main engine

1x Hyundai MAN B&W 7S 50 MC-C MK7 - 7 cylinder diesel engine 11.137 kW

Propellers

1

Boilers

1x Auxiliary boiler, exhaust gas heated

1x Auxiliary boiler, oil/gas fired

Builder: KangRim Industries. Co., Ltd.

Generators

3x Hyundai Himsen 5H21/32 diesel generatorsets each 780 kW

Emergency generator

1x Cummins LTA-10-D(M) diesel generatorset

Bow thruster

1.222 bhp

Number of cargo tanks

12

Cargo tank capacity 98%

Seg#1: 6.016,8 m³ (1 P & S)
Seg#2: 7.186,0 m³ (2 P & S)
Seg#3: 7.170,2 m³ (3 P & S)
Seg#4: 7.194,8 m³ (4 P & S)
Seg#5: 7.170,2 m³ (5 P & S)
Seg#6: 6.340,4 m³ (6 P & S)
Seg#7: 878,0 m³ (Slop (P +S))

Number of slop tanks

2

Slop tank capacity

878 m³

Pumps

10x Submerged fixed centrifugal cargo pumps each 500 m³/h

2x Submerged fixed centrifugal cargo pumps each 320 m³/h

2x Submerged fixed centrifugal cargo pumps each 150 m³/h

2x Framo ballast pumps each 750 m³/h

Manifolds

Bow to centre manifold: 98,18 m

Stern to centre manifold: 90,82 m

Distance bridge front to centre of manifold: 56,71 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.400 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 1.100 mm

Distance main deck to centre of manifold: 2.100 mm

Tank capacities

Ballast: 18.490 m³

Fuel oil: 962,98 m³
Gas oil: 387,44 m³

Anchor equipment

Length: 605,00 m

Diameter: 66 mm

Lifting equipment

1x Crane - SWL 10,0 t

Manager

Torm A/S
Tuborg Havnevej 18
DK-2900 Hellerup
Denmark

Commercial operator

Torm A/S
Tuborg Havnevej 18
DK-2900 Hellerup
Denmark

Technical operator

Torm A/S
Tuborg Havnevej 18
DK-2900 Hellerup
Denmark

Disponent owner

Torm A/S
Tuborg Havnevej 18
DK-2900 Hellerup
Denmark

Registered owner

VesselCo 3 K/S
c/o Torm A/S Tuborg Havnevej 18
2900, Hellerup
Denmark

Latest data adjustment

17 July 2016
