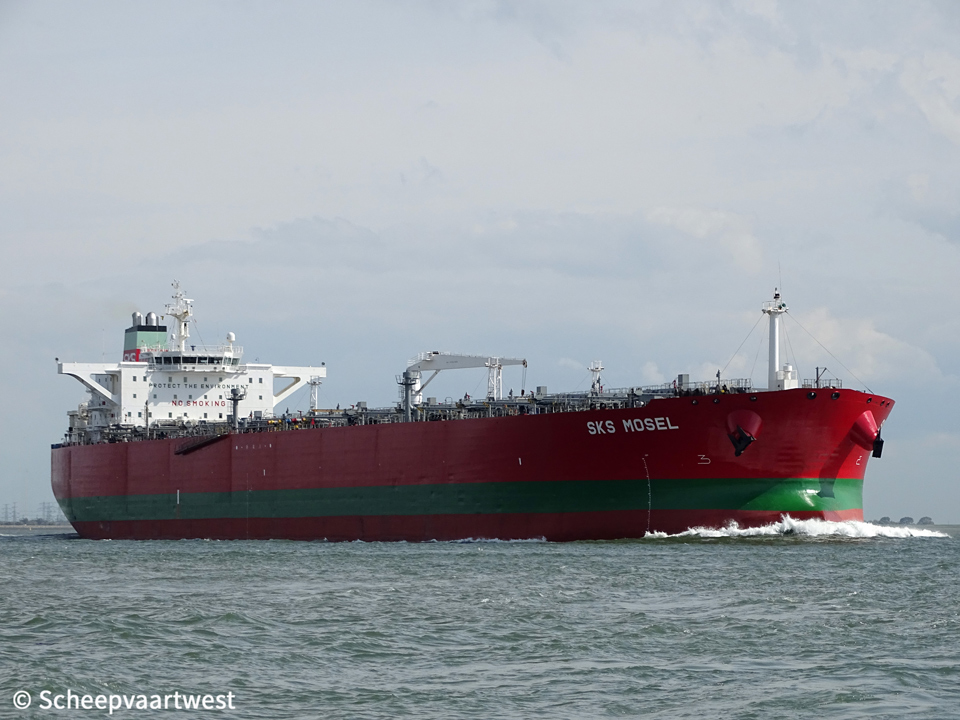

SKS Mosel 03

Westerschelde 10 September 2018

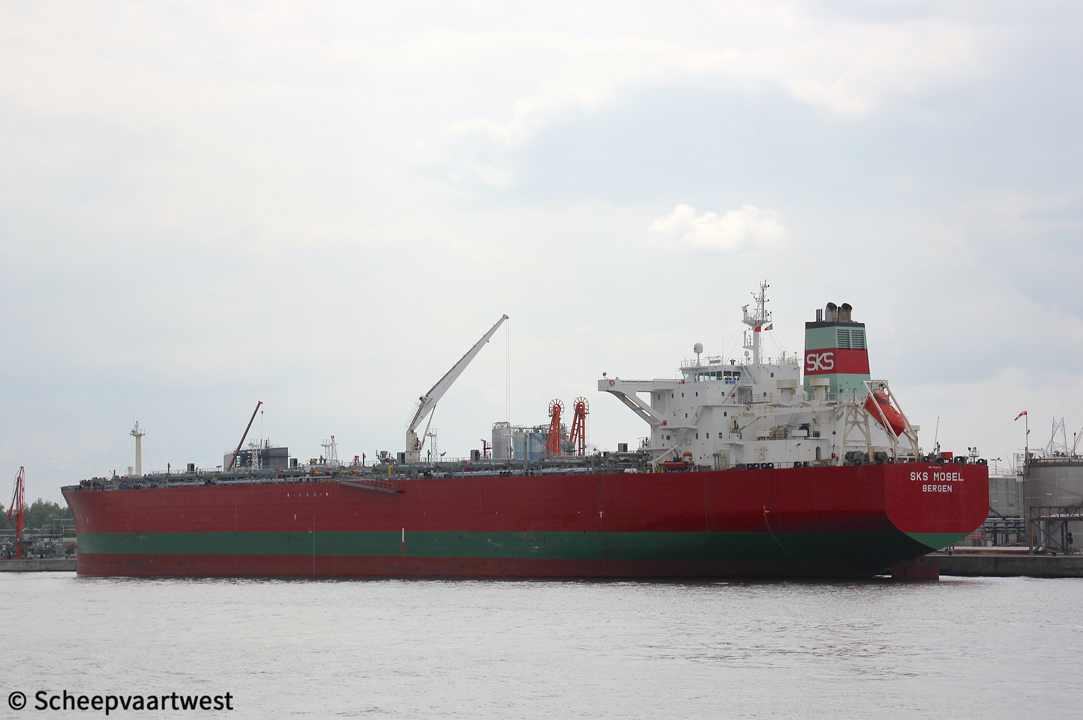

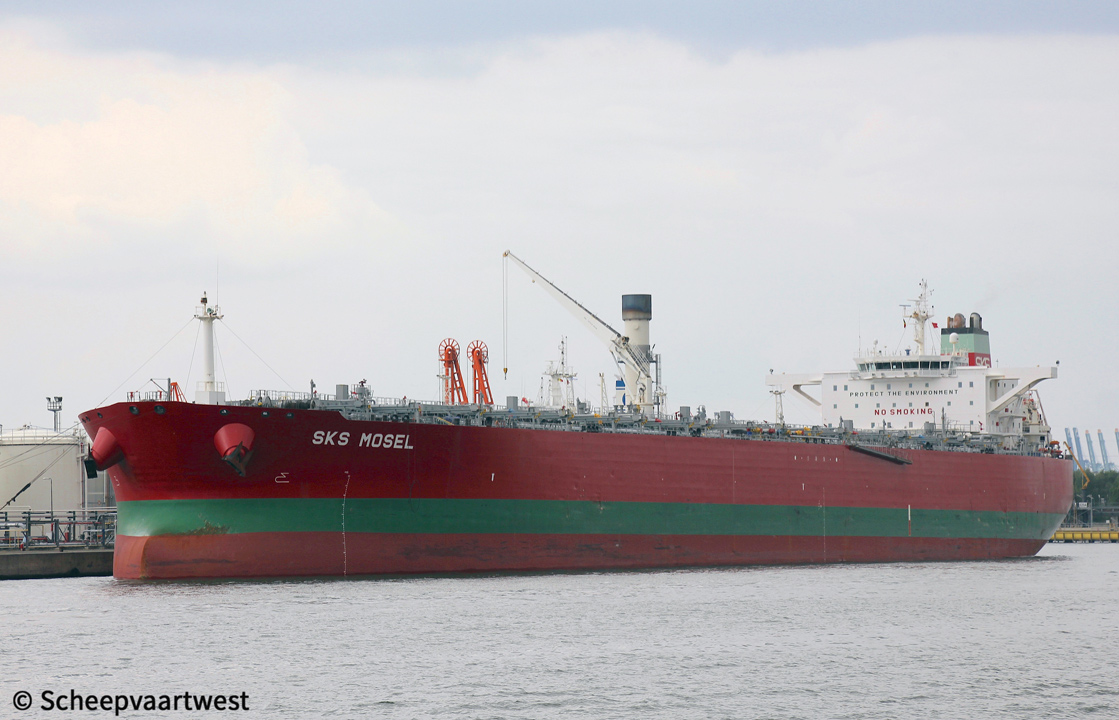

SKS Mosel 01   SKS Mosel 02
Antwerpen 07/05/19   Antwerpen 07/05/19



Name

SKS MOSEL

Type

Oil tanker/Ore/ bulk

IMO-number

9240433

Call sign

LAXB5

Flag

Norway

Port of registry

Bergen

GT

70.933 t registered

DWT

Summer: 120.670 t

NT

33.583 t registered

Length

249,97 m overall

239,00 m between perpendiculars

Breadth

44,04 m extreme

Draught

Max: 15,72 m

Keel to mast end

48,66 m

Depth

23,20 m

Speed

12,0 knots laden

Economic: 10,0 knots laden

Built

2003

Keel laid

10/12/2002

Launch date

09/03/2003

Date of completion

10/06/2003

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

1424

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 12

Longitudinal: 2

Main engine

1x Hyundai/MAN-B&W 5S70MC-C - 5 cylinder combustion engine 19.460 bhp at 91,0 rpm

Manufacturer: Hyundai Engine & Machinery Co., Ltd.(B&W), Ulsan - South Korea

Propellers

1x Mono-block propeller

Boilers

Auxiliary boiler, exhaust gas heated

Manufacturer: KangRim Industries. Co., Ltd.

Auxiliary boiler, oil/gas fired

Manufacturer: Aalborg Industries A/S

Generators

3X MAN-B1W 8L23/30 main diesel generatorsets

Emergency generator

1x Cummins 6CTA 8.3 diesel generatorset

Cargo tank capacity 98%

132.168 m³ excl. slops

Slop tank capacity 98%

1.471,2 m³

Total tank capacity 98%

133.639,2 m³

Segregation

3

Pumps

9x Framo deepwell cargo pumps each 1.800 m³/h

Manifolds

Bow centre manifolds: 122,87 m

Number of holds

9

Cargo hold capacity

Grain: 134.865 m³

Number of hatches

9

Hatch 1: 10,25 m long x 15,12 m wide

Hatches 2/4/5/7/8: 12,30 m long x 20,16 m wide

Hatches 3/9: 11,275 m long x 20,16 m wide

Hatch 6: 10,25 m long x 20,16 m wide

Hatch covers type

Hydraulic side-rolling

Pumps

9x Framo deepwell cargo pumps each 1.800 m³/h

Tank capacities

Ballast: 69.816,2 m³

Anchor equipment

Length: 742,50 m

Diameter: 95 mm

Lifting equipment

1x Crane - SWL 15,0 t

Manager

OSM Bergen Tank AS

Sandsliåsen 46

5254 Sandsli

Norway

Registered owner

Jebsen Group AS

Zander Kaaes Gate 7

5015 Bergen

Norway

Group

SKS - Part of Kristian Gerhard Jebsen Group

Zander Kaaes gate 7

5015 Bergen

Norway

Latest data adjustment

08 November 2020
