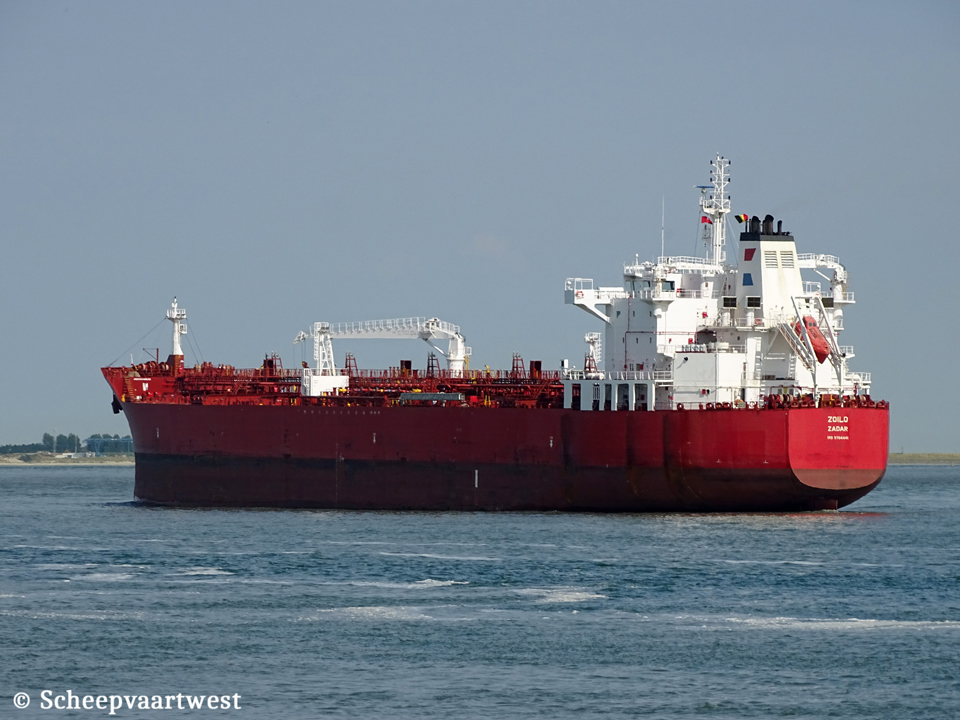

Westerschelde 14 May 2019 |
 |
 |
 |
 |
|||
| Antwerpen 16/10/18 | Antwerpen 31/12/19 | Antwerpen 31/12/19 | Westerschelde 23/05/19 | |||
|
Name |
ZOILO |
|
Type |
Chemical & Oil product tanker |
|
IMO-number |
9704441 |
|
Call sign |
9A2581 |
|
Flag |
Croatia (Republika Hrvatska) |
|
Port of registry |
Zadar |
|
GT |
29.785 t |
|
DWT |
Summer: 49.990 t |
|
NT |
13.224 t Suez: 27.515 t |
|
Light ship |
10.623 t |
|
Length |
183,12 m overall 174,00 m between perpendiculars |
|
Breadth |
32,24 m |
|
Draught |
Max: 13,33 m |
|
Keel to mast end |
48,30 m |
|
Freeboard |
6.095 mm |
|
Depth |
19,40 m |
|
Speed |
Service: 14,5 knots |
|
Built |
2015 |
|
Keel laid |
29/11/2013 |
|
Date of completion |
27/07/2015 |
|
Builder |
Hyundai Mipo Dockyard Co. Ltd. Ulsan South Korea |
|
Yard number |
2472 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 6G50ME-9.3 - 2 stroke single acting 6 cylinder 500 x 2.500 mm combustion engine 8.090 kW / 10.992 hp at 120,0 rpm Builder: Hyundai M&W, HHI-EMD, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Combined boiler - 9,0 bar 1x Oil fired boiler - 9,0 bar |
|
Generators |
3x Main diesel generatorsets each 1.000 kVA - 800 kW - 1.087 hp |
|
Emergency generator |
1x Diesel generatorset 150 kVA - 120 kW - 163 hp |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
54.816 m³ |
|
Number of tanks |
12 + 2 slop tanks |
|
Tank capacities |
Fuel: 1.923,4 m³ |
|
Number of pumps |
12x cargo pumps each 600 m³/h |
|
Anchor equipment |
Length: 632,50 m Diameter: 73 mm |
|
ISM & commercial manager |
Tankerska Plovidba d.d. Božidara Petranovića 4 Zadar Republika Hrvatska (Croatia) |
|
Operator |
Tankerska Plovidba d.d. |
|
Registered owner |
Zoilo Shipping LLC c/o Trust Company Complex Ajeltake road Ajeltake island Majuro Marshall Islands |
|
Latest data adjustment |
24 February 2022 |
