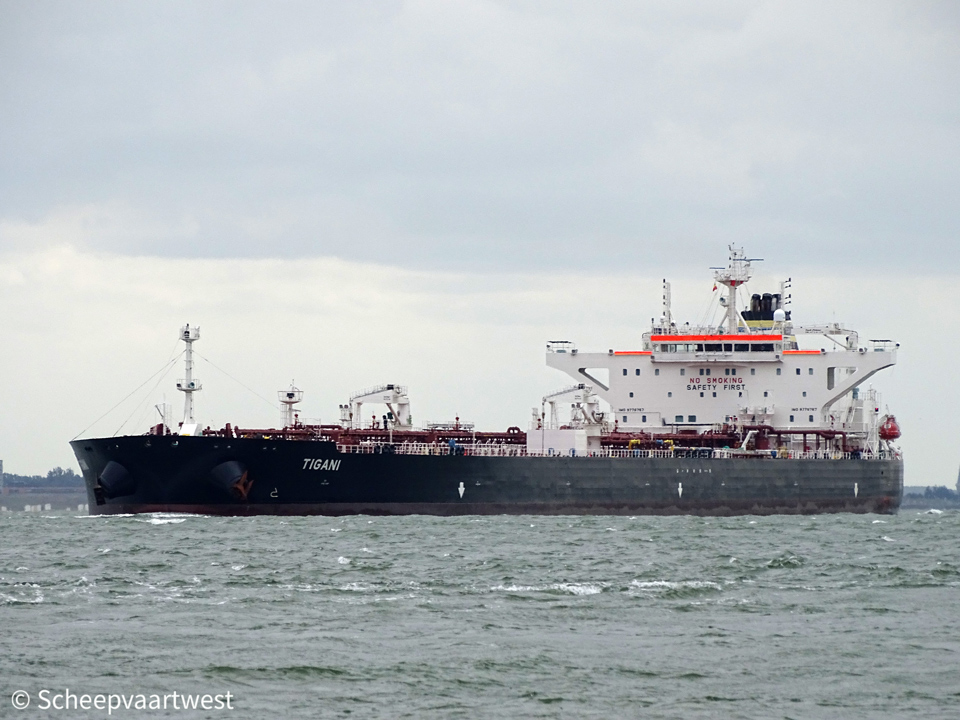

Tigani 02

Westerschelde 27 August 2018

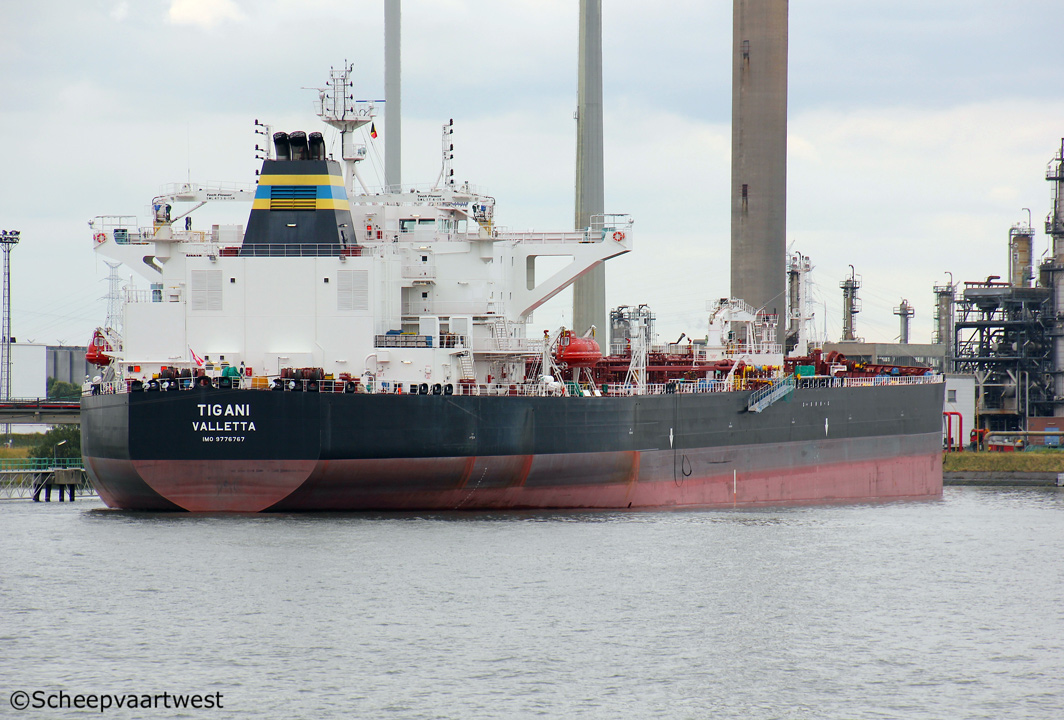

Tigani 01
Antwerpen 28/08/18


Name

TIGANI

Type

Crude and oil products carrier

IMO-number

9776767

Call sign

9HA4402

Flag

Malta

Port of registry

Valletta

GT

61.468 t registered

Suez: 63.388,15 t

DWT

112.886,8 t

NT

35.718 t registered

Suez: 57.500,43 t

Length

249,87 m overall

243,00 m between perpendiculars

Breadth

43,86 m

Draught

15,12 m

Freeboard

6.119 mm

Depth

21,20 m moulded

Speed

Max: 16,1 knots

Built

2017

Keel laid

22/12/2015

Launch date

04/02/2017

Date of completion

24/02/2017

Builder

Samsung Heavy Industries Co., Ltd.
South Korea

Yard number

SN2164

Hull material

High strength steel

Hull type

Double hull

Bulkheads

Water tight: 1

Oil tight: 10

Main engine

1x Hyundai/MAN B&W 6G60ME-C9.5 - 6 cylinder 600 x 2.790 mm combustion engine 14.280 kW at 86,2 rpm

Propellers

1x Fixed pitch propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

2x Auxiliary boiler - 18,0 bar

1x Composite boiler - 9,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Main diesel generatorsets each 1.000 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12

Cargo tank capacity

100%: 130.376 m³

98%: 127.650 m³

Number of slop tanks

2

Pumps

3x Cargo pumps each 3.000 m³/h

Number of tanks

Ballast: 15

Lubricating oil: 11

Fuel oil: 8

Diesel oil: 4

Sludge: 4

Fresh water: 3

Chain: 2

Waste water: 2

Fixed ballast liquid: 1

Tank capacities 100%

Diesel oil: 471,8 m³

Freshwater: 412,7 m³

Fuel oil: 2.520,3 m³

Lube oil: 179,4 m³

Tank ballast: 39.556,1 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose Handling Crane With Personnel Lifting (Port) - SWL 15,0 t

1x Hose Handling Crane With Personnel Lifting (Starboard) - SWL 15,0 t

1x Provision Crane (Port) - SWL 4,0 t

1x Provision Crane (Starboard) - SWL 1,0 t

Manufacture: Tech Flower Co., Ltd.

Manager

TMS Tankers Ltd.
80, Kifissias Av.
GR-15125 Amaroussion
Greece

Operator

Gregale Owners Inc.
Trust Company Complex, Ajeltake Road
Ajeltake Island
Majuro, MH 96960
Marshall Islands

Registered owner

Gregale Owners Inc.

Latest data adjustment

23 September 2018
