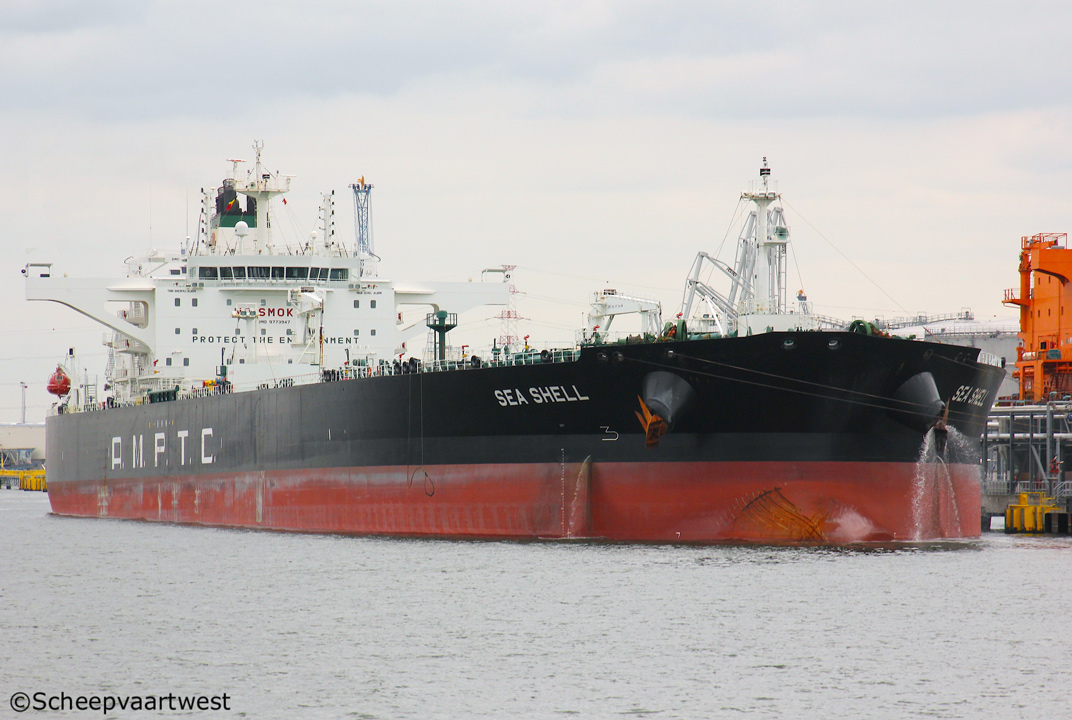

Sea Shell 01

Antwerpen 28 August 2018

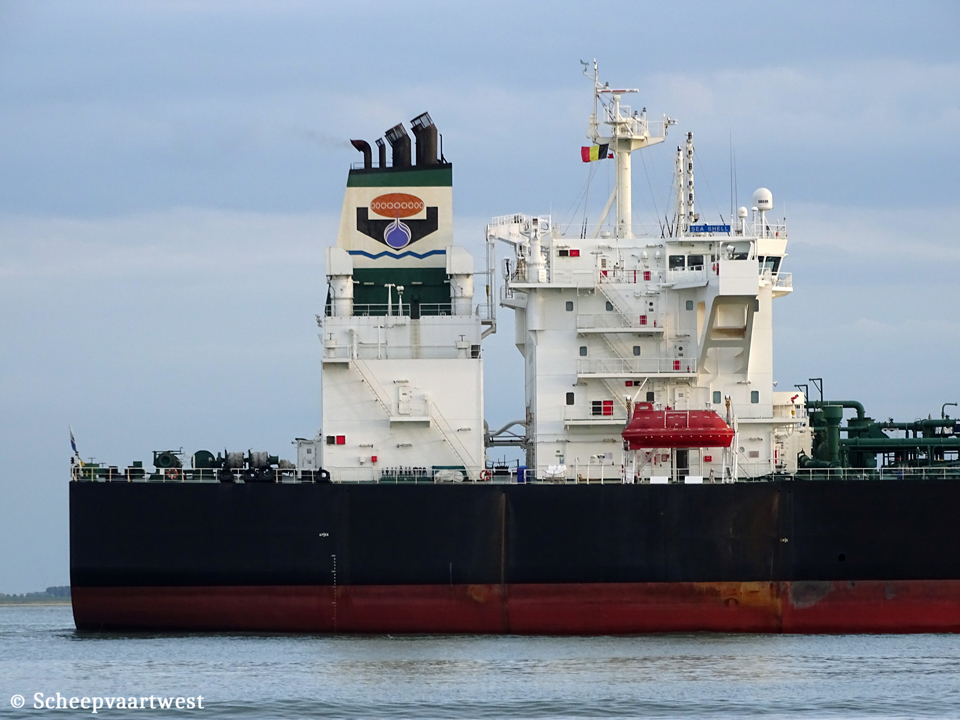

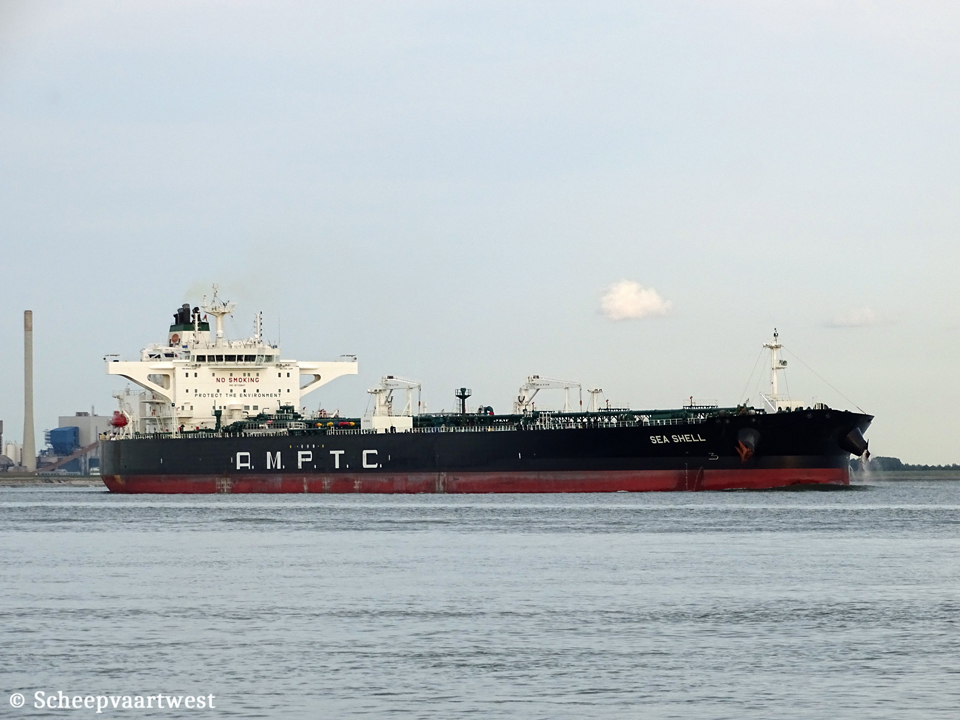

Sea Shell IMO 9773947 02   Sea Shell IMO 9773947 03
Westerschelde 30/08/18   Westerschelde 30/08/18













Name

SEA SHELL

Type

Crude oil tanker - Suezmax

IMO-number

9773947

Call sign

3EIY4

Flag

Republic of Panama

Port of registry

Panama City

GT

81.431 t registered

Suez: 82.286,29 t

DWT

158.409 t

NT

51.969 t registered

Panama: 72.789 t

Suez: 75.562,88 t

Length

274,20 m overall

263,60 m between perpendiculars

Breadth

48,00 m moulded

Draught

Summer: 17,15 m

Keel to mast end

51,94 m

Freeboard

6.679 mm

Depth

23,10 m moulded

Speed

14,5 knots

Build

2016

Keel laid

27/06/2016

Launch date

11/09/2016

Delivery date

15/12/2016

Builder

Hyundai Samho Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

S825

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Oil thigh: 6

Main engine

1x Hyundai/Wärtsilä W6X72 - 2 stroke single acting 6 cylinder 720 x 3.086 mm combustion engine 15.080 kW / 20.503 hp at 74,7 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Composite boiler - 8,0 bar

2x Auxiliary Boiler - 18,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Hyundai/Himsen 6H21/32 main diesel generatorsets each 1.280 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12 + 2 slop tanks

Cargo tank capacity 100%

169.044,4 m³

Number of pumps

3x Cargo pumps each 4.000 m³/h

Number of tanks

Ballast: 14

Fuel oil : 5

Lubricating oil: 5

Diesel oil: 5

Waste water: 4

Slop: 3

Fresh water: 2

Chain: 2

Chemical: 1

Sludge: 1

Tank capacities 100%

Diesel oil: 811,7 m³

Fresh water: 469.9 m³

Fuel oil: 2.342,5 m³

Lube oil: 228;7 m³

Tank ballast: 52.807,1 m³

Lifting equipment

1x Engine room overhead crane - SWL 7,5 t

1x Hose handling crane port - SWL 15,0 t

1x Hose handling crane STBD - SWL 15,0 t

1x Provision crane Port - SWL 2,0 t

1x Provision crane STBD - SWL 2,0 t

ISM & commercial manager

A.M.P.T.C. - Arab Maritime Petroleum Transport Arab Organization Headquarters Building

Airport Road, 13086 Kuwait City

Kuwait

Operator

A.M.P.T.C. - Arab Maritime Petroleum Transport Company

Registered owner

A.M.P.T.C. - Arab Maritime Petroleum Transport Company

Organization Headquarters Building

Airport Road, 13086 Kuwait City

Kuwait

Latest data adjustment

05 June 2022
