Westerschelde 30 September 2017 |
|
Name |

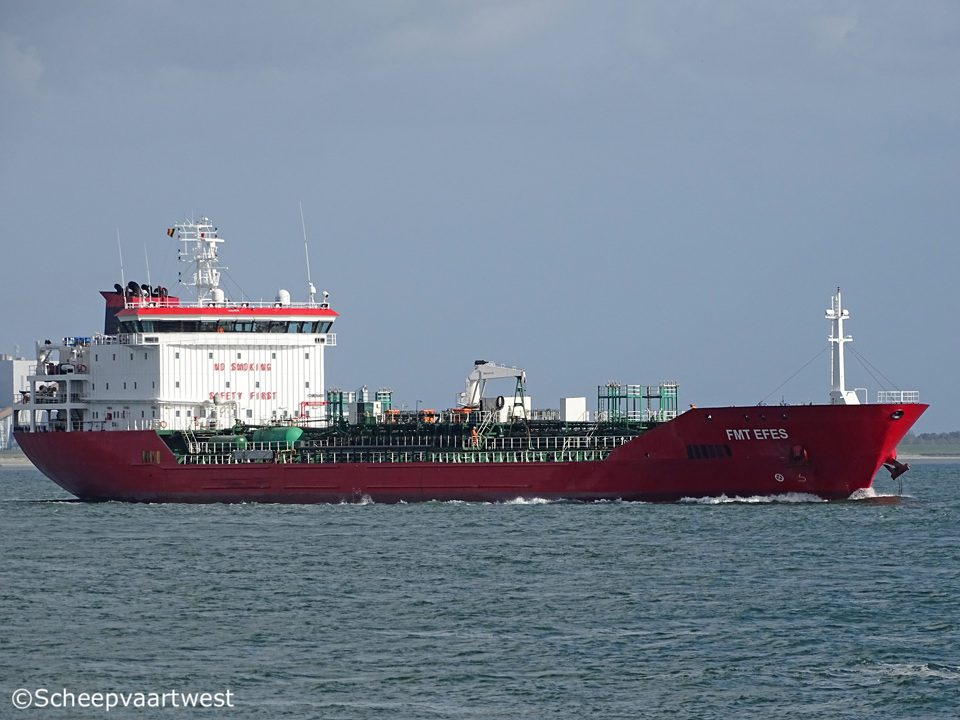

FMT EFES |
|
Previous names |
2009 - 04/2010 Xanthos 04/2010 - 07/2017 Khankendy |
|
Type |
Oil tanker/Chemical tanker |
|
IMO-number |
9427990 |
|
Call sign |
9HA3202 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
8.995 t registered |
|
DWT |
Summer: 14.374 t |
|
NT |
4.523 t registered |
|
Length |
142,98 m overall 134,00 m between perpendiculars |
|
Breadth |
21,70 m |
|
Draught |
6,40 m |
|
Freeboard |
2.417 mm |
|
Depth |
11,10 m moulded |
|
Speed |
15,0 knots |
|
Built |
2009 |
|
Keel laid |
10/04/2008 |
|
Delivery date |
10/03/2010 |
|
Builder |
Celiktekne Sanayii ve Ticaret A.S. |
|
Yard number |
72 |
|
Hull material |
Ordinary strength steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 6S35MC - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 6.037 hp at 173 rpm Manufacturer: MAN Diesel A/S - Denmark |
|
Propellers |
1 Controllable pitch propeller - aft at 173 rpm |
|
Boiler |
2x Auxiliary boilers - 7,0 bat 1x Exhaust gas boiler - 7,0 bar Manufacturer: Euroboilers Garioni Naval |
|
Shaft generator |
1x Leroy Somer 850 kW |
|
Generators |
3x Caterpillar C32 - 4 stroke 12 cylinder 145 x 162 mm diesel engine each 790 kW coupled with Leroy Somer generators each 715 kW / 440 Volt-60Hz |
|
Bow thruster |
1x Tunnel thruster 500kW / 680 bhp |
|
Number of cargo tanks |
15 |
|
Cargo tank capacity |
100%: 15.873,09 m³ 98%: 15.104,27 m³ |
|
Number of slop tanks |
2 |
|
Pumps |
14x Framo cargo pumps each 330 m³/h 1x Framo cargo pump each 110 m³/h |
|
Number of tanks |
Ballast: 15 Fuel oil: 7 Fresh water: 7 Lubricating oil: 7 Diesel oil: 3 Chain: 2 Organic compound: 1 Hydraulic oil: 1 Waste water: 1 Sewage: 1 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 138,14 m³ / 124,32 t Freshwater: 333,85 m³ Hydraulic Oil: 4,82 m³ Fuel oil: 753,7 m³ Lube Oil: 40,08 m³ / 36.07 t Tank Ballast: 5.562,19 m³ / 5.701,24 t |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
25 |
|
Operator |
Marine Tankers Shipmanagement Ltd. |
|
Registered owner |
Thrace Shipping Ltd. |
|
Latest data adjustment |
09 July 2018 |
