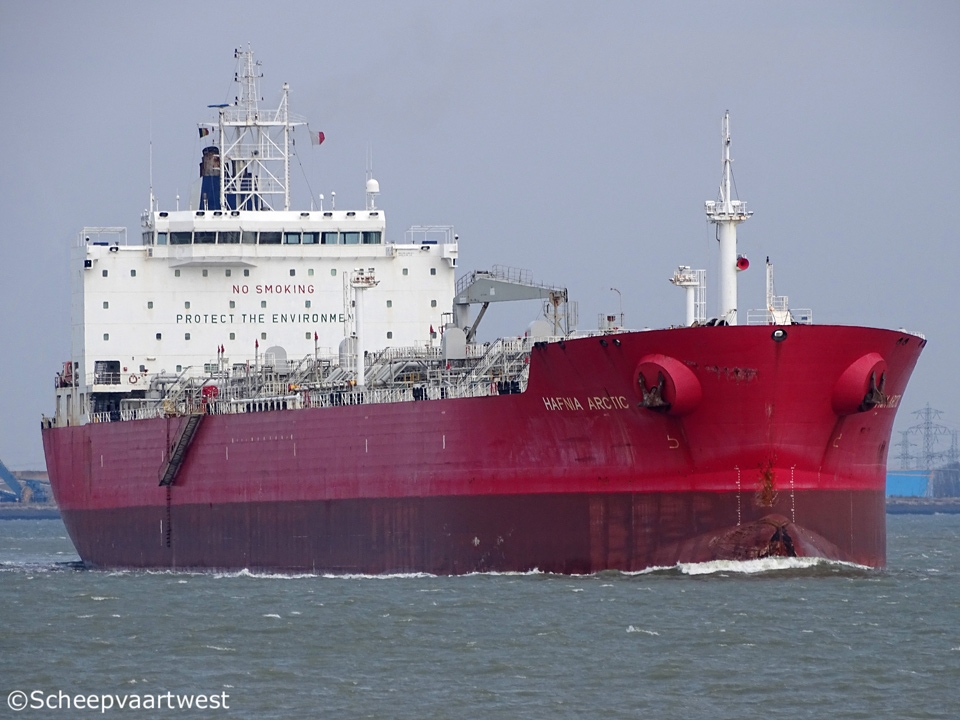

Hafnia Arcitic 01

Westerschelde 18 March 2018



Name

HAFNIA ARCITIC

Type

Oil products tanker

IMO-number

9332640

Call sign

9V3326

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

2009 - 2015 Marshall Islands

GT

42.889 t

Suez: 44.506,08 t

DWT

Summer: 74.910 t

Winter: 72.855 t

NT

22.047 t

Suez: 39.003,29 t

Panama: 35.423 t

Displacement

Winter: 90.230 t

Summer: 88,175 t

Length

228,60 m overall

220,00 m between perpendiculars

Breadth

32,28 m extreme

Draught

Summer: 14,20 m

Winter: 13,90 m

Keel to masthead

53,48 m

Air draft

Summer: 39,58 m

Normal ballast: 46,10 m

Summer deadweight: 39,28 m

Light ship: 50,86 m

Freeboard

Summer: 6,26 m

Winter: 6,59 m

Depth

20,45 m moulded

Speed

16,6 knots

Economic: 13,0 knots

Built

2010

Keel laid

08/11/2008

Launch date

01/04/2009

Date of completion

12/01/2010

Builder

Brodosplit Shipyard Ltd.
Split
Croatia

Yard number

459

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W Brodosplit 6S60 MC-C - 6 cylinder combustion engine 13.560 kW

Propellers

1x Controllable pitch propeller

Boilers

Auxiliary boiler, oil/gas fired

Auxiliary boiler, composite

Manufacturer: TPK NOVA, Zagreb - Croatia

Generators

4x MAN 8L23/30H main diesel generatorsets each 1.040 kW

Emergency generator

1x Caterpillar 3406 diesel generatorset

Number of tanks 98%

12

Total: 91.707,60 m³

Tank capacity 98%

Seg#1: 10.160,9 m³
Seg#3: 14.193.0 m³
Seg#4: 14.193.0 m³
Seg#5: 14.193.0 m³
Seg#6: 14.005,3 m³
Seg#7: 2.250,9 m³

Number of slop tanks

2

Slop tank capacity 98%

2.250,90 m³

Pumps

12x Deepwell Framo cargo pumps 1.000 m³/h each

2x Deepwell Framo cargo pumps 300 m³/h each

2x Vertical centrifugal ballast pumps capacity 1.500 m³/h

Manifolds

Distance bridge front to centre of manifold: 89,80 m

Bow to centre manifold: 112,98 m

Stern to centre manifold: 115,52 m

Distance between cargo manifold centres: 2.500 mm

Distance ships rail to manifold: 4.830 mm

Distance manifold to ships side: 5.100 mm

Top of rail to centre of manifold: 900 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Ballast: 45.785,5 m³

Fuel oil: 2.254,30 m³
Diesel oil: 140 m³

Anchor equipment

Length: 687,50 m

Diameter: 81 mm

Lifting equipment

1x Crane - SWL 15,0 t

Technical operator

Donnelly Tanker Management Ltd.
44-46 Vouliagmenis Avenue 16673
Athens Greece
Greece

Commercial operator

Strait Tankers Pte. Ltd.
3 Anson Road #13-01 Springleaf Tower
Singapore 079909
Republic of Singapore

Registered owner

Hafnia Tankers Shipholding 2 Singapore Pte. Ltd.
159 Telok Ayer Street, Singapore 068614
Republic of Singapore

Latest data adjustment

18 June 2018
