Westerschelde 12 July 2017 |
|
Name |

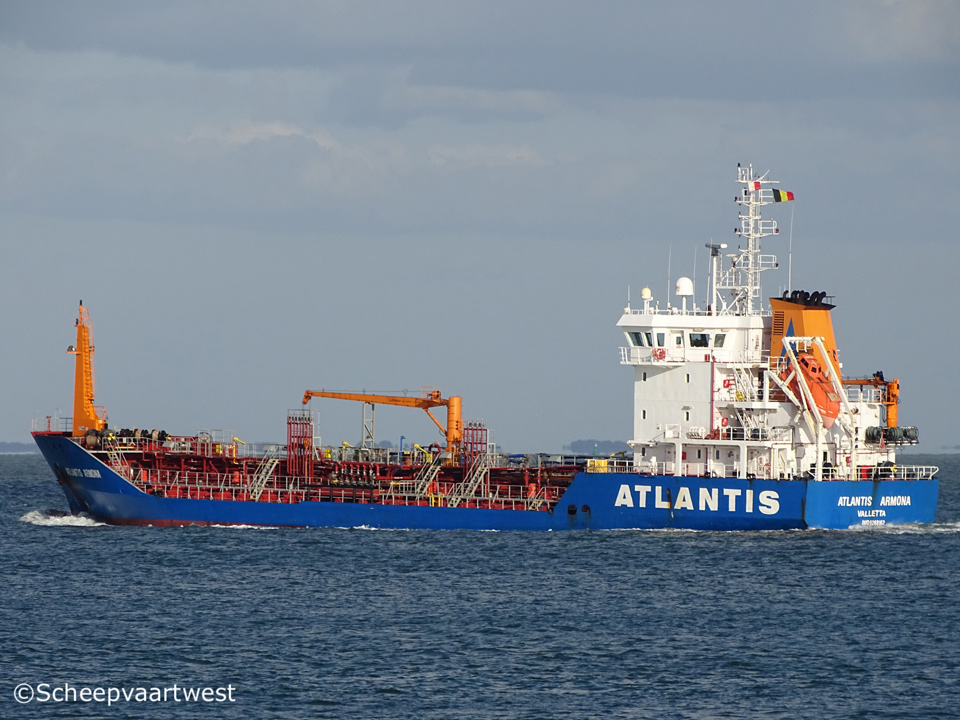

ATLANTIS ARMONA |
|
Previous names |
2004 - 09/2005 Atlantis Armona 09/2005 - 09/2010 Stability |
|
Type |
Oil/Chemical tanker |
|
IMO-number |
9268162 |
|
Call sign |
9HA2518 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2004 - 2005 Turkey 2005 - 2010 United Kingdom, London |
|
GT |
2.603 |
|
DWT |
Summer: 3.517,3 t |
|
NT |
1.140 t |
|
Length |
92,86 m overall 86,65 m between perpendiculars |
|
Breadth |
14,10 m |
|
Draught |
5,70 m |
|
Freeboard |
1.511 mm |
|
Depth |
7,20 m |
|
Speed |
13,5 knots |
|
Built |
2004 |
|
Date of completion |
27/02/2004 |
|
Builder |
Gelibolu Shipyard (Gelibolu Gemi Insa San. VE TIC. A.S.) |
|
Yard number |
023 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25- 4 stroke 6 cylinder 255 x 400 mm diesel engine 1.850 kW / 2.514 hp at 750 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
2x CHO 50,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 450 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
1x 850 kVA - 680 kW |
|
Generators |
3x Main diesel generatorsets each 275 kVA - 220 kW - 426 hp |
|
Emergency generator |
1x Diesel generatorset 138 kVA - 110 kW - 135 hp |
|
Bow thruster |
1x 345 kW |
|
Number of cargo tanks |
10 |
|
Cargo tanks capacity |
4.185 m³ |
|
Segregation |
11x Segregation with double valves |
|
Number of slop tanks |
1 |
|
Pumps |
11x Cargo pumps each 150 m³/h |
|
Tank capacities |
Fuel oil: 205,04 m³ |
|
Crew |
13 |
|
Technical manager |
Armona Shipping Limited |
|
Commercial managers |
Atlantis Tankers |
|
Operator |
Armona Denizcilik A.S |
|
Registered owner |
Armona Shipping Limited |
|
Latest data adjustment |
19 May 2018 |
