Westerschelde02 August 2017 |
 |
 |
||

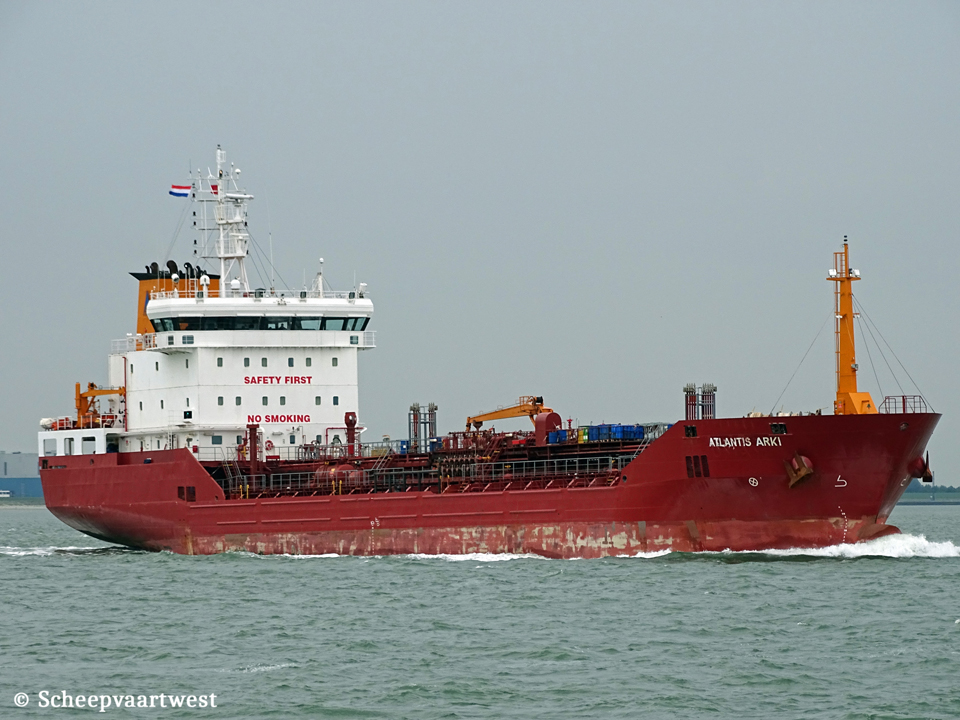

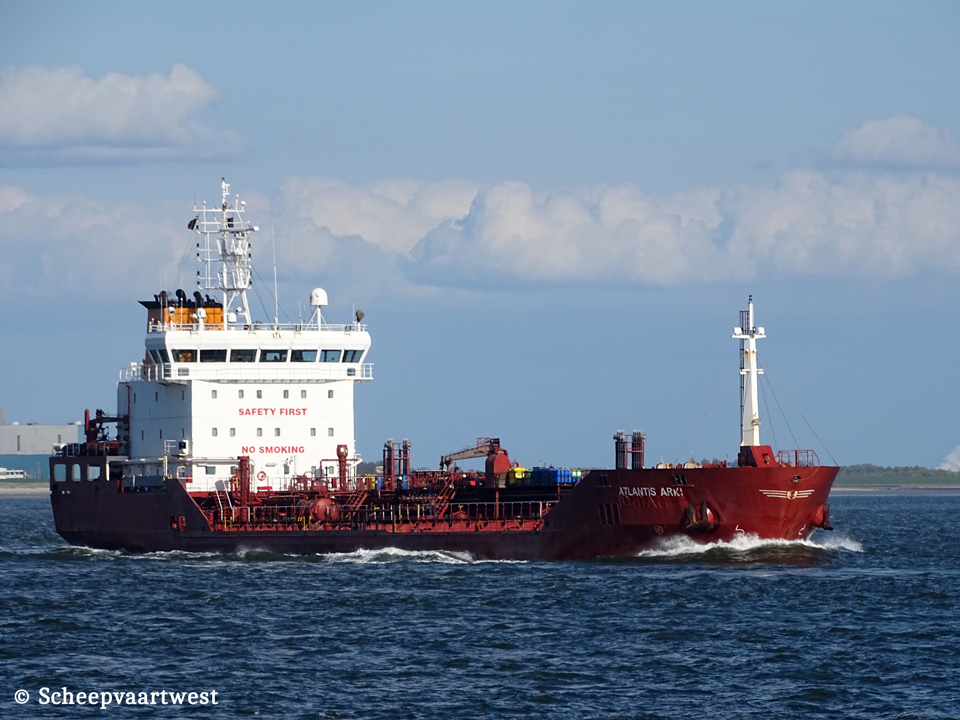

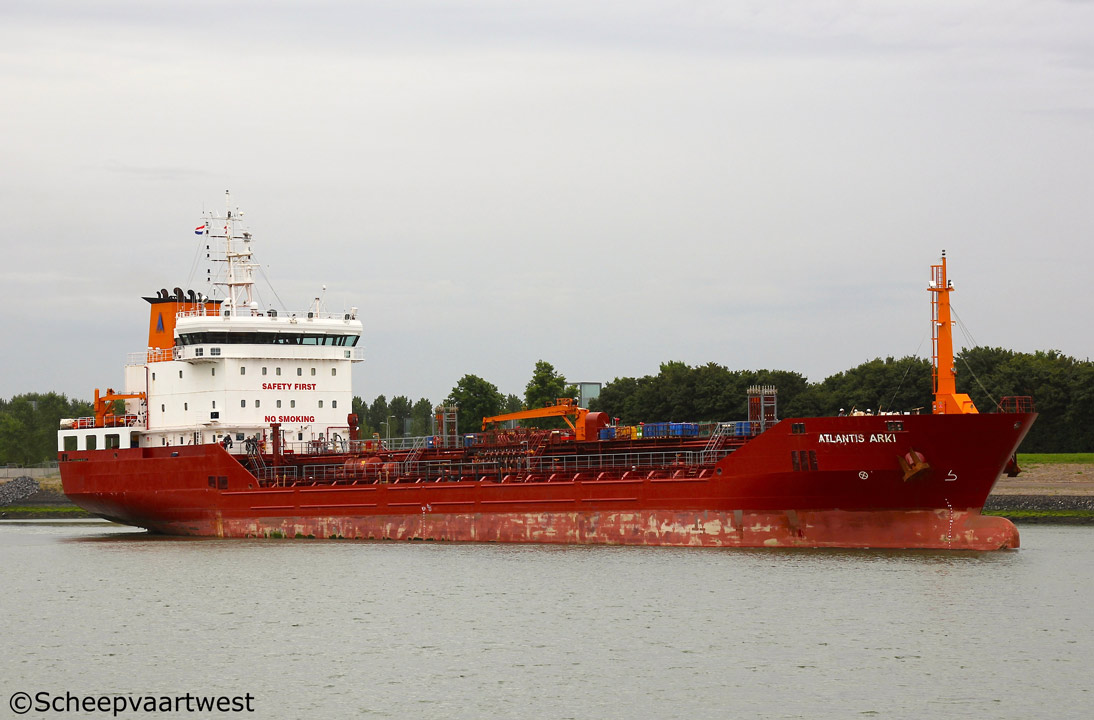

| Westerschelde 23/04/17 | Terneuzen (NL) 23/04/17 | ||
|
Name |
ATLANTIS ARKI |
|
Previous names |
2008 - 06/2012 Ionian 06/2012 - 2017 Ionian Trader |
|
Type |
Tanker for chemicals & Oil products |
|
IMO-number |
9367255 |
|
Call sign |
9HNH9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2008 - 2009 Turkey 2009 - 2012 Malta, Valletta 2012 - 2017 Isle Of Man, Douglas - United kingdom |
|
GT |
3.997 |
|
DWT |
Summer: 6.014,2 t |
|
NT |
1.840 |
|
Length |
109,10 m overall 99,95 m between perpendiculars |
|
Breadth |
16,03 m overall |
|
Draught |
Summer: 6,35 m |
|
Keel to mast end |
34,00 m |
|
Freeboard |
1.510 mm |
|
Depth |
7,25 m |
|
Speed |
13,0 knots |
|
Built |
2008 |
|
Keel laid |
30/03/2007 |
|
Launch date |
01/02/2008 |
|
Date of completion |
23/06/2008 |
|
Builder |
Celiktekne Sanayii ve Ticaret A.S. Tuzla - Istanbul Turkey |
|
Yard number |
63 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-M&W 6L32/40 - 4 stroke 6 cylinder 320 x 400 mm combustion engine 3.000 kW / 4.080 hp at 750 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
3x Caterpillar C18 main diesel generatorsets total 1.200 kW |
|
Emergency generator |
1x Caterpillar 3056T diesel generatorset |
|
Bow thruster |
1x 330 kW |
|
Number of tanks |
12 + 1 slop tank |
|
Cargo tank capacity |
Liquid: 6.532 m³ |
|
Number of pumps |
12x Cargo pumps each 200 m³/h |
|
Coating |
Marine Line coated |
|
Anchor equipment |
Length: 495 m Diameter: 48 mm |
|
Crew size |
21 |
|
Technical manager |
Armona Denizcilik AS Muallim Naci Caddesi No: 47 TR-34347 Ortaköy Beşiktaş / Istanbul Turkey |
|
Commercial managers |
Atlantis Tankers Muallim Naci Caddesi No: 47 TR-34347 Ortaköy Beşiktaş / Istanbul Turkey |
|
Registered owner |
Atlantis Tankers Group Limited Muallim Naci Caddesi No: 47 TR-34347 Ortaköy Beşiktaş / Istanbul Turkey |
|
Latest data adjustment |
17 January 2025 |
