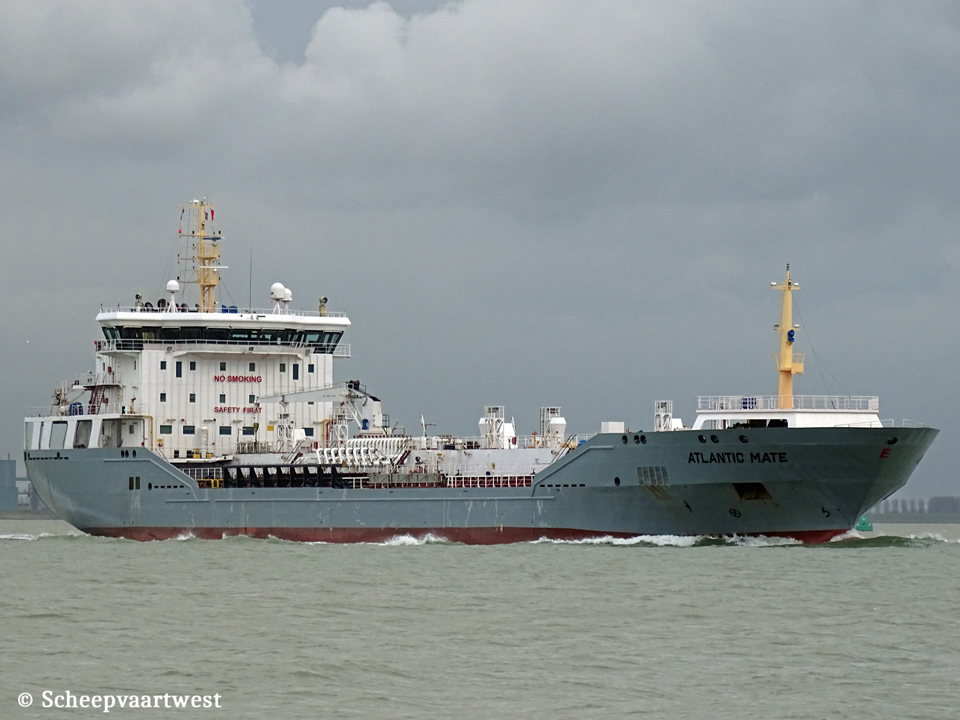

Atlantic Mate IMO 9350745 03

Westerschelde 10 February 2016

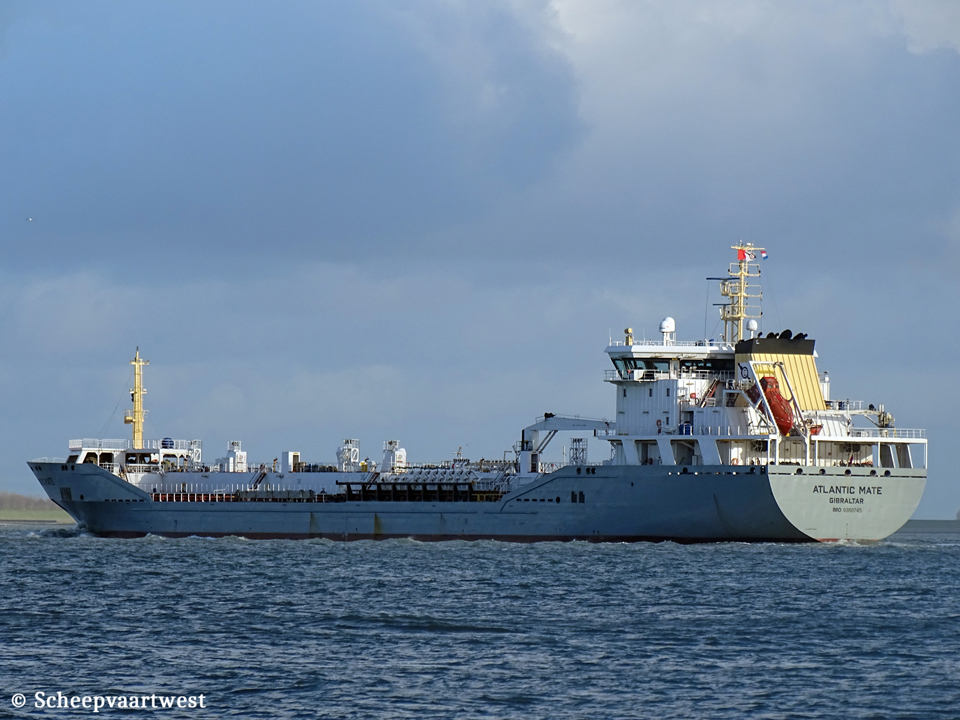

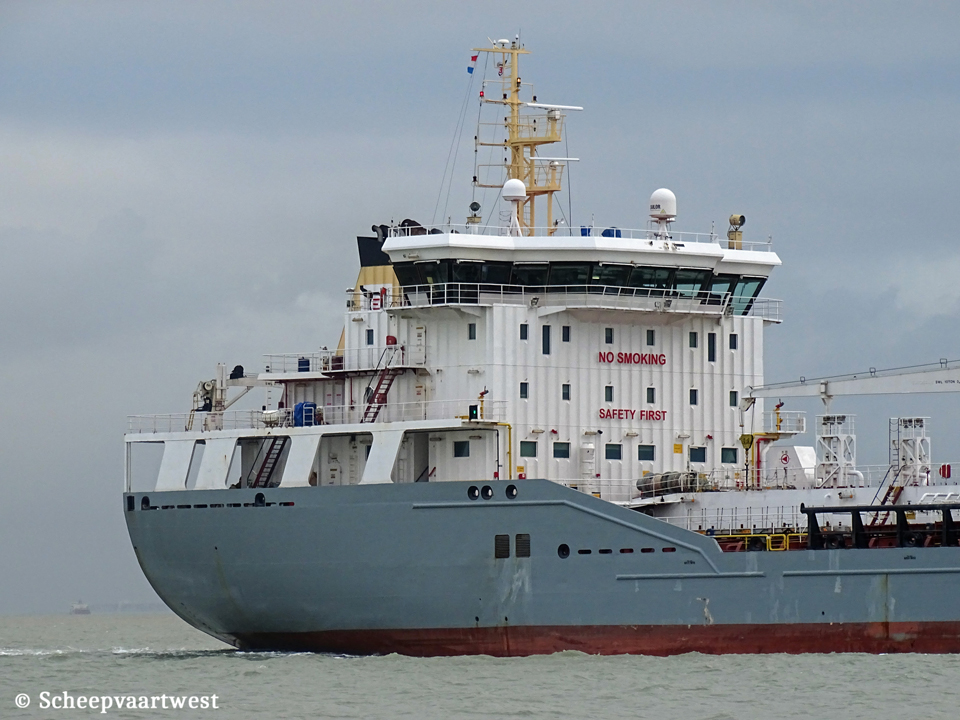

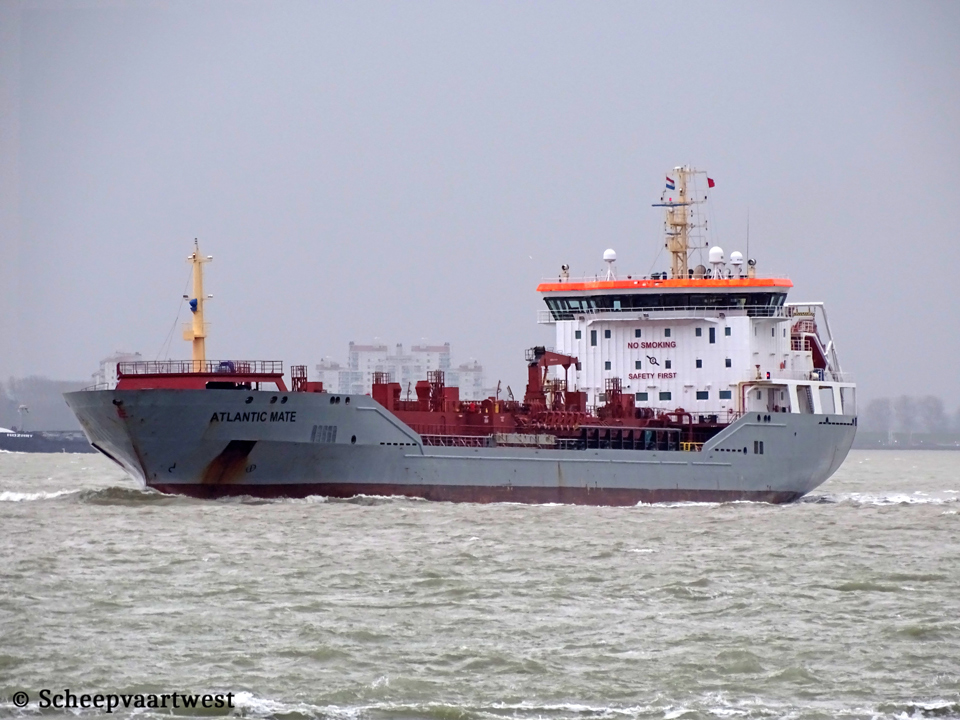

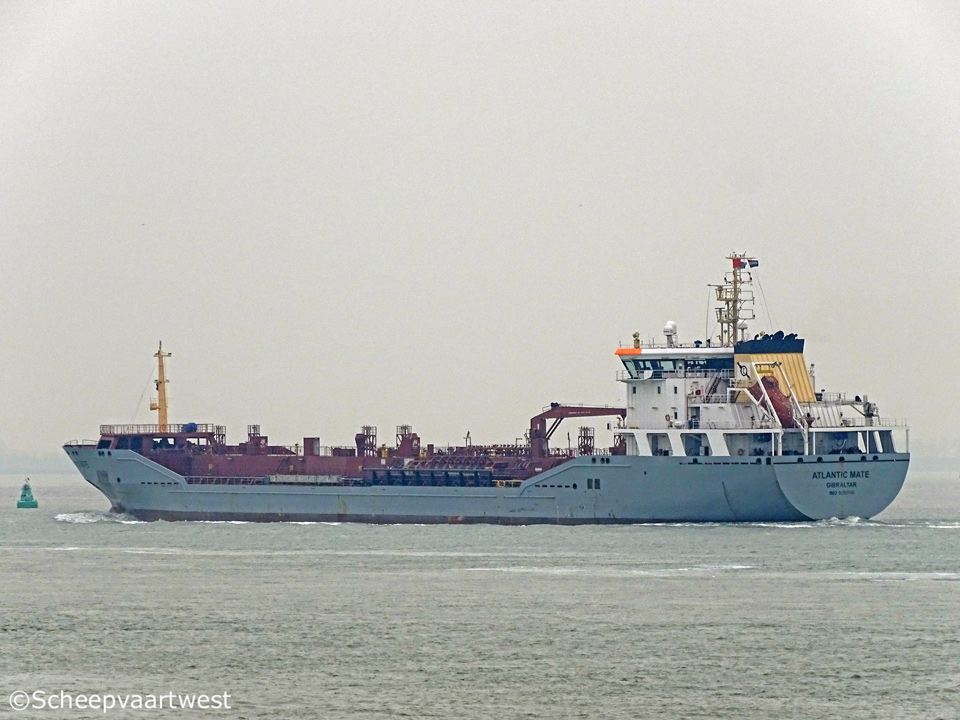

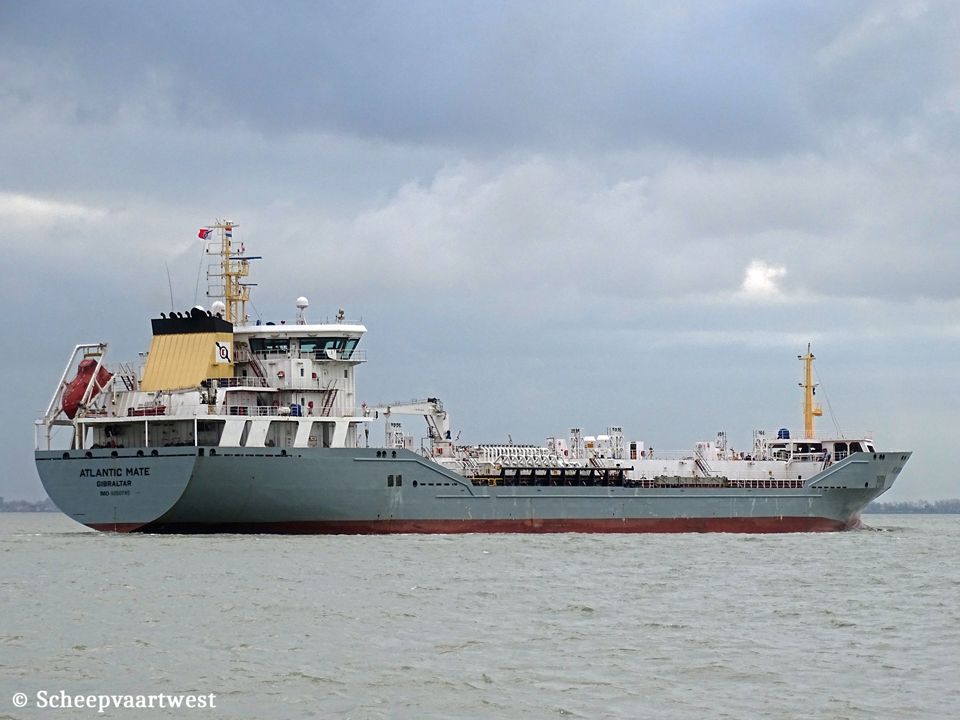

Atlantic Mate IMO 9350745 05   Atlantic Mate IMO 9350745 04   Atlantic Mate IMO 9350745 02   Atlantic Mate 01   Atlantic Mate IMO 9350745 06
Westerschelde 10/02/16   Westerschelde 10/02/16   Westerschelde 12/02/20   Westerschelde 20/02/18   Westerschelde 23/03/16


Name

ATLANTIC MATE

Previous names

2007 - 2015 Besiktas Scotland

Type

Oil/Chemical tanker

IMO-number

9350745

Call sign

ZDPO7

Flag

Gibraltar

Port of registry

Gibraltar

Previous flags

2007 - 2015 Malta, Valletta - Call sign: 9HYB8

GT

11.711 t

DWT

Summer: 17.999 t

NT

6.026 t

Length

147,50 m overall

138,00 m between perpendiculars

Breadth

22,40 m moulded

Draught

9,48 m

6,25 m ballast

Keel to mast end

39,20 m

Air draft

32,95 m in ballast

29,71 m loaded

Freeboard

3.140 m

Depth

12,60 m

Speed

16,0 knots

Built

2007

Date of completion

02/04/2007

Builder

Cicek Shipyard Marine Industry

Istanbul

Turkey

Yard number

39

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

11

Continuous decks

1

Main engine

1x MaK 7M43 - 4 stroke 7 cylinder 430 x 610 mm combustion engine 6.300 kW / 8.560 hp at 500 rpm

Built: 2005

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Screw propeller solid - aft at 118 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10 bar

Heating surface: 62,2 m²

Year of manufacture: 2006

Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH

57647 Nistertal - Federal Republic of Germany

2x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 71,0 m²

Year of manufacture: 2006

Manufacturer: Alfa Laval Aalborg A/S, 9100 Aalborg

Kingdom of Denmark

1x Steam generator, thermal oil heated - 10,0 bar

Heating surface: 18,0 m²

Manufacturer: Apparatenfabriek Aalsmeer B.V., 1435 BX Rijsenhout - The Netherlands

Electric installations

3x Plants each 450 V - 1.000 kVA

1x Plant 450 V- 1.565 kVA

1x Plant 450 V - 250 kVA

Shaft generator

1x 1.565 kVA - 1.252 kW

Generators

4x MAN D2842LE main diesel generatorsets each 738 kVA - 590 kW - 842 hp

Emergency generator

1x Diesel generatorset 269 kVA - 215 kW - 401 hp

Bow thruster

1x Bow thruster 750 kW, forward

Number of tanks

14 + 2 slop tanks

Total capacity of tanks

21.039,47 m³

Number of slop tanks

2

Slop tank capacity 98%

399,73 m³

Pumps

Cargo pumps:

14x Centrifugal pumps each 380 m³/h

2x Centrifugal pumps each 100 m³/h

1x Centrifugal pump 70 m³/h

Ballast pumps:

2x 500 m³/h each

Manifolds

Distance from bow to centre manifold: 76,10 m

Distance from stern to centre manifold: 71,40 m

Distance between manifolds: 1,50 m

Distance from ship side to manifold: 4,70 m

Tank capacities

Fuel oil: 830,77 m³

Ballast: 7.399,66 m³

Crew size

20

ISM & commercial manager

Carl F. Peters GmbH & Co. KG

Kurze Mühren 13

20095 Hamburg

Germany

Previous managers

2007 - 2015 Besiktas Likid Tasimacilik

Istanbul

Turkey

Registered owner

Atlantic Mate

Care of Carl F Peters (GmbH & Co) KG

Kurze Muehren 13

20095 Hamburg

Germany

Previous owners

2007 - 2015 Besiktas Shipping Group (North European Eagle Tanker)

Istanbul

Turkey

Latest data adjustment

17 October 2021
