Vlissingen 26 September 2018 |
|
Name |

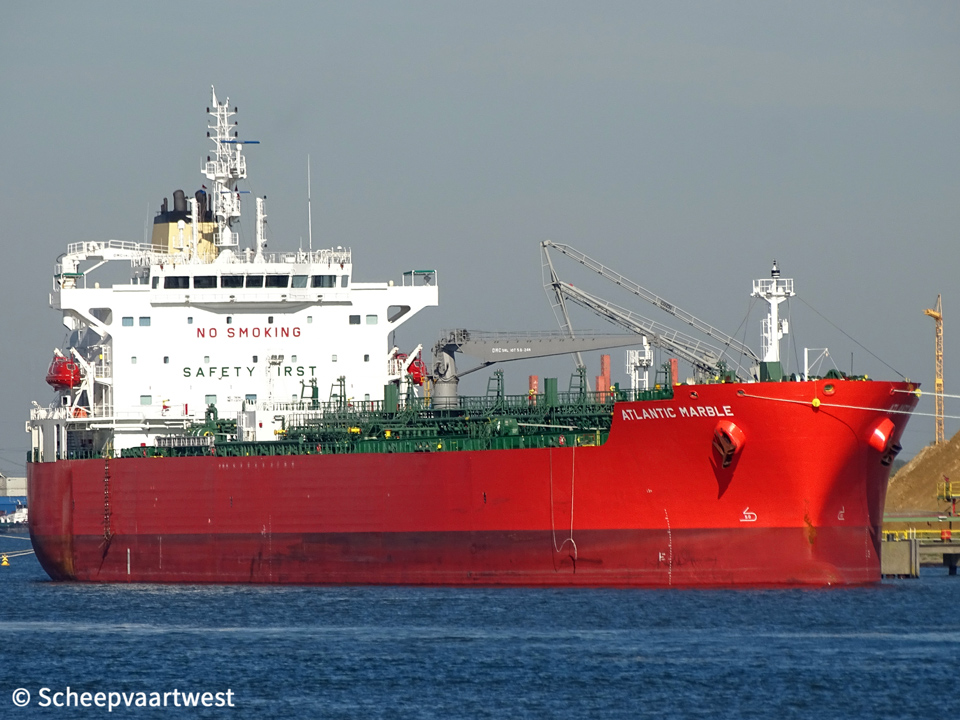

ATLANTIC MARBLE |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9798959 |
|
Call sign |
V7MJ4 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
29.256 t |
|
DWT |
49.999 t |
|
NT |
13.840 t |
|
Length |
183,06 m overall |
|
Breadth |
32,00 m |
|
Draught |
Summer: 13,30 m |
|
Reg. Dimensions L x B x D |
175,27 x 32,20 x 19,10 m |
|
Rule Dimensions L x B x D |
172,69 x 32,20 x 19,10 m |
|
Freeboard |
Summer: 5.830 mm |
|
Depth |
19,10 m |
|
Speed |
Service: 14,5 knots Max: 16,5 knots |
|
Built |
2018 |
|
Keel laid |
16/12/2015 |
|
Launch date |
18/12/2017 |
|
Date of completion |
22/03/2018 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2642 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hyundai/MAN-B&W 6G50ME-B9 - 2 stroke single acting 6 cylinder 500 x 2.500 mm combustion engine 7.180 kW at 86,9 rpm Build: 10/2017 Builder: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary Boiler CPB - 9,0 kg/cm² Heating surface: 110,0 m³ 2x Auxiliary Boiler WTB - 9,0 kg/cm² Heating surface: 175,0 m Build: 08/2017 Builder: Alfa Laval Qingdao Ltd., Jiaozhou - China |
|
Generators |
3x Main diesel generatorsets each 1.000 kVA / 450 Volt |
|
Cargo tank capacity |
Liquid: 54.413 m³ |
|
Tank capacities |
Fuel oil: 1.422,5 m³ Fresh water: 484,8 m³ Water ballast: 21.759,4 m³ |
|
Crew |
19 |
|
Manager |
Fleet Management Limited 11th Floor, Everbright Centre, 108, Gloucester Road Wan Chai, Hong Kong China |
|
Registered owner |
Infinite Future Shipping Inc. Hong Kong China |
|
Latest data adjustment |
12 September 2020 |
