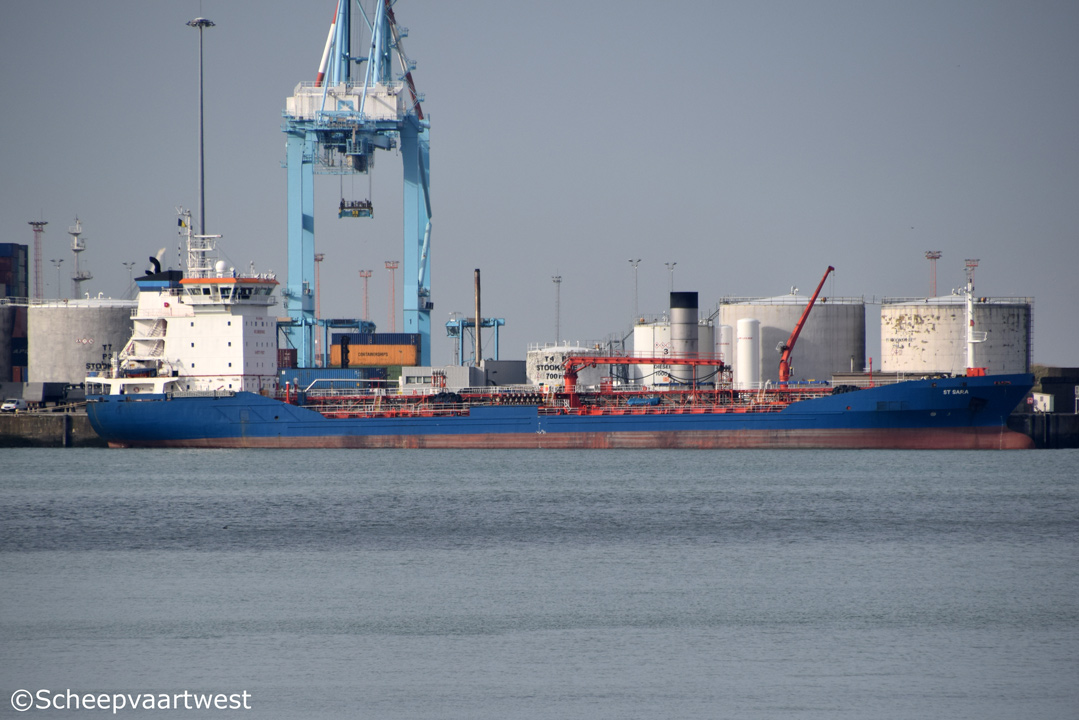

Zeebrugge 01 November 2017 |
|
Name |
ST SARA |
|
Previous names |
2007 - 03.2009 FS Sara |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9356646 |
|
Call sign |
FMLH |
|
Flag |
France |
|
Port of registry |
Marseille |
|
GT |
5.271 t |
|
DWT |
Summer: 8.019 t Winter: 7.764 t |
|
NT |
2.398 t |
|
Light weight |
2.929 t |
|
Length |
122,66 m overall 113,63 m between perpendiculars |
|
Breadth |
17,20 m moulded |
|
Draught |
Summer: 6,86 m Winter: 6,72 m |
|
Keel to mast end |
35,00 m |
|
Freeboard |
Summer: 1.954 mm |
|
Depth |
8,80 m |
|
Speed |
13,0 knots |
|
Built |
2007 |
|
Date of completion |
04.01.2007 |
|
Builder |
ADIK Yard Tuzla (Anadolu Deniz INsaat Kizaklari San. VE TIC. LTD. STI) |
|
Yard number |
188 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartment |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8L32 - 4 stroke 8 cylinder 320 x 480 mm diesel engine 3.840 kW / 5.217 hp at 600 rpm Built: 2005 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propelling system |
1x Screw propeller controllable pitch- aft at 600 rpm - Diameter 4,500 mm |
|
Boilers |
2x CHO Aalborg 57,00 m² - 13,0 bar |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 230 V Frequency: 60 Hz |
|
Shaft generator |
1x 1.400 kVA - 1.120 kW |
|
Generators |
3x LIAG/MAN D 2842 LE 301 main diesel generatorsets each 725 kVA - 580 kW - 842 hp |
|
Emergency generator |
1x Diesel generatorset 163 kVA - 130 kW - 177 hp |
|
Bow thruster |
1x Controllable pitch propeller 500 kW |
|
Stern thruster |
2x Pumps jet Schottel each 450 KW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
8.183 m³ |
|
Number of slop tanks |
1 |
|
Slop rank capacity 98% |
249 m³ |
|
Total 98% |
8.432 m³ |
|
Cargo handling |
12x Framo deepwell hydraulic driven pumps each 380 m³/h 1x Pump 100 m³/h |
|
Segregations |
6 1C (Slop) = 249 m³ 2P + 2S = 1.252 m³ 3P + 3S = 1.454 m³ 4P + 4S = 1.460 m³ 5P + 5S = 1.538 m³ 6P + 6S = 1.224 m³ 7P + 7S = 1.250 m³ |
|
Manifolds |
Bow to centre manifolds: 66,00 m Stern to centre manifolds: 57,00 m |
|
Tank capacities |
Fuel oil: 429,97 m³ Gas oil: 76 t |
|
Lifting equipment |
1x Crane - SWL 5,0 t @ 14,50 m |
|
Manager |
ST Management |
|
Owner |
Sea Tankers Shipping SAS |
|
Disponent owner |
SEA-tankers Shipping 33700 Merignac |
|
Latest data adjustment |
07 December 2017 |
