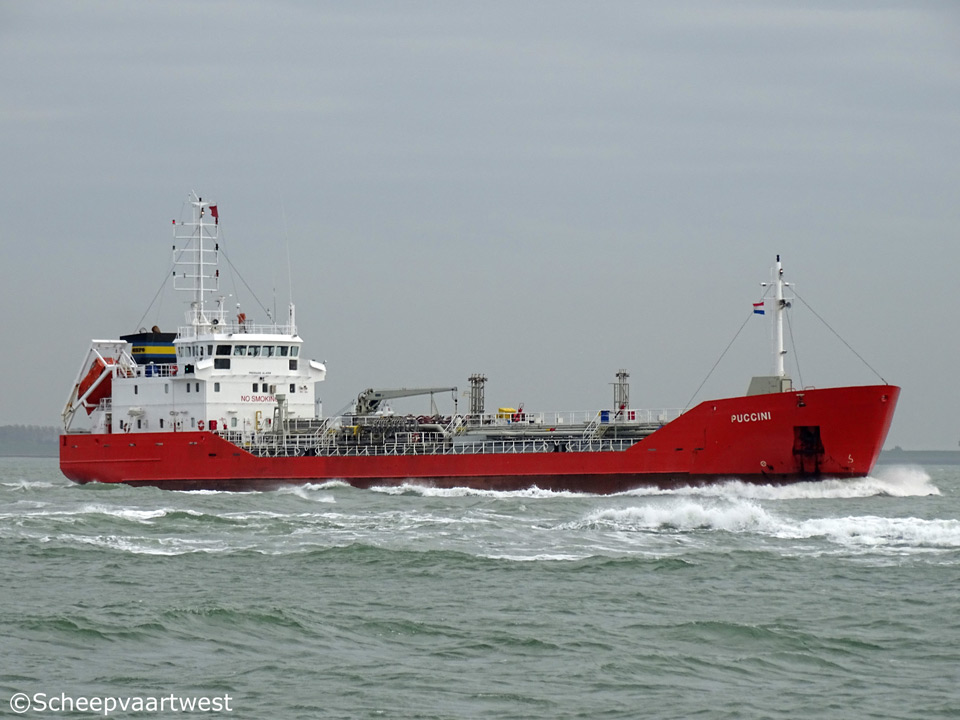

Puccini IMO 9156993 01

Westerschelde 22 October 2015

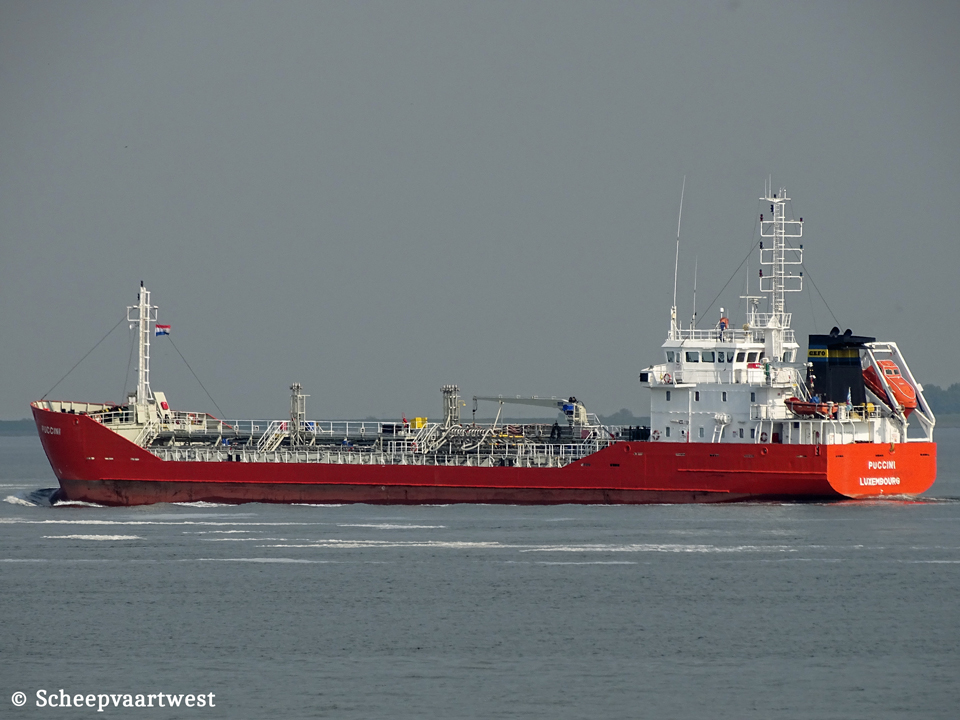

Puccini IMO 9156993 02
Westerschelde 11/05/17


Name

PUCCINI

Type

Chemical tanker

IMO-number

9156993

Call sign

LXPY

Flag

G.D. Luxembourg

Port of registry

Luxembourg City

Previous flags

1998 - 2016 Cyprus, Limassol - Call sign: P3SN8

GT

2.195 t

DWT

Summer: 3.053 t

NT

832 t

Length

94,03 m overall

89,26 m between perpendiculars

Breadth

12,53 m extreme

Draught

4,65 m

Keel to mast end

27,00 m

Forecastle

10,34 m

Poop

18,60 m

Freeboard

1.722 mm

Depth

6,35 m

Speed

13,0 knots

Built

1998

Keel laid

16/04/1998

Launch date

31/10/1998

Date of completion

01/12/1998

Builder casco

Ceske Lodenice A.S.

Valtirov

Czech Republic

Builder completion

K. Damen Europe BV

Hardinxveld-Giessendam

The Netherlands

Yard number

710

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double hull

Double bottom

Bulkheads

12

Continuous decks

1

Main engine

1x MAN-B&W Alpha 8L28/32 A - 4 stroke 8 cylinder 280 x 320 mm combustion engine 1.980 kW / 2.692 hp at 775 rpm

Year of Manufacture: 1999

Manufacturer: MAN B&W Diesel A/S Frederikshavn

Niels Juels Vej 15

9900 Frederikshavn

Denmark

Propellers

1x Controllable pitch propeller - aft at 304 rpm

4 blades

Boilers

1x Thermal oil heater, oil fired - 10,0 bar

Heating Surface: 64,7 m²

Year of Manufacture: 1998

Manufacturer: Wiesloch Marine & Industries B.V.

Ohmweg 8

3208 KE Spijkenisse

The Netherlands

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating Surface: 30,0 m²

Year of Manufacture: 2006

Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH

Hirtscheider Str. 13-15

57647 Nistertal

Federal Republic of Germany

Electric installations

2x Plants each 440/220 V - 269 kVA

1x Plant 440/220 V - 450 kVA

1x Plant 440 V - 156 kVA

Generators

2x Volvo Penta TMD 122 A diesel generatorsets each 269 kVA

1x Volvo TAMD 162 C diesel generatorset 450 kVA

Emergency generator

1x Volvo TAMD 71 B diesel generatorset 156 kVA

Compressed air receivers

2x Receivers each 250 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 270 kW, forward

Number of cargo tanks

12 - 2 slop tanks

Cargo tank capacity

Liquid: 3.226 m³

Number of pumps

10x Cargo pumps each 120 m³/h

Tank capacities

Fuel oil: 196 m³

Ballast: 1.600,3 m³

Anchor equipment

Length: 440,00 m

Diameter: 36 mm

Manager

GEFO Gesellschaft für Öltransporte mbH

Kurze Mühren 2

20095 Hamburg

Federal Republic of Germany

Operator

Gefo Gesellschaft fur Oeltransporte mbH

Duisburg

Germany

Owner

Hansa Befrachtungs-Gesellschaft mbH

Germany

Registered owner

Puccini Tanker GmbH & Co KG

Renamed

10/2019 G. Puccini

Russia, Bolshoy port of St.-Petersburg - Call sign: UBHT6

Registered owner& manager: Lukoyl-MarinBunker LLC - 197022 St.Petersburg - Russia

ISM manager: Sea Engineering Ltd. - Russia

Latest data adjustment

04 December 2023
