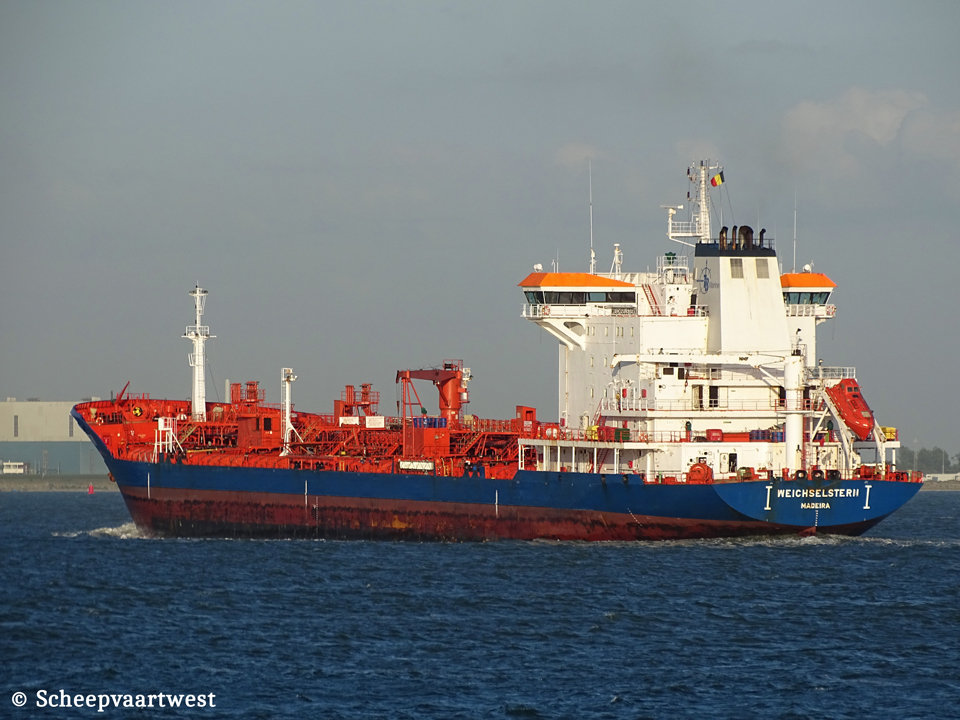

Westerschelde 13 April 2020 |
 |
 |
|

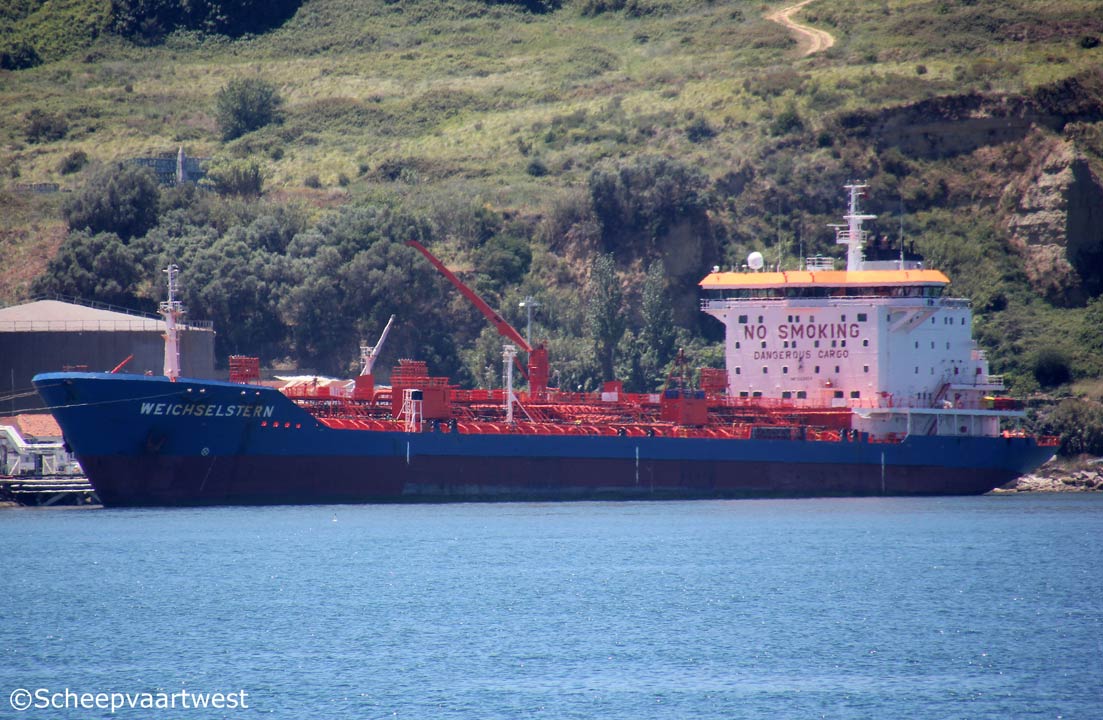

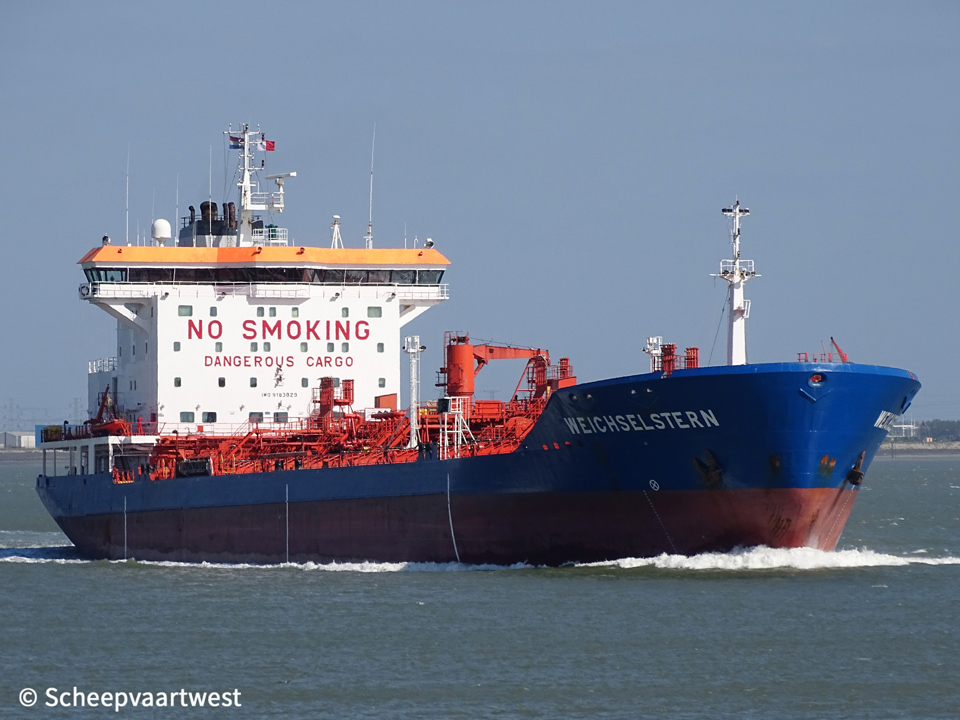

| Caparica, Portugal 07/06/17 | Westerschelde 07/08/19 | |
|
Name |
WEICHSELSTERN |
|
Type |
Oil/Chemical tanker |
|
IMO-number |
9183829 |
|
Call sign |
CQLI |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
United Kingdom - Call sign: MYT5 |
|
GT |
14.400 t registered |
|
DWT |
Summer: 21.852 t |
|
NT |
6.937 t registered |
|
Length |
162,16 m overall 155,00 m between perpendiculars |
|
Breadth |
27,00 m moulded |
|
Draught |
7,90 m |
|
Keel to mast end |
40,00 m |
|
Freeboard |
3.214 mm |
|
Depth |
12,00 m moulded |
|
Speed |
Service: 15,0 knots |
|
Built |
1999 |
|
Keel laid |
22/06/1999 |
|
Date of completion |
30/12/1999 |
|
Builder |
Gdynia Shipyard Gdynia Poland |
|
Yard number |
8189/2 |
|
Hull material |
High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 15 |
|
Continuous decks |
1 |
|
Main engine |
1x H.Cegielski/MAN-B&W 6S45MC-C - 2 stroke 6 cylinder 450 x 2.000 mm combustion engine 7.860 kW / 10.686 hp at 129 rpm Manufacturer: H. Cegielski Poznan SA |
|
Propellers |
1x Controllable pitch propeller 4 blades |
|
Boilers |
1x Composite Boiler Mission TM OC - 12,0 bar 1x Auxiliary boiler AQ18 - 12,0 bar Manufacturer: Aalborg |
|
Shaft generator |
1x 900 kVA |
|
Generators |
3x Main diesel generatorsets each 830 kVA |
|
Bow thruster |
750 kW |
|
Number of cargo tanks |
15 |
|
Cargo tank capacity 100% |
24.459,8 m³ |
|
Slop tank capacity |
823 m³ |
|
Cargo pumps |
6x Cargo pumps each 550 m³/h 8x Cargo pumps each 350 m³/h |
|
Number of tanks |
Ballast: 16 Sludge: 13 Fuel oil: 8 Lubricating oil: 5 Diesel oil: 4 Fresh water: 4 Chain: 2 |
|
Tank capacities 100% |
Diesel Oil: 145 m³ Freshwater: 420,9 m³ Fuel Oil: 1.276,3 m³ Lube Oil: 63,6 m³ Ballast: 9.542m³ |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision crane centre - SWL 4,0 t |
|
Crew size |
24 |
|
Operator |
TB Marine Shipmanagement GmbH & Co. KG Paul-Dessau-Strasse 6 D-22761 Hamburg Germany |
|
Owner |
MT "Weichselstern" Schifffahrtsgesellschaft Mbh & Co,.KG |
|
Renamed |
2020 Bukhta Gernera Russia, Nakhodka - Call sign: UBWU3 Owner: Tekhnotek Llc., Moscow - Russia Manager: Transoil Co Ltd., Nakhodka - Russia |
|
Latest data adjustment |
07 February 2023 |
