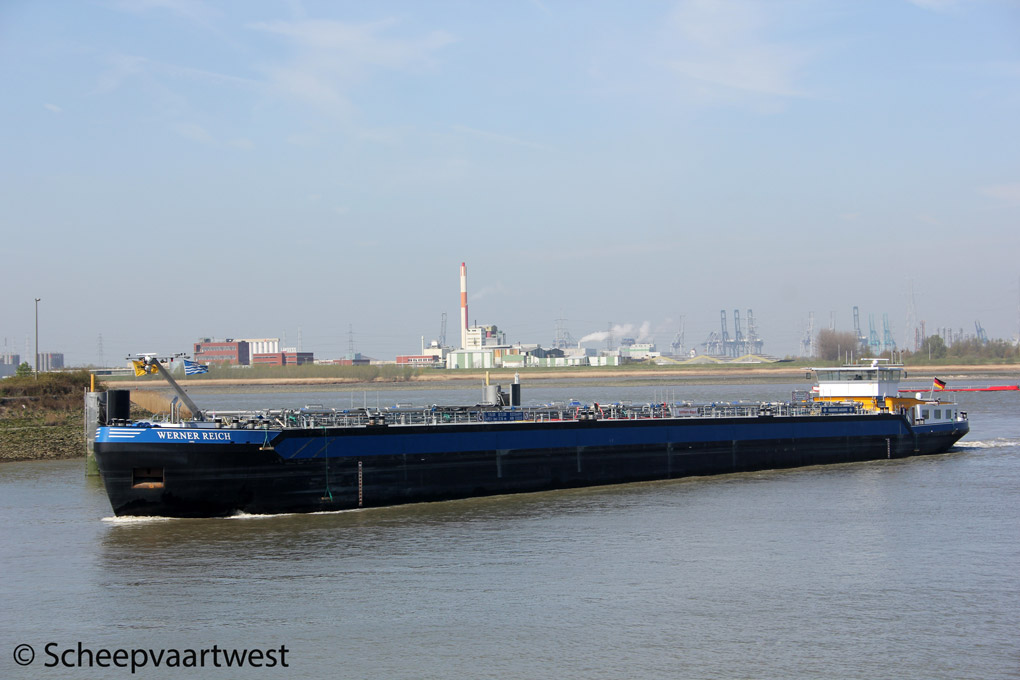

Werner Reich 01
Antwerpen 24 April 2013

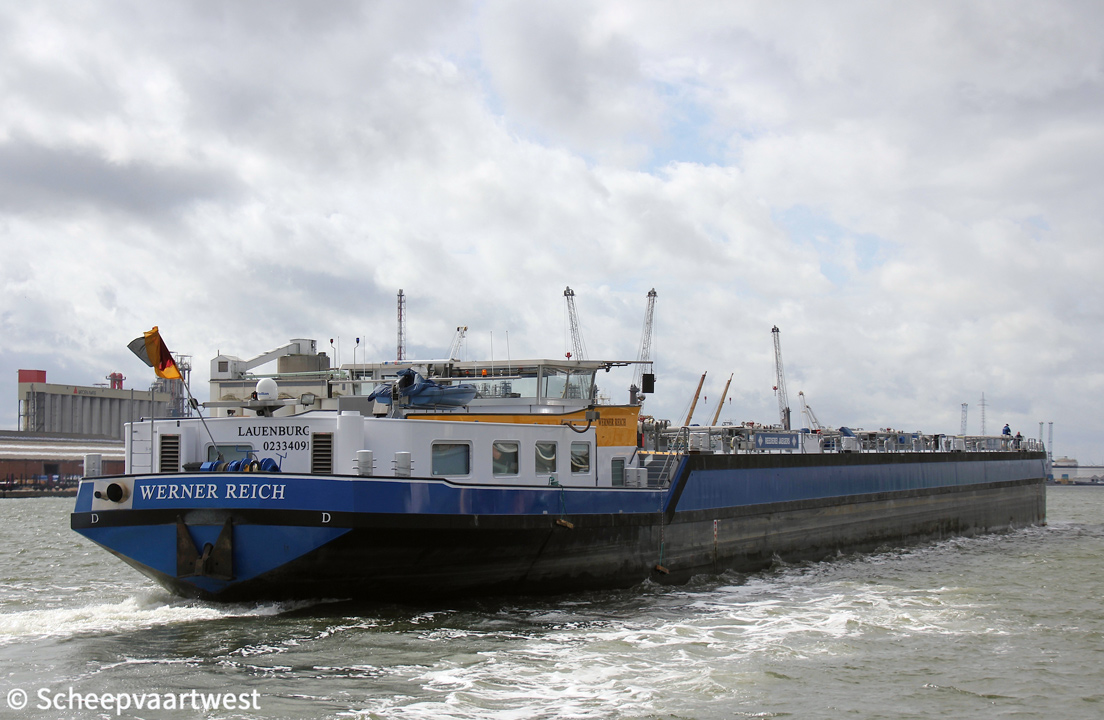

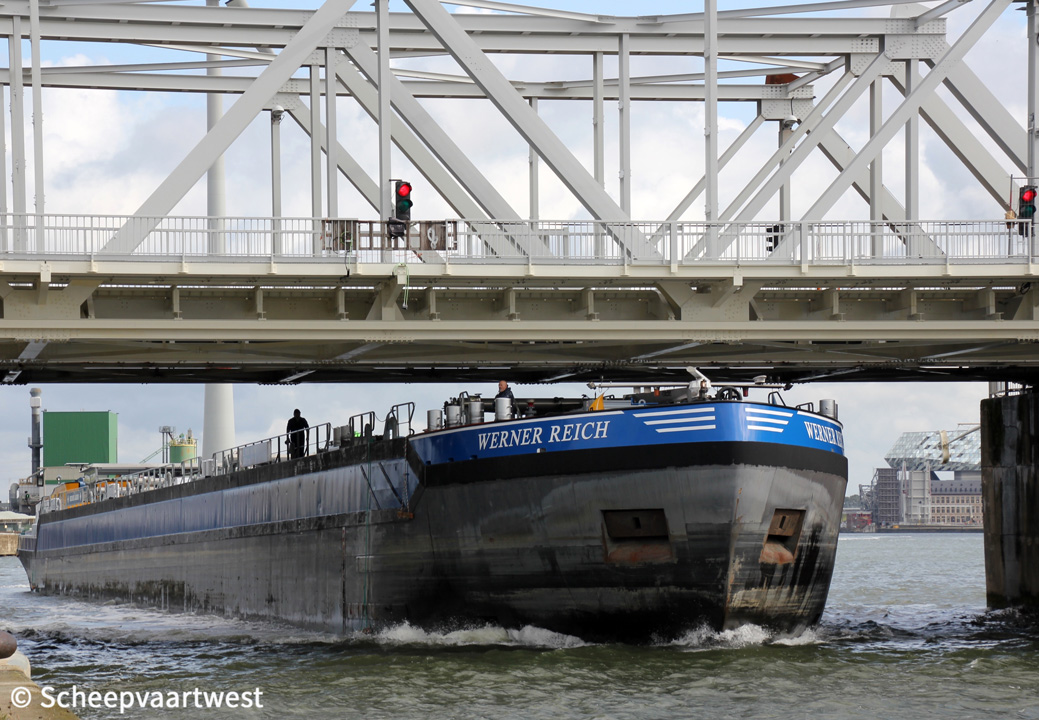

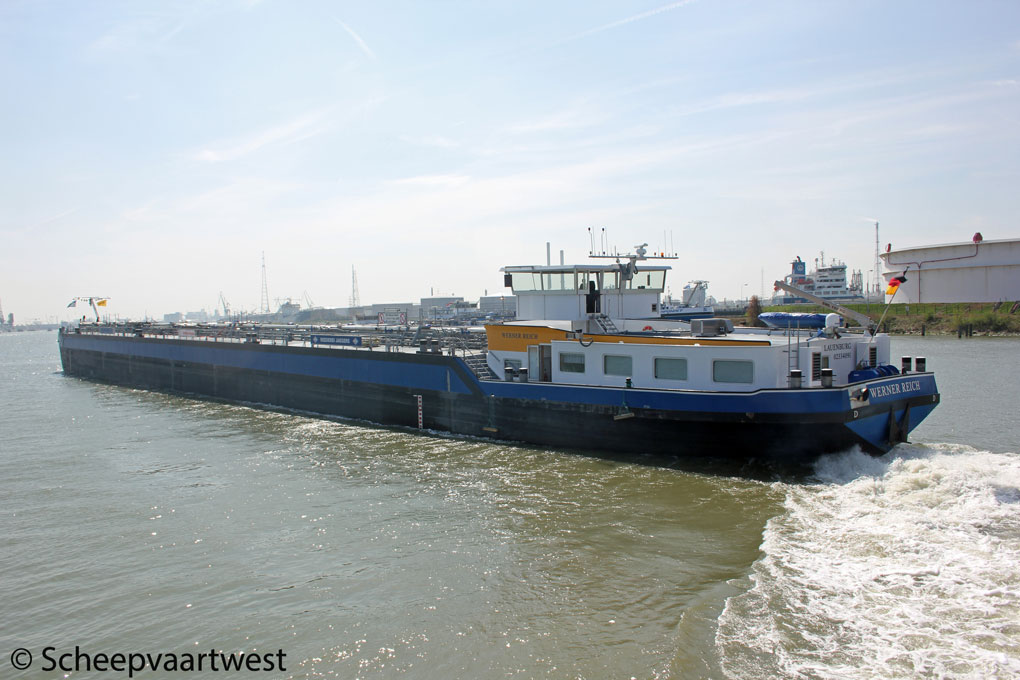

Werner Reich 02   Werner Reich 04   Werner Reich 03
Antwerpen 24/04/13 Antwerpen 28/09/19 Antwerpen 28/09/19


Name

WERNER REICH

Type

Inland tanker

ENI-number

02334091

Call sign

DF6978

Flag

Germany

Port of registry

Lauenburg

GT

1.000 t

DWT

2.493 t

Length

109,88 m

Breadth

11,04 m

Draught

3,16 m

Depth

5,15 m moulded

Built

2011

Keel laid

09/02/2010

Launch date

17/08/2010

Date of completion

28/09/2011

Builder casco

Centromost Stocznia Rzeczna

Plock

Poland

Builder completion

Scheepswerf Gelria B.V.

Handelsweg 75

6541 CS Nijmegen

The Netherlands

Yard number

10-002

Hull material

Shipbuilding steel (standard)

Hull type

Double hull

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

15

Continuous decks

1

Main engine

1x Mitsubishi S16R-C2MPTK - 4 stroke 16 cylinder 170 x 180 mm combustion engine 1.250 kW / 1.700 hp at 1.600 rpm

Year of Manufacture: 2009

Manufacturer: Mitsubishi Heavy Industries, Ltd.

2-16-5, Konan Minato-ku

Tokyo ,108-0075 Tokyo-to

Japan

Propellers

1x Solid propeller - aft at 328 rpm with nozzle van de Giessen Optima - diameter: 1.762 mm

Electric installations

1x Plant 400 V - 65 kVA

1x Plant 400 V - 175 kVA

1x Plant 440 V - 460 kVA

2x Plants 24 V - 200 Ah

Generators

1x Cummins QSX 15C diesel engine coupled with Marathon 572 PSL 4030 generator 460 kVA

1x Cummins QSB 6.7C diesel engine coupled with Marathon 431 PSL 6204 generator 175 kVA

1x Cummins 4BT 3.9G4 diesel engine coupled with Marathon 362 CSL 1604 generator 65 kVA

Batteries

1x Battery for automation 200 Ah

1x Battery for emergency lighting 200 Ah

Compressed air receivers

1x Receiver 500 litres - 10,0 bar

Bow thruster

1x Transverse thruster Cummins - Verhaar Omega-Jet 31120S-4k - 475 hp / 350 kW at 1.750 rpm, forward

Pumps

6x MarFlex cargo pumps type MDPD-80 each 100 m³/h

Anchor equipment

Length: 120,00 m

Diameter: 34 mm

Owner

Reich Schiffahrtbetriebe GmbH (Markus Reich)

Lerchenweg 3

21481 Lauenburg

Federal Republic of Germany

Last update

23 March 2020
