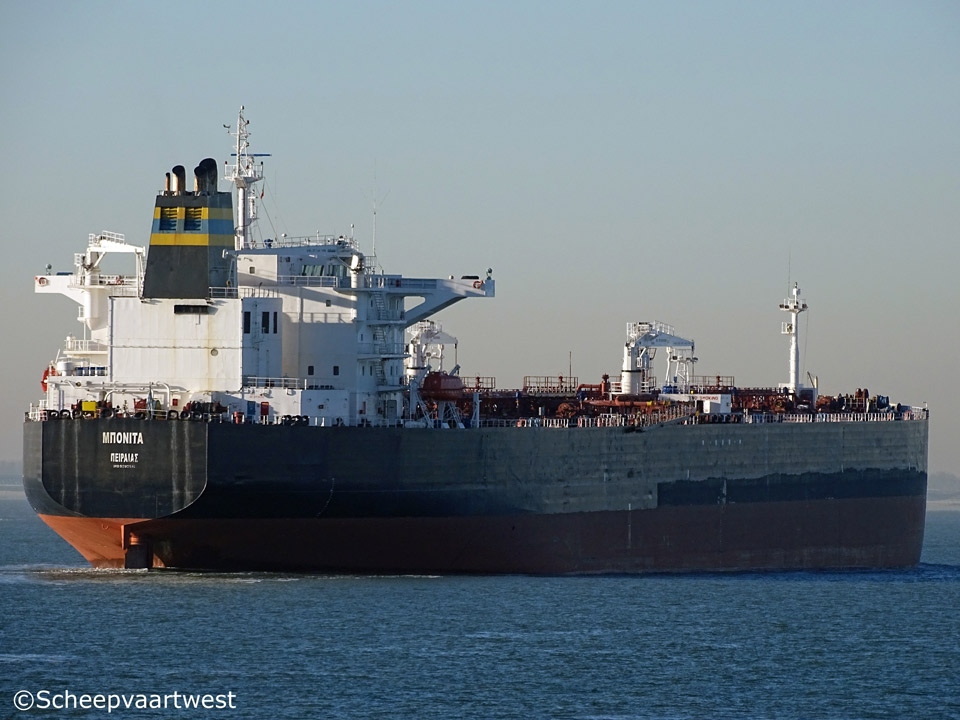

Westerschelde 20 January 2017 |
|
Name |
BONITA |
|
Hellenic Name |
MΠΟΝΙΤΑ |
|
Type |
Crude and oil products carrier |
|
IMO-number |
9297541 |
|
Call sign |
SYVW |
|
Flag |
Greece (Hellenic Republic) |
|
Port of registry |
Piraeus |
|
GT |
57.711 t registered Suez: 59.467,15 t |
|
DWT |
Summer: 108.386 t |
|
NT |
33.521 t registered Suez: 53.293,26 t |
|
Length |
246,60 m overall 234,00 m between perpendiculars |
|
Breadth |
42,00 m moulded |
|
Draught |
15,16 m |
|
Freeboard |
5.875 mm |
|
Depth |
21,00 m moulded |
|
Speed |
15,0 knots |
|
Built |
2006 |
|
Keel laid |
17.10.2005 |
|
Launch date |
23.12.2005 |
|
Date of completion |
09.02.2006 |
|
Builder |
Hyundai Heavy Ind. Co., Ltd. Ulsan |
|
Yard number |
1615 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 22 Non tight: 2 Gas tight: 2 Oil tight: 34 |
|
Main engine |
1x Hyundai/MAN B&W 7S60MC-C - 7 cylinder 600 x 2.400 mm combustion engine 16.630 kW / 22.610 hp at 105,0 rpm Manufacturer: Hyundai Heavy Industries Co.,Ltd. |
|
Propellers |
1x Fixed propeller Manufacturer: HHI, Engine & Machinery Division |
|
Boilers |
1x Exhaust gas economizer - 18,0 bar Manufacturer: Kang Rim Ind. Co., Ltd. 2x Auxiliary water tube boiler - 18,0 bar |
|
Generators |
3x Main diesel generatorsets each 800 kW Manufacturer: HHI Electro Electric Systems |
|
Number of cargo tanks |
12 |
|
Cargo hold capacity 98% |
117.021 m³ |
|
Number of slop tanks |
2 |
|
Number of segregations |
3 |
|
Number of pumps |
3x 3.000 m³/h |
|
Number of tanks |
Ballast: 16 Fuel oil: 8 Lubricating oil: 8 Sludge: 4 Slop: 2 Fresh Water: 2 Chain: 2 Diesel oil: 2 Permanent ballast: 1 |
|
Tank capacities |
Diesel Oil: 181,2 m³ / 163,08 t Freshwater: 355 m³ Fuel Oil: 2.977 m³ / 2.946,44 t Lube Oil: 177,5 m³ / 159,75 t Tank Ballast: 38.525,7 m³ / 39.488,84 t |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t Manufacture: Oriental Precision & Engineering Co., Ltd. 1x Port side cargo hose handling crane - SWL 15,0 t 1x Starboard side cargo hose handling crane - SWL 15,0 t 1x Port side provision crane - SWL 4,0 t 1x Starboard side provision crane - SWL 2,0 t Manufacture: Hochang Machinery Ind. Co., Ltd. |
|
Manager |
TMS Tankers Ltd. 80, Kifissias Av. |
|
Operator |
Agilera Shipping Corp. Trust Company Complex Ajeltake Road Ajeltake Island Majuro MH 96960 Marshall Islands |
|
Registered owner |
Agilera Shipping Corp. |
|
Latest data adjustment |
29 May 2017 |
