Vlissingen, The Netherlands 20 December 2016 |
 |
 |
|
| Vlissingen 20/12/16 | Vlissingen 20/12/16 | |
|
Name |

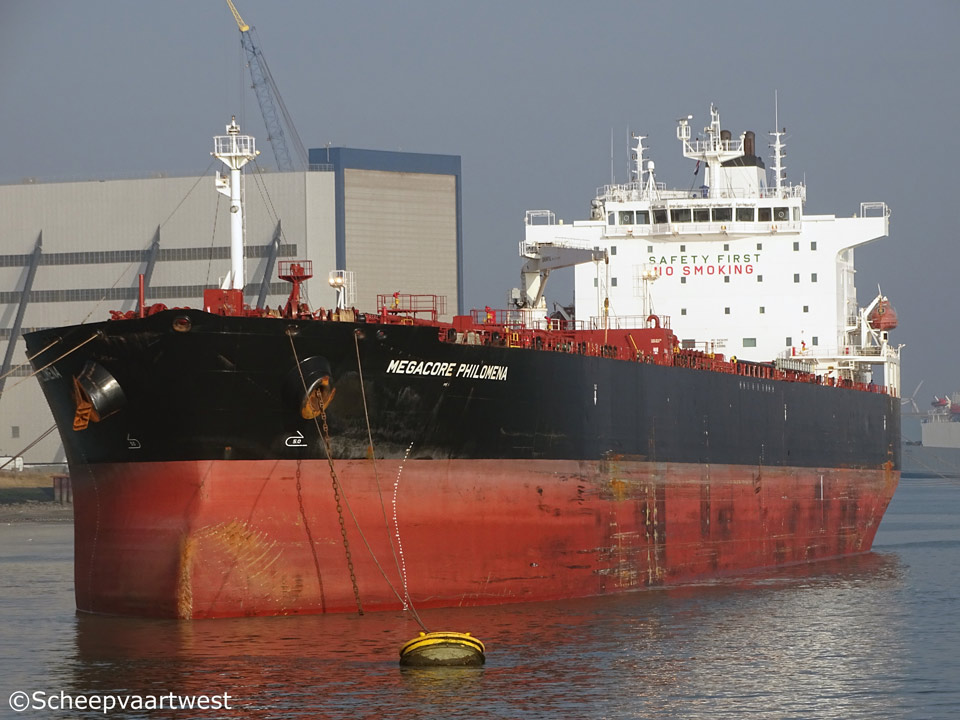

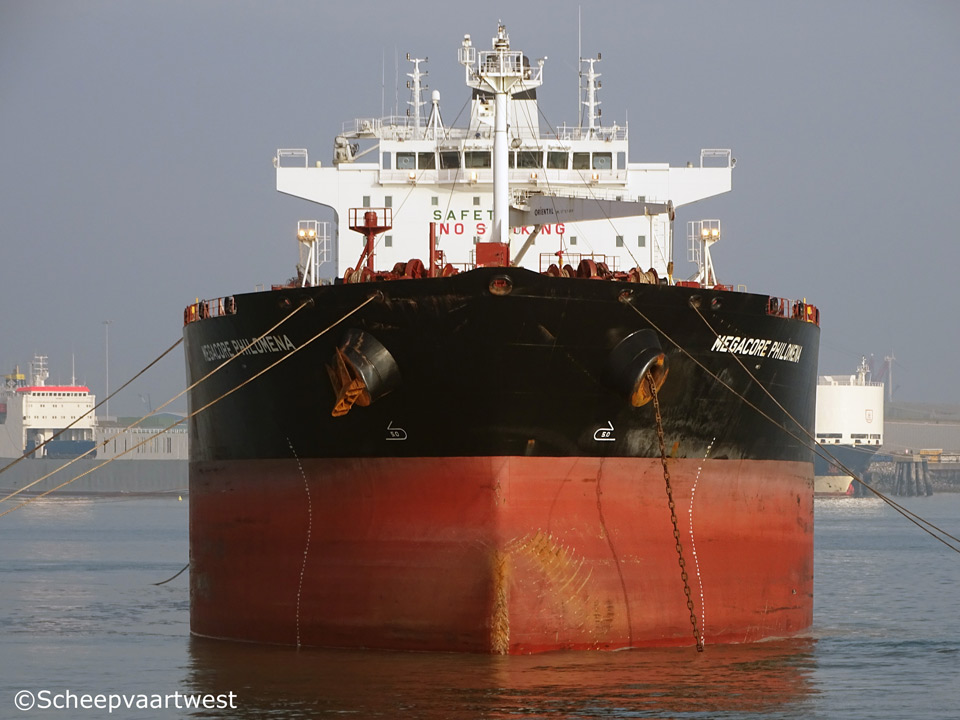

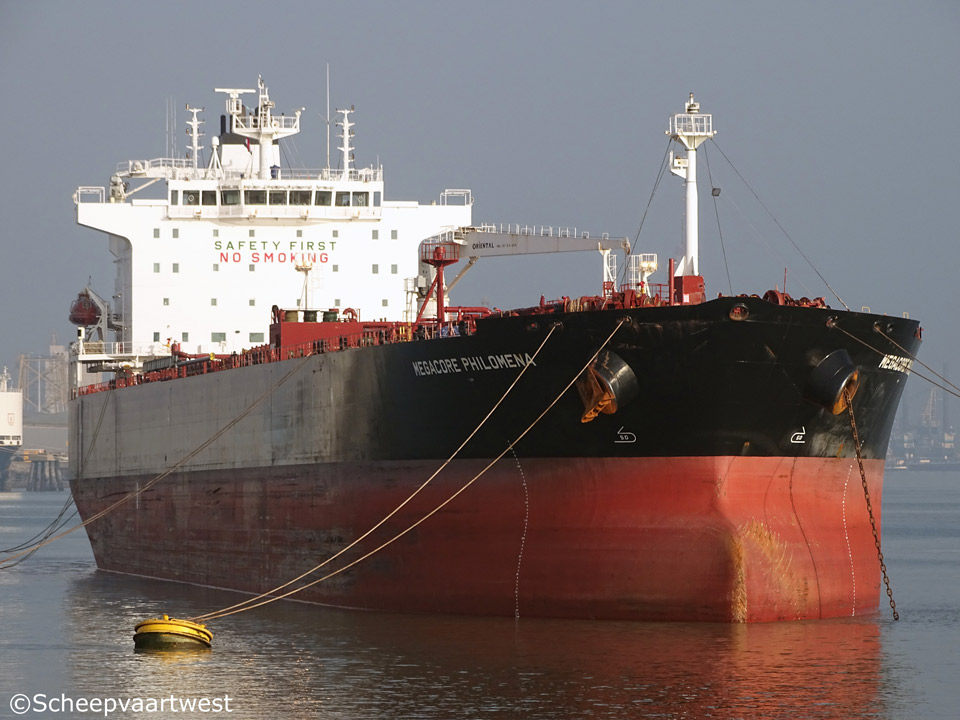

MEGACORE PHILOMENA |
|
Type |
Crude oil tanker - Panamax |
|
IMO-number |
9456915 |
|
Call sign |
V7VA4 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
42.208 t registered Suez: 44.523,24 t |
|
DWT |
Summer: 74.574 t Winter: 72.507 t |
|
NT |
22.056 t registered Panama: 34.866 t Suez: 39.375,32 t |
|
Length |
228,48 m overall 219,00 m between perpendiculars |
|
Breadth |
32,23 m |
|
Draught |
Summer: 14,52 m Winter: 14,22 m |
|
Keel to mast |
47,82 m |
|
Bridge |
38,63 m to stern 189,56 m to bow |
|
Freeboard |
Summer: 6.414 mm Winter: 6.716 mm |
|
Depth |
20,90 m moulded |
|
Speed |
Max.: 16,0 knots |
|
Built |
2010 |
|
Keel laid |
31.05.2010 |
|
Launch date |
29.07.2010 |
|
Date of completion |
11.10.2010 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. South Korea |
|
Yard number |
2288 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN/HHI 6S 60MC-C8 - 2 stroke 6 cylinder d600 x 2.400 m diesel engine MCR 10.620 kW at 96,9 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Rudder |
1 |
|
Boilers |
1x Auxiliary boiler, composite 1x Auxiliary boiler, oil/gas fired |
|
Generators |
3x HHI model 6H21/32 diesel generatorsets each 800 kW |
|
Emergency generator |
1x Cummins 6CT83DM diesel generatorset |
|
Number of cargo tanks |
12 Tanks coating: Pure Epoxy |
|
Cargo tank capacity 98% |
Crude cap.: 515.756,00 bbl Liquid oil: 82.354,70 m³ Slope: 2.215 m³ |
|
Number of slop tanks |
3 |
|
Slop tank capacity 98% |
1.434;60 m³ |
|
Total tank capacity 98% |
83.789,30 m³ cargo + slop tanks |
|
Pumps |
Cargo pumps: 12 Framo each 900 m³/h 2x Framo each 300 m³/h 1x Framo 150 m³/h Ballast pumps: 2x Framo each 1.500 m³/h |
|
Max. loading rate |
6.000 m³/h |
|
Max. discharging rate |
5.400 m³/h |
|
Number of tanks |
Ballast: 14 Fuel oil: 10 Lubricating oil: 9 Diesel oil: 2 Chain: 2 Sludge: 2 Fresh water: 2 Fixed ballast liquid: 1 Waste water: 1 Gasoline: 1 |
|
Tank capacities 100% |
Diesel Oil: 188,3 m³ / 169,47 t Freshwater: 392,8 m³ Fuel Oil: 1.972,2 m³ / 1.952,47 t Lube Oil: 187,7 m³ / 168,93 t Tank Ballast: 25.701,6 m³ / 26.344,14 t |
|
Manifolds |
Bridge to centre manifold: 75,26 m Centre manifold to bow: 114,30 m |
|
Lifting equipment |
1x Hose crane - SWL 15 t |
|
Crew |
23 |
|
Commercial manager |
Oxygen Maritime Management Inc. |
|
Technical manager |
Oxygen Maritime Management Inc. |
|
Registered owner |
Hurricane Navigation Inc. Marshall islands |
|
Latest data adjustment |
12 February 2017 |
