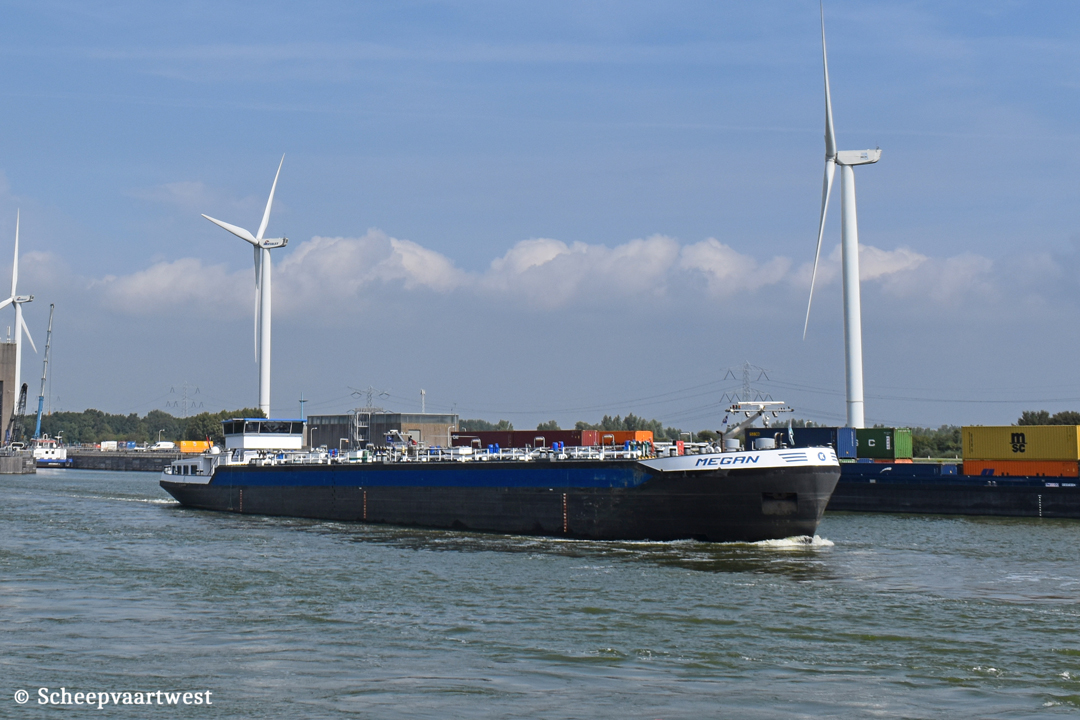

| Kreekraksluis 29 August 2024 The hetnerlands |
|
Name |
MEGAN |
|
Type |
Inland tanker |
|
IMO number |
8337863 |
|
ENI-number |
02326940 |
|
Call sign |
PI2579 |
|
Flag |
The Netherlands |
|
Port of registry |
Rozenburg |
|
GT |
1.507 t |
|
Tonnage |
2.180 t |
|
Length |
86,00 m |
|
Breadth |
11,44 m |
|
Draught |
3,60 m |
|
Depth |
5,30 m |
|
Built |
2005 |
|
Date of completion |
01/04/2005 |
|
Builder casco |
Stocznia Malbo Wroclaw Poland |
|
Builder completion |
Smits Machinefabriek en Scheepsreparatie B.V. Krimpen a/d Lek The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 (B) DI-TA electronic - 4 stroke 12 cylinder combustion engine 1.015 kW / 1.379 hp t 1.600 rpm Builder: Caterpillar, Mossville - USA |
|
Gearbox |
1x Reintjes WAF 663 - reduction 5,044:1 |
|
Propellers |
1x 5 blades propeller diameter 1.750 mm in Van de Giessen nozzle diameter 1.762 mm |
|
Generators |
2x Cummins N14 G2 engines connected with Stamford HCM 534 C1, generatorsets each 420 kVA 1x Cummins 6BT 5.9 G5 engine connected with Stamford UCM 274 C1 generator 81,5 kVA |
|
Bow thruster |
1x Cummins 380 hp electro-motor - Verhaar Omega-Jet 280 kW at 1.780 rpm |
|
Number of pumps |
7x Marflex MDPD-80 cargo pumps 1x Bornemann W7.2 ZK 85 ballast pump |
|
Caro tank capacity |
2.650 m³ |
|
Owner |
Vof. Megan Scheepvaartbedrijf De Looi 6 3181 ME Rozenburg The Netherlands |
|
Latest data adjustment |
01 September 2024 |
