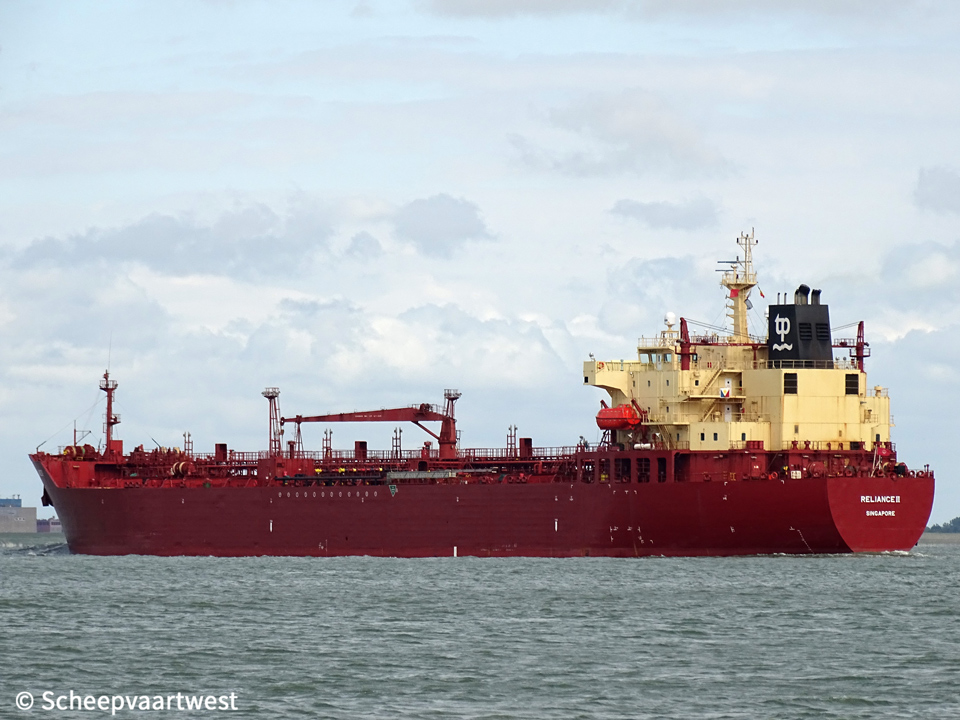

Westerschelde 05 July 2016 |
 |

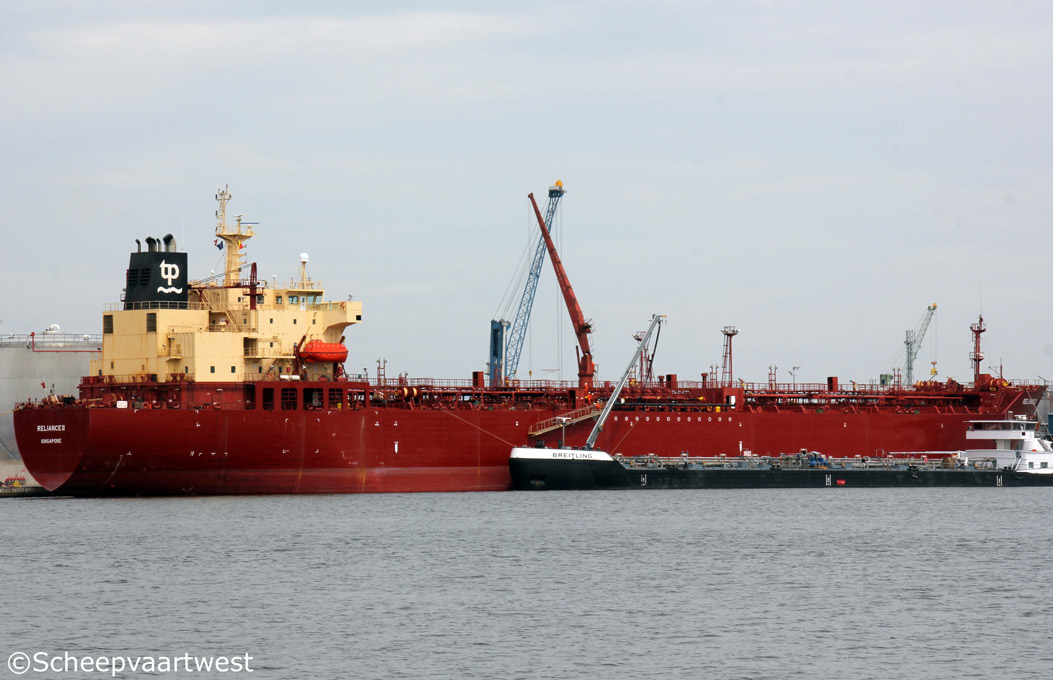

| Antwerpen 07/07/16 |
|
Name |
RELIANCE II |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9289764 |
|
Call sign |
9VJY5 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
30.032 t |
|
DWT |
Summer: 46.108 t |
|
NT |
11.108 t |
|
Length |
183,00 m overall 173,90 m between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
12,22 m |
|
Depth |
19,10 m moulded |
|
Speed |
14,5 knots |
|
Built |
2006 |
|
Keel laid |
28/01/2006 |
|
Launch date |
29/03/2006 |
|
Date of completion |
29/05/2006 |
|
Builder |
STX Offhore & Shipbuilding Co., Ltd. Changwon South Korea |
|
Yard number |
1165 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Transverse: 10 Longitudinal: 3 |
|
Main engine |
1x MAN-B&W 6S50MC-C - 6 cylinder combustion engine MCR 9.620 kW @ 127 rpm NCR 8.173 kW @ 120 rpm |
|
Propellers |
1x Mono-block propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, exhaust gas heated Builder: KangRim Industries. Co., Ltd. |
|
Generators |
3x MAN B&W diesel generatorsets |
|
Emergency generator |
1x Cummins diesel generatorset |
|
Bulkheads |
Transverse: 10 Longitudinal: 3 |
|
Number of tanks |
12 |
|
Tank capacity 98% |
52.219 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
1.394 m³ |
|
Segregation grades |
6 |
|
Pumps |
12x Cargo pumps each 600 m³/h 2x Hydraulically driven submerged |
|
Pump capacity |
3.600 m³/h |
|
Tank capacities |
Ballast: 24.082,6 m³ |
|
Anchor equipment |
Length: 631,80 m Diameter: 73 mm |
|
Manager |
Transpetrol TM AS Knud Askers vei 20B 1383 Asker Norway |
|
Owner |
Neptune Shipping Pte. Ltd. |
|
Renamed |
2020 Picton Marshall Islands, Majuro - Call sign: V7A2801 Owner: Fleetscape UM Picton LLC Manager: Synergy Maritime Pvt. Ltd. |
|
Latest data adjustment |
02 October 2020 |
