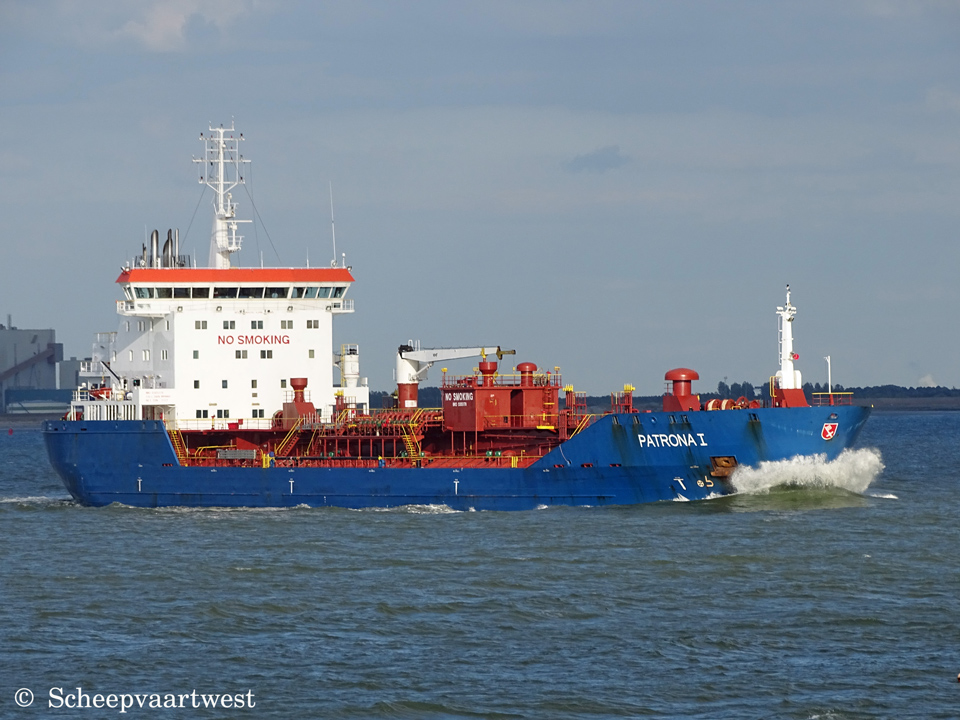

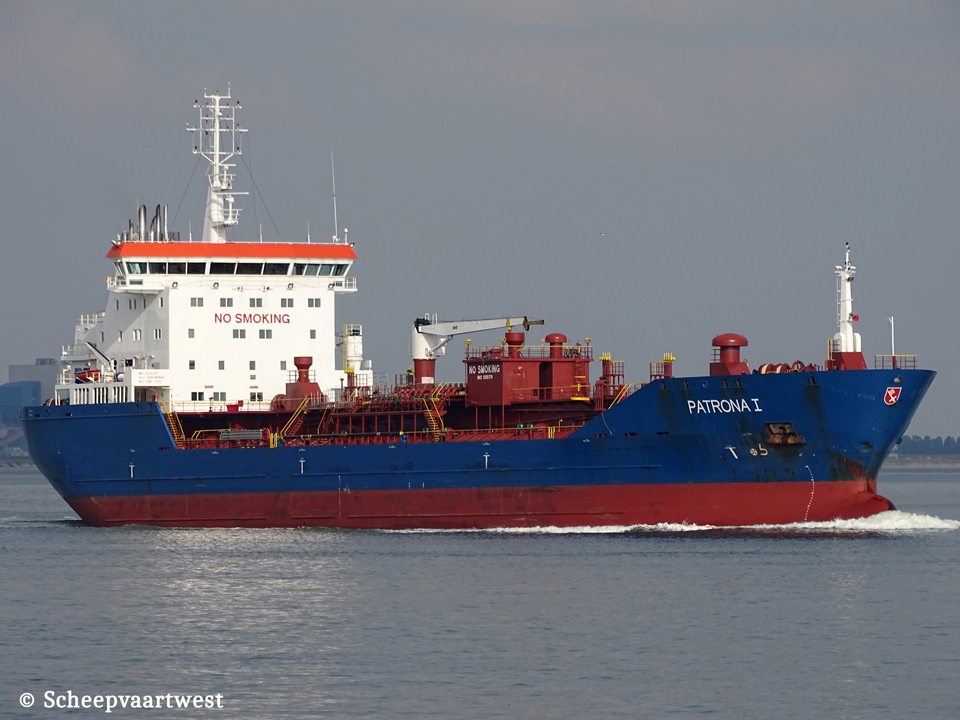

Westerschelde 11 May 2018 |
 |
 |
 |
||
| Westerschelde 11/05/18 | Westerschelde 08/08/18 | Antwerpen 07/07/16 | ||
|
Name |
PATRONA I |
|
Previous names |
2004 Built as: Patrona 2004 - 12/2014 Maersk Nordenham |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9305178 |
|
Call sign |
9HNA9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2004 - 2008 Cyprus, Limassol - Call sign: P3WK9 |
|
GT |
11.935 t |
|
DWT |
Summer: 16.716 t |
|
NT |
5.137 t |
|
Length |
144,16 m overall 133,80 m between perpendiculars |
|
Breadth |
23,34 m extreme 23,00 m moulded |
|
Draught |
Summer: 8,90 m |
|
Freeboard |
3.511 mm |
|
Depth |
12,40 m |
|
Speed |
Max.: 14,0 knots |
|
Built |
2004 |
|
Keel laid |
29/09/2004 |
|
Launch date |
22/02/2004 |
|
Date of completion |
25/11/2004 |
|
Builder |
Jiangnan Shipyard (Group) Co., Ltd. Shanghai China |
|
Yard number |
H2309 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6L48/60B - 4 stroke 6 cylinder combustion engine 6.300 kW |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite - Mission OC 1x Auxiliary boiler, oil/gas fired - Mission OM |
|
Shaft generator |
1x 1.875 kVA |
|
Generators |
2x Wärtsilä W4L20 main diesel generatorsets each 780 kW 1x Wärtsilä W6L20 main diesel generatorset 520 kW |
|
Emergency generator |
1x SISU 634 DSBG diesel generatorset 125 kVA |
|
Bow thruster |
1x 750 kW |
|
Number of tanks |
12 |
|
Total tank capacity 98% |
18.491 m³ |
|
Slop tank capacity 98% |
561 m³ |
|
Pumps |
Unloading capacity per tank: 300 m³/h Total unloading capacity: 2.100 m³/h |
|
Tank capacities |
Ballast: 8.180 m³ IFO: 580,3 m³ MGO: 74,8 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Operator |
Harren Tanker Management GmbH & Co. KG Hermann-Hollerith-Str. 10 28355 Bremen Germany |
|
Owner |
Harren & Partner Schiffahrts GmbH & Co. KG MS |
|
Registered owner |
Harren and Partner Schiffahrts GmbH & Co. KG MS Patrona |
|
Previous owners |
2004 - 2005 HARPA Shipping & Chartering GmbH & Co. KG |
|
Renamed |
2020 Patrona 1 Portugal, Madeira - call sign: CQED8 Owner: 42. Phoenix PCT UG (haftungsbeschränkt) & Co. KG MS "JUPITER" - Germany Manager: Harren Tanker Management GmbH & Co. KG - Germany |
|
Latest data adjustment |
16 May 2023 |
