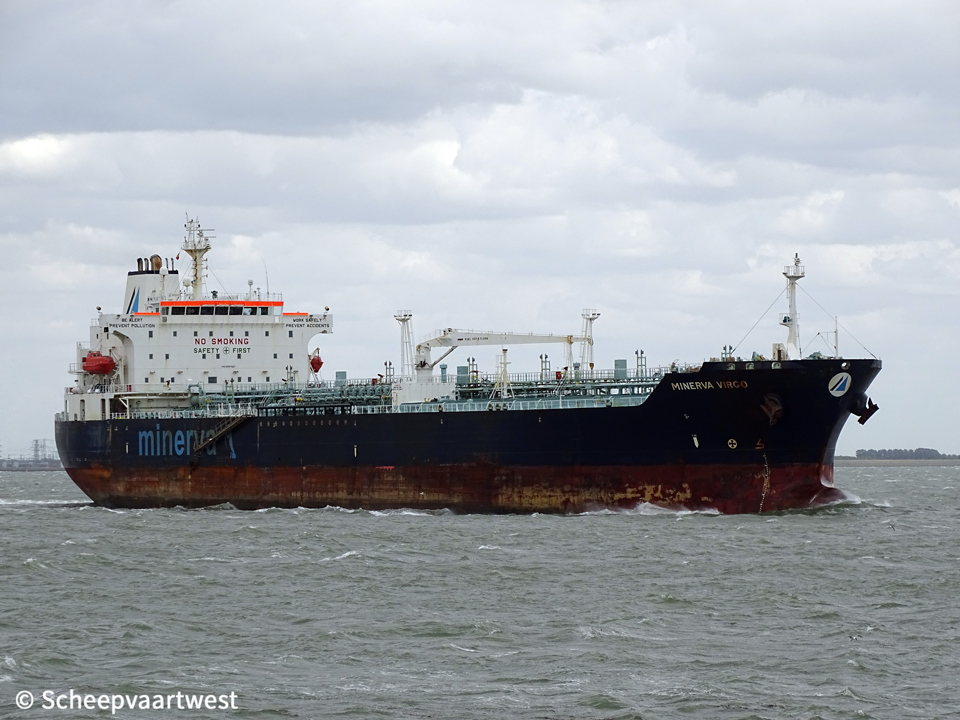

Minerva Virgo 02

Westerschelde 06 June 2020

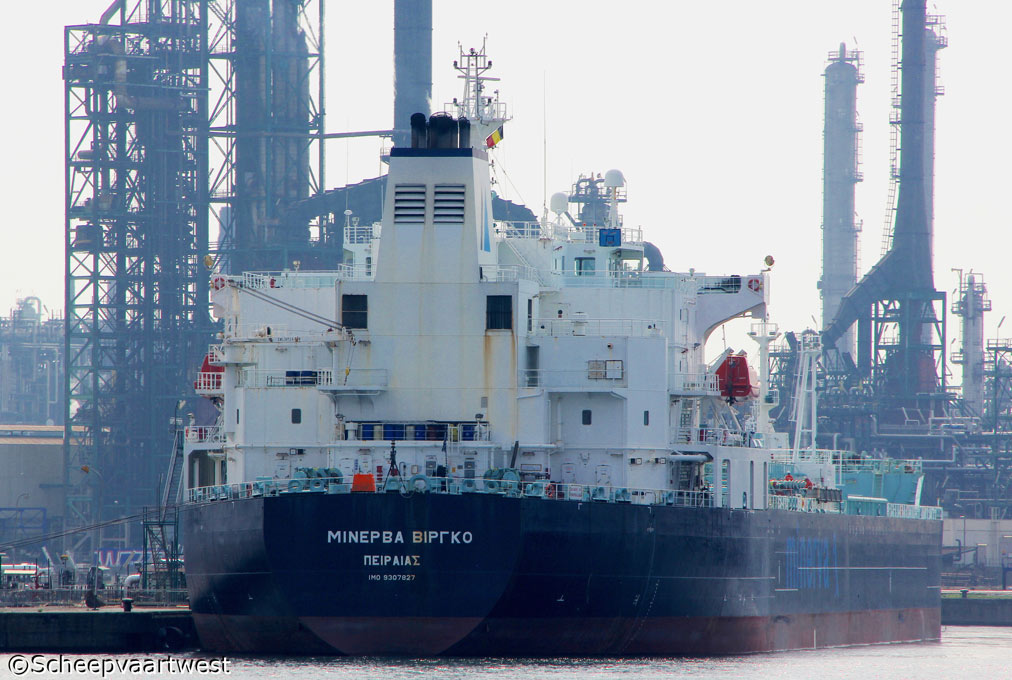

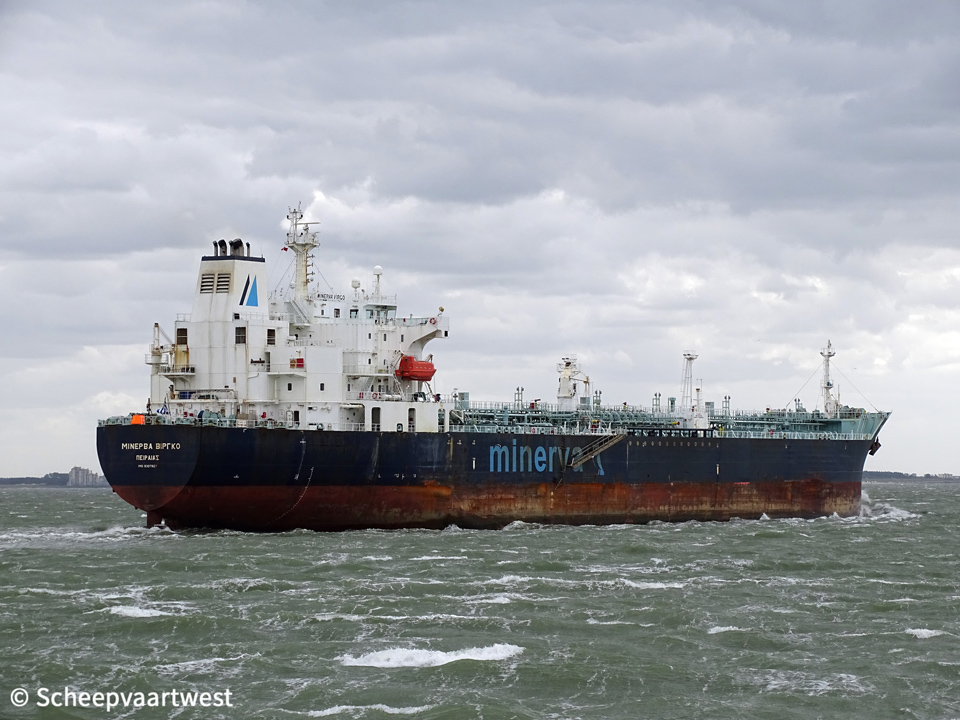

Minerva Virgo 03   Minerva Virgo 01
Westerschelde 06/06/20   Antwerpen 26/05/16













Name

MINERVA VIRGO

Hellenic name

ΜΙΝΕΡΒΑ ΒΙΡΓΚΟ

Type

Chemical carrier

IMO-number

9307827

Call sign

SXXT

Flag

Hellenic Republic

Port of registry

Piraeus

Previous flags

03/2006 - 02/2008 Malta, Valletta

GT

28.960 t registered

Suez: 31.154,35 t

DWT

Summer: 50.921,9 t

NT

13.291 t registered

Panama 24.950 t

Suez: 27.700 t

Light ship displacement

11.110,02 t

Length

183,00 m overall

173,90 m between perpendicular

175,38 m registered

Breadth

32,20 m moulded

Draught

13,29 m

Freeboard

5.842 mm

Depth

19,10 m moulded

Speed

Max.: 15,5 knots

Service: 14,5 knots

Built

2006

Keel laid

01/12/2005

Launch date

27/01/2006

Delivery date

28/03/2006

Builder

STX Offshore & Shipbuilding Co., Ltd.

60, Myeongje-Ro Jinhae-Gu

Changwon, 645-703

South Korea

Yard number

S-1187

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 10

Oil tight: 10

Continuous decks

1

Main engine

1x MAN 6S60MC-C - 2 stroke single acting 6 cylinder 600 x 2.400 mm diesel engine 13.560 kW / 18.436 bhp at 105,0 rpm

Manufacturer: STX Engine Co., Ltd. - South Korea

Propellers

1x Fixed pitch propeller- aft at 105,0 rpm

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Vertical composite boiler - 9,0 bar

1x Auxiliary boiler - 9,0 bar

Manufacturer: Aalborg Ind. Ltd.

Generators

3x Main diesel generatorsets each 900 kW

Manufacturer: Hyundai Heavy Ind. Co., Ltd.

Cargo oil tanks

12

Cargo tank capacity 100%

98%: 51.570 m³ excluding slop tanks

100%: 54.062,5 m³

Number of slop tanks

2

Slop tank capacity 98%

1.510,74 m³

Pumps

12x Framo cargo pumps each 600 m³/h

2x Framo cargo pumps each 300 m³/h

Number of tanks

Ballast: 10

Lubricating oil: 9

Fuel oil: 8

Diesel oil: 5

Chain: 2

Sludge: 2

Fresh water: 2

Sea water: 1

Slop: 1

Waste water: 1

Hydraulic oil: 1

Tank capacities

Diesel Oil: 227,6 m³

Freshwater: 420 m³

Fuel Oil: 1.327,6 m³

Lube Oil: 145,4 m³

Tank Ballast: 23.461,3 m³

Cargo gear

1x Engine room overhead lifting gear - SWL 4,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision Crane - SWL 3,4 t

Operator

Minerva Marine Inc.

141-143, Vouliagmenis Ave. & 1, Aiolou str.

16673 Voula

Athens

Greece

Registered owner

Armata Marine Inc.

Care of Minerva Marine Inc

141-143, Vouliagmenis Ave. & 1, Aiolou str.
16673 Voula

Athens

Greece

Latest data adjustment

23 October 2020
