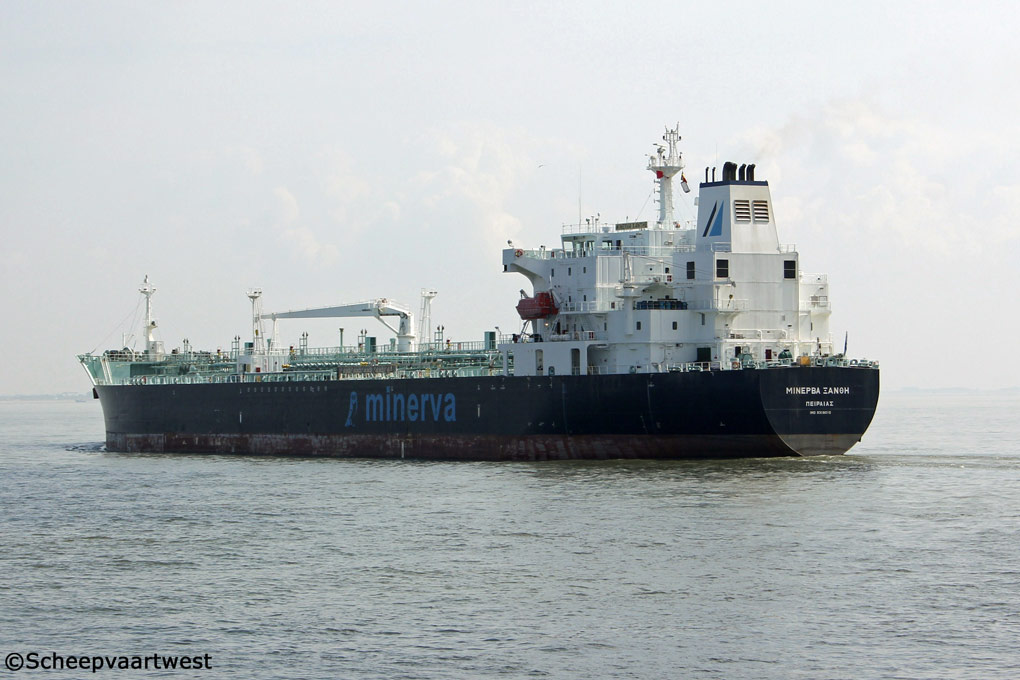

Minerva Xanthe 01

Westerschelde 20 August 2013



Name

MINERVA XANTHE

Hellenic name

ΜΙΝΕΡΒΑ ΞΑΝΘΗ

Type

Oil / chemical tanker

IMO-number

9318010

Call sign

SVBN6

Flag

Hellenic Republic

Port of registry

Piraeus

Previous flag

30.11.2006 - 20.05.2013 Republic of Malta - Valletta

GT

28.960 t registered

Suez: 32.200 t

DWT

Summer: 50.921,9 t

NT

13.673 t registered

Panama: 24.950 t

Suez: 27.700 t

Light ship displacement

11.110,02 t

Length

183,00 m overall

173,90 m between perpendiculars

Breadth

32,28 m moulded

Draught

13,29 m

Freeboard

5.842 mm

Depth

19,10 m moulded

Speed

14,7 knots

Built

2006

Keel laid

03.08.2006

Launch date

29.09.2006

Date of completion

30.11.2006

Builder

STX Offshore & Shipbuilding Co., Ltd.
Jinhae
South Korea

Yard number

S-1191

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 10

Oil tight: 10

Main engine

1x MAN B&W/STX 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm diesel engine - 13.560 kW / 18.420 bhp at 105,0 rpm

Manufacturer Name: STX Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

Composite Boiler Mission OC 1.2/1.2 - 9,0 bar

Heating Surface: 303.000 mm²

Auxiliary boiler Mission OL 18t/T - 9,0 bar

Heating Surface: 110.000 mm²

Manufacturer: Aalborg Ind. Ltd.

Generators

3x HFC6 508-84K main diesel generatorsets each 900 kW

Manufacturer: Hyundai Heavy Ind. Co., Ltd

Bow thruster

1x 950 kW

Number of cargo oil tanks

14

Cargo oil capacity 98%

51.451,90 m³ excluding slop tanks

Slop tanks capacity 98%

1.429,20 m³

Cargo pumps

12x Framo 600 m³/h each

2x Framo 300 m³/h each

Number of tanks

Cargo oil: 14

Ballast: 10

Lubricating oil: 9

Fuel oil: 8

Diesel oil: 5

Chain: 2

Sludge: 2

Fresh water: 2

Sea water: 1

Slop: 1

Waste water: 1

Hydraulic oil: 1

Tank capacities

Diesel oil: 227,60 m³ / 208,14 t

Freshwater: 420 m³

Fuel oil: 1.327,60 m³ / 1.340,49 t

Lube oil: 145,40 m³ / 131,13 t

Tank ballast: 2.3461,30 m³ / 24.047,83 t

Lifting equipment

1x Engine room overhead lifting gear - SWL 4,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision crane - SWL 3,4 t

Manager

Minerva Marine
Athens,
Greece

Owner

ATA Financing Inc.
C/O Minerva Marine Inc.

141-143 Vouliagemnis Ave. & Aeolou 1

Athens, 166 73

Greece

Registered owner

ATA Financing Inc.

Latest data adjustment

15 March 2014
