Westerschelde 02 April 2016 |
|
Name |

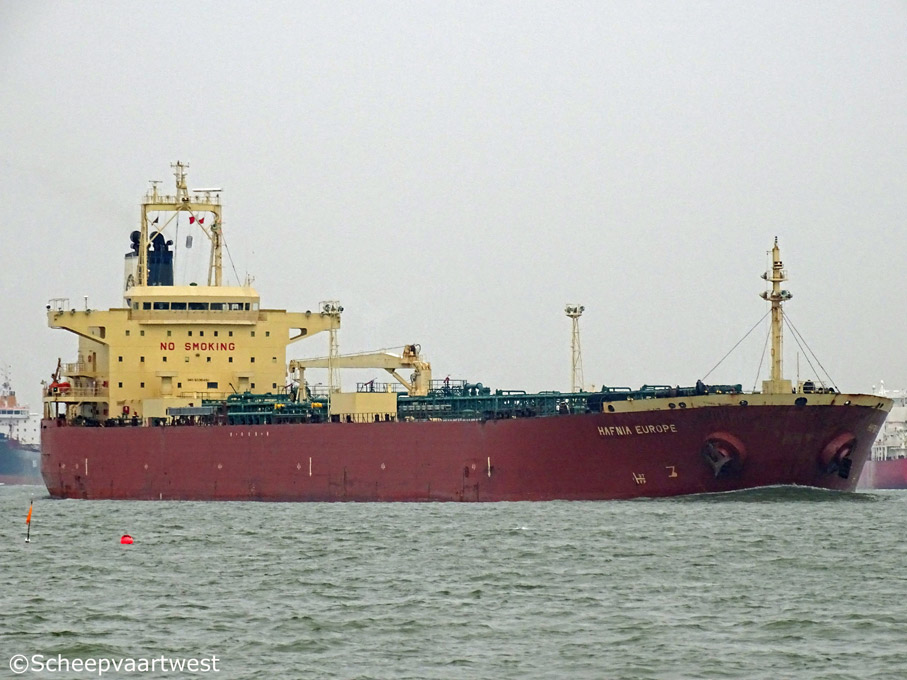

HAFNIA EUROPE |
|
Previous names |
2006 - 07.2014 Summit Europe |
|
Type |
Oil tanker |
|
IMO-number |
9336490 |
|
Call sign |
9V3234 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore |
|
Previous flags |
2006 - 2014 Cyprus, Limassol - Call sign: C4LK2 |
|
GT |
41.021 t Suez: 42.381,59 t |
|
DWT |
Summer: 74.997 t |
|
NT |
22.158 t |
|
Length |
228,49 m overall 218,90 m between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
14,33 m |
|
Keel to masthead |
50,24 m 49,24 m collapsed condition |
|
Air draft full mast |
Lightship: 45,13 m Normal ballast: 42,51 m At loaded summer deadweight: 35,88 m |
|
Freeboard |
Summer: 6.336 mm Winter: 6.635 mm |
|
Depth |
20,65 m moulded |
|
Speed |
Max.: Ballast: 17,2 knots Laden: 15,9 knots Economic: Ballast: 14,0 knots laden: 13,0 knots |
|
Built |
2006 |
|
Keel laid |
26.11.2004 |
|
Launch date |
26.03.2006 |
|
Date of completion |
18.08.2006 |
|
Builder |
Onomichi Dockyard Co., Ltd. Onomichi Shipyard |
|
Yard number |
517 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Akasaka Mitsubishi 6 UEC60LS II - 6 cylinder diesel engine 12.270 kW Manufacturer: Mitsubishi Heavy Industries, Ltd. |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired type MAC-35B 1x Auxiliary boiler, composite type OEVC2 150/135-19 |
|
Generators |
3x Yanmar 6N18AL-EV main diesel generatorsets each 600 kW |
|
Emergency generator |
1x Deutz F6L913C diesel generatorset |
|
Cargo tank capacity 98% |
Seg#1: 26.669,0 m³ (1p 1s 4p 4s slop s) Seg#2: 28.163,7 m³ (3p 3s 6p 6s) Seg#3: 29.703,1 m³ (2p 2s 5p 5s slop p) Total: 82.075,10 m³ excluding slop tanks |
|
Slop tank capacity 98% |
2.470,10 m³ |
|
Residual/Retention capacity 98% |
137,69 m³ |
|
Pumps |
6x Centrifugal cargo pumps each 2.000 m³/h 2x Centrifugal ballast pumps each 1.100 m³/h |
|
Manifolds |
Bow to centre manifold: 115,50 m Stern to centre manifold: 112,99 m Distance bridge front to centre of manifold: 76,04 m Distance between cargo manifold centres: 2.500 mm Distance manifold to ships side: 4.600 mm Distance ships rail to manifold: 4.375 mm Top of rail to centre of manifold: 700 mm Distance main deck to centre of manifold: 2.050 mm |
|
Tank capacities |
Ballast: 27.091,5 m³ Fuel oil: 1.775 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
Lifting equipment |
1x Crane - SWL 15,0 t midship |
|
Manager |
Donnelly Tanker Management Ltd. 32 Miltonos Street |
|
Technical operator |
Donnelly Tanker Management Ltd. |
|
Commercial operator |
Straits Tankers Pte. Ltd. (Copenhagen Office) |
|
Registered owner |
Hafnia Tankers Shipholding Singapore Pte. Ltd. |
|
Previous names & owners |
2006 - 07.2014 Summit Europe - Navmore Shipping Co. Ltd. |
|
Latest data adjustment |
26 May 2016 |
