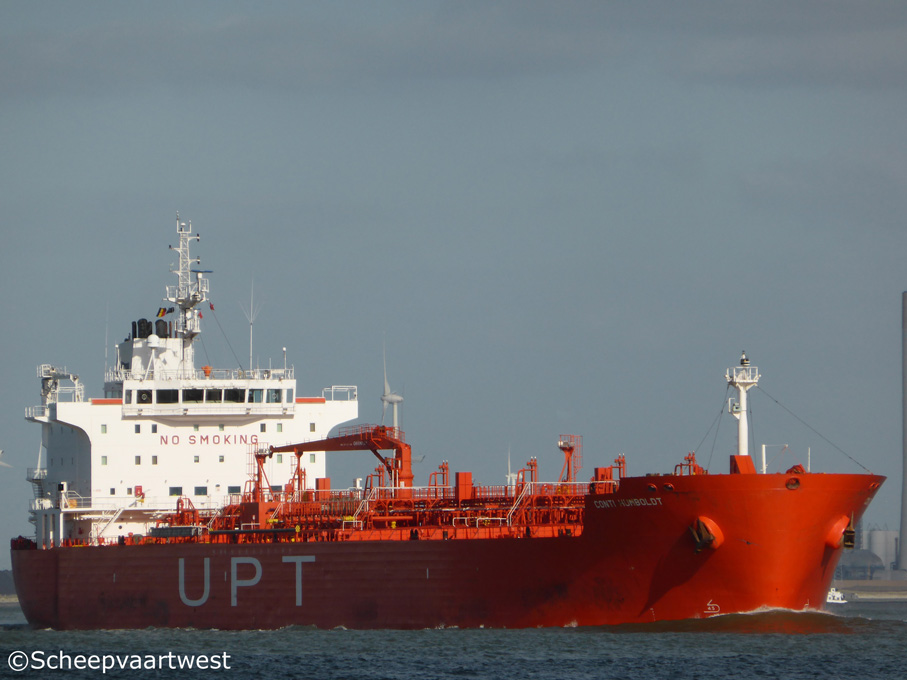

Conti Humboldt 01
Westerschelde 15 April 2014

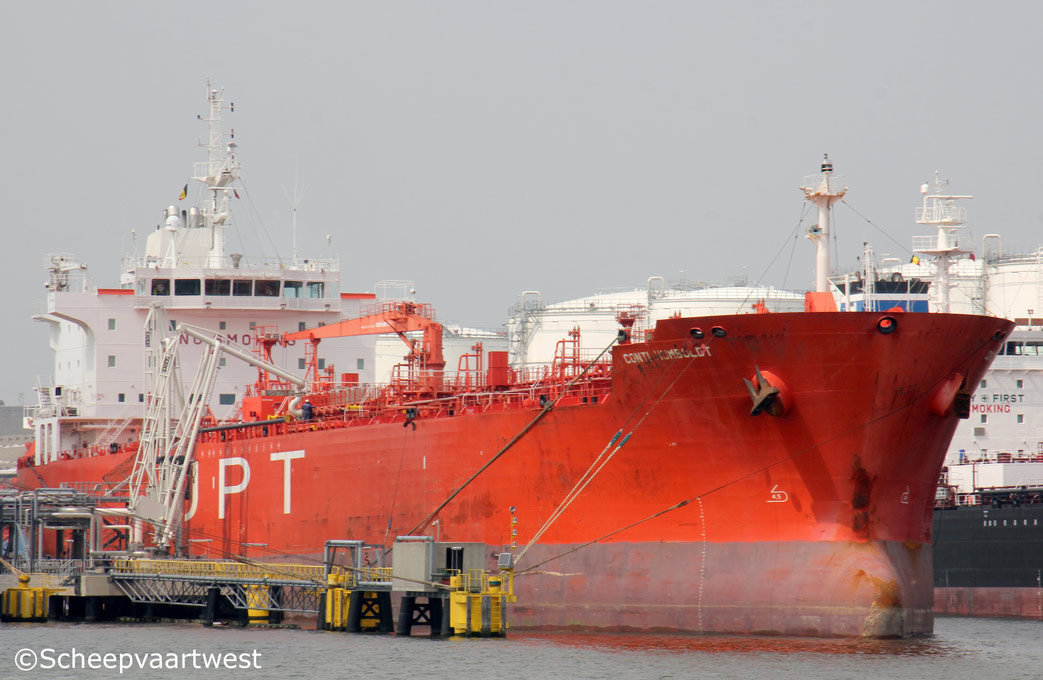

Conti Humboldt 02
26/05/16



Name

CONTI HUMBOLDT

Type

Tank for oil & chemicals

IMO-number

9391414

Call sign

A8QQ5

Flag

Liberia

Port of registry

Monrovia

GT

23.403 t

DWT

Summer: 37.602 t

NT

9.940 t

Suez: 21.003 t

panama: 19.493 t

Length

184,32 m overall

176,00 m between perpendiculars

Breadth

27,43 m extreme

27,30 m moulded

Draught

Summer: 11,32 m

Keel to mast end

46,60 m

Speed

15,0 knots

Built

2008

Keel laid

21.07.2008

Launch date

06.11.2008

Date of completion

10.12.2008

Builder

Hyundai Mipo Dockyard Co., Ltd.
Ulsan
South Korea

Yard number

H2060

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN B&W 6 S 46 MC-C - 6 cylinder diesel engine 7.860 kW

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, exhaust gas heated - Economizer

1x Auxiliary boiler, oil/gas fired - Mission OL

Generators

3x Hyundai 5H21/32 main diesel generatorsets

Number of tanks

14

Cargo tanks 98%

40.805

Slop tanks 98%

1.054 m³

Total tank capacity 98%

41.859 m³

Tank coating

Epoxy

Pumps

10x Each 500 m³/h

3x Each 300 m³/h

2x Each 200 m³/h

Manifolds

Bow centre manifolds: 92,72 m

Tank capacities

Ballast: 18.061,6 m³

Lifting equipment

1x Deck crane - SWL 10,0 t

Manager

NSB Niederelbe Schiffahrtsgesellschaft mbH & Co.

Operator

UTP - United Product Tankers GmbH & Co. KG
Rödingsmarkt 20
20459 Hamburg
Germany

Registered owner

Conti 150. Schifffahrts-GmbH & Co. KG MT "CONTI HUMBOLDT"

Latest data adjustment

12 May 2016
