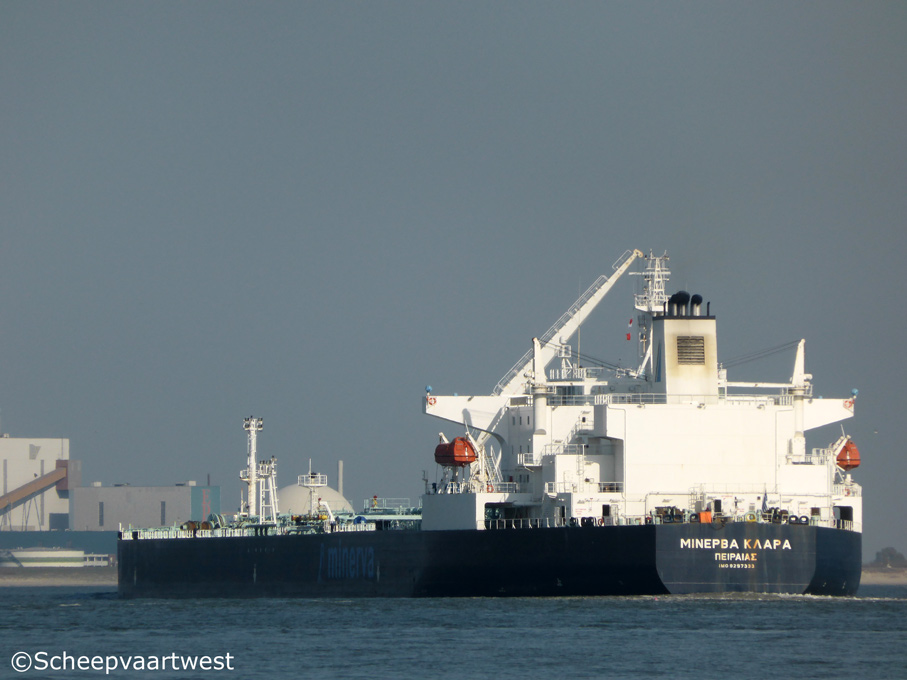

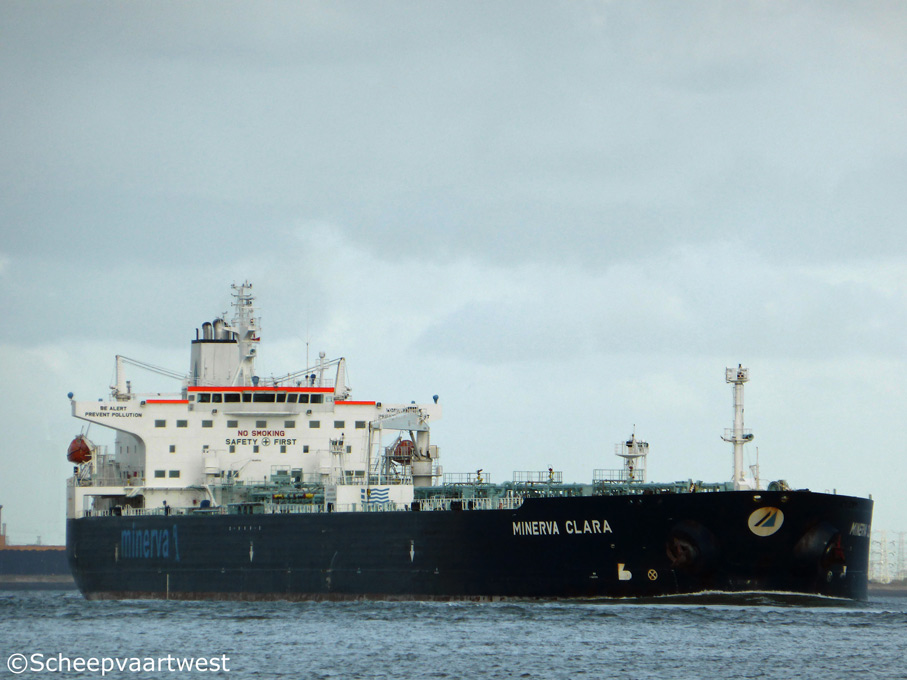

Westerschelde 18 April 2014 |
 |
| Westerschelde 16/04/14 |
|
Name |
MINERVA CLARA |
|
Hellenic name |
ΜΙΝΕΡΒΑ ΚΛΑΡΑ |
|
Type |
Aframax crude oil tanker |
|
IMO-number |
9297333 |
|
Call sign |
SXGT |
|
Flag |
Greece |
|
Port of registry |
Piraeus |
|
GT |
58.156 t registered Suez: 59.468,4 t |
|
DWT |
Summer: 103.231,6 t |
|
NT |
31.033 t registered Suez: 53.431,08 t |
|
Length |
243,57 m overall 233,00 m between perpendiculars |
|
Breadth |
42,00 m moulded |
|
Draught |
14,77 m |
|
Freeboard |
6.567 mm |
|
Depth |
21,30 m moulded |
|
Speed |
15,4 knots |
|
Built |
2006 |
|
Keel laid |
22.10.2004 |
|
Launch date |
30.12.2005 |
|
Deliver date |
15.03.2006 |
|
Builder |
Samsung Shipbuilding & Heavy Industries |
|
Yard number |
1507 |
|
Hull material |
High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non tight: 2 Water tight: 13 Oil tight: 1 |
|
Main engine |
1x MAN-B&W-Doosan 7S60MC - 2 stroke 7 cylinder diesel engine 14.511 kW / 19.460 bhp at 105,0 rpm Manufacturer: HSD Engine Co., Ltd. |
|
Propellers |
1x Fixed propeller |
|
Boilers |
2x Auxiliary Boilers type MAC-30B 1x Auxiliary Composite Boiler type Mission OC |
|
Generators |
3x Main diesel generatorsets each 980 kW |
|
Bow thruster |
1.100 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
120.101,9 m³ - 100% 113.317,0 m³ - 98% excluding slop tanks |
|
Number of slop tanks |
2 |
|
Slop tanks capacity |
4.395 m³ - 98% |
|
Cargo pumps |
3x capacity: 2.800 m³/h |
|
Number of tanks |
Ballast: 14 Fuel oil: 10 Lubricating oil: 10 Sludge: 6 Fresh water: 4 Diesel oil: 3 Chain: 2 |
|
Tank capacities 100% |
Diesel Oil: 163,3 m³ / 146,97 t Freshwater: 448,4 m³ Fuel Oil: 5.511,9 m³ / 5.401,66 t Lube Oil: 201,6 m³ / 181,44 Tank Ballast: 40.480,5 m³ / 41.492,51 t |
|
Lifting equipment |
1x Engine room crane - SWL 4,5 t 1x Hose handling crane - 15,0 t 2x Provision crane - SWL 4,0 t |
|
Manager |
Minerva Marine Inc. |
|
Registered owner |
Clara Special Maritime Enterprise |
|
Latest data adjustment |
13 May 2016 |
