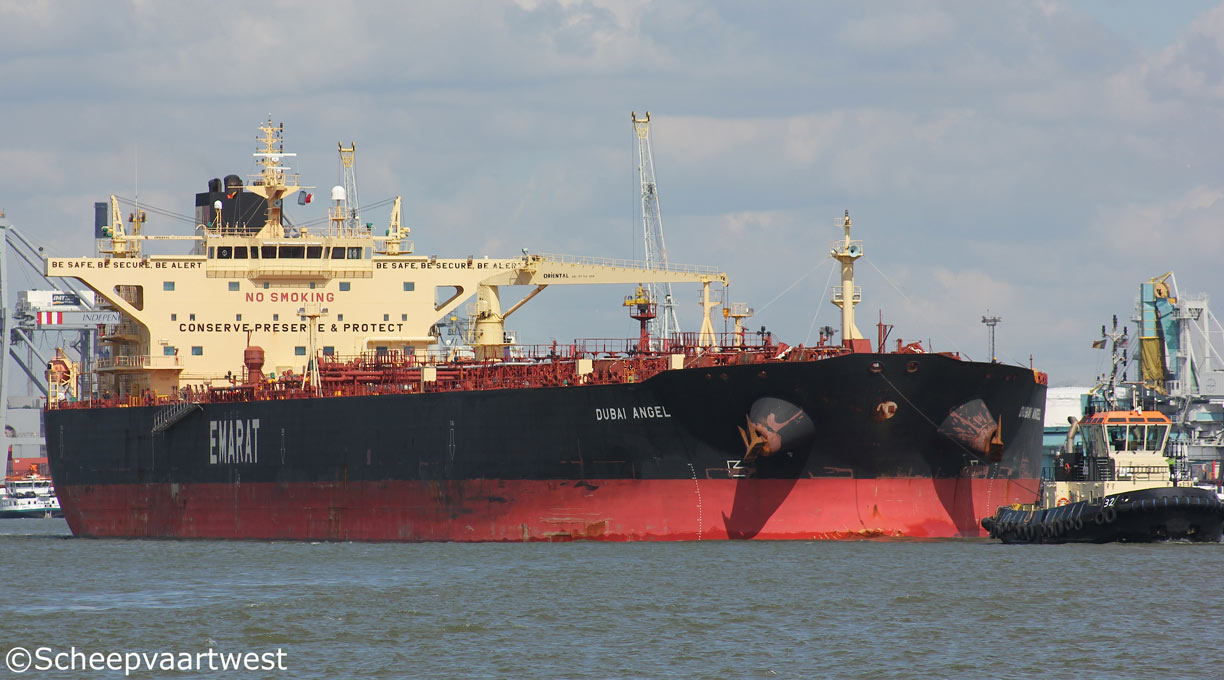

Dubai Angel 01

Antwerpen 27 April 2015

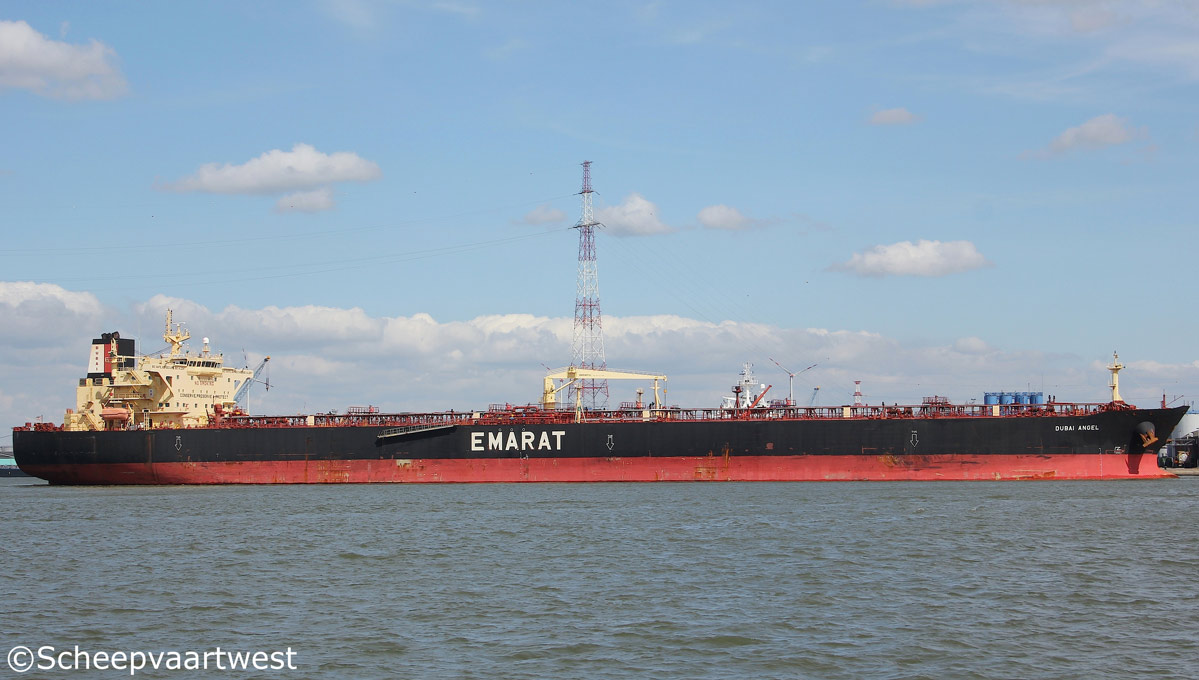

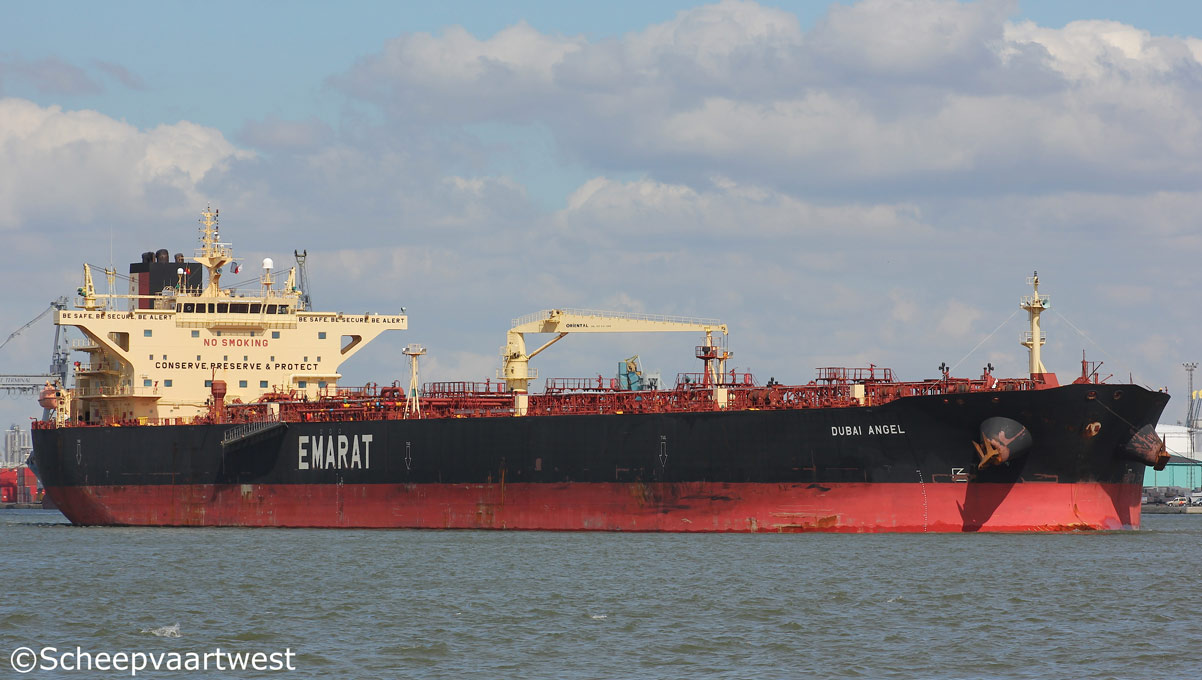

Dubai Angel 02   Dubai Angel 03
27/04/15   27/04/15



Name

DUBAI ANGEL

Type

Crude oil tanker

Aframax tanker

IMO-number

9422524

Call sign

V7TT6

Flag

Marshall Islands

Port of registry

Majuro

GT

63.299 t

Suez: 65.058,31 t

DWT

Summer: 99.999 t

NT

34.735 t

Suez: 58.879,83 t

Displacement

Summer: 119.374,90 t

Winter: 116.645,31 t

Length

250,00 m overall

239,00 m between perpendiculars

Breadth

44,00 m extreme

Draught

14,97 m

Air draft

Light ship: 46,25 m

Normal ballast: 41,28 m

At loaded summer deadweight: 33,79 m

Keel to masthead

48,78 m

Freeboard

Summer: 8.040 mm

Winter: 8.251 mm

Depth

21,35 m moulded

Speed

Ballast: 14,5 knots

Laden: 14,0 knots

Built

2010

Date of completion

15.09.2010

Builder

Hanjin Heavy Industries and Construction Co.,Ltd.
Busan,
South Korea

Yard number

208

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN B&W/HHI 6S60MC-C - 2 stroke single acting 6 cylinder diesel engine 13.560 kW / 18.424 hp

Propellers

1x Fixed pitch propeller

Generators

3x Daihatsu main diesel generatorsets each 740 kW

Number of cargo tanks

12x Centre tanks

Cargo tank capacity 98%

Seg#1: 40.978,24 m³ (COT 1 P&S, 4 P&S, Slop P&S)

Seg#2: 43.939,00 m³ (COT 2 P&S, 5 P&S)

Seg#3: 43.088,02 m³ (COT 3 P&S, 6 P&S)

Number of slop tanks

2

Pumps

3x Centrifugal cargo pumps 2.800 m³/h each

2x Centrifugal ballast pumps 1.500 m³/h each

Manifolds

Bow to centre manifold: 127,30 m

Stern to centre manifold: 122,70 m

Distance bridge front to centre of manifold: 80,20 m

Distance between cargo manifold centres: 2.500 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 500 mm

Distance main deck to centre of manifold: 2.050 mm

Tank capacities

Fuel oil: 2.800,77 m³

Diesel oil: 600,93 m³

Lifting equipment

1x Midship hose handling crane - SWL 15,0 t

Crew

19

Manager

Angel Maritime Inc.
Care of Emarat Maritime LLC
M1, Mezzanine Floor, Sharaf Building
Al-Mina Road
Dubai
United Arab Emirates

Technical operator

Emarat Maritime LLC
Mezzanine Floor, Sharaf Building
Mina Road
Dubai
United Arab Emirates

Commercial operator

Sigma Tankers Inc.
c/o Heidmar (Far East) Pte Ltd
65 Chulia Street #42-01

Registered owner

Angel Maritime Inc.
Trust Company Complex, Ajeltake Road, Ajeltake Island
Majuro
Marshall Islands

Disponent owner

Sigma Tankers Inc.
c/o Heidmar (Far East) Pte Ltd
65 Chulia Street #42-01

Latest data adjustment

01 February 2016
