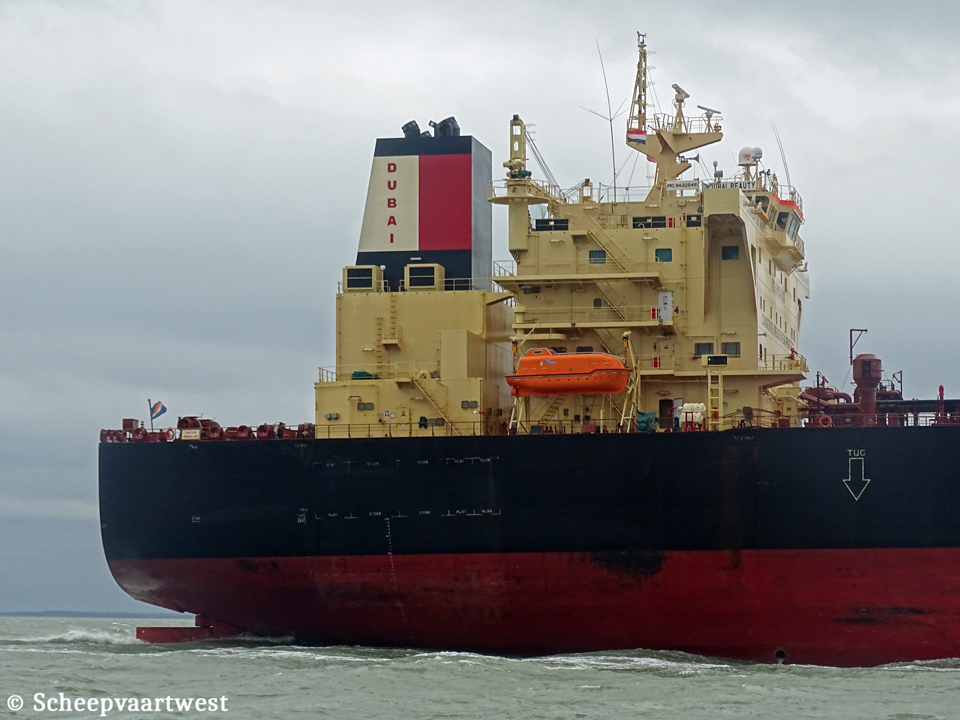

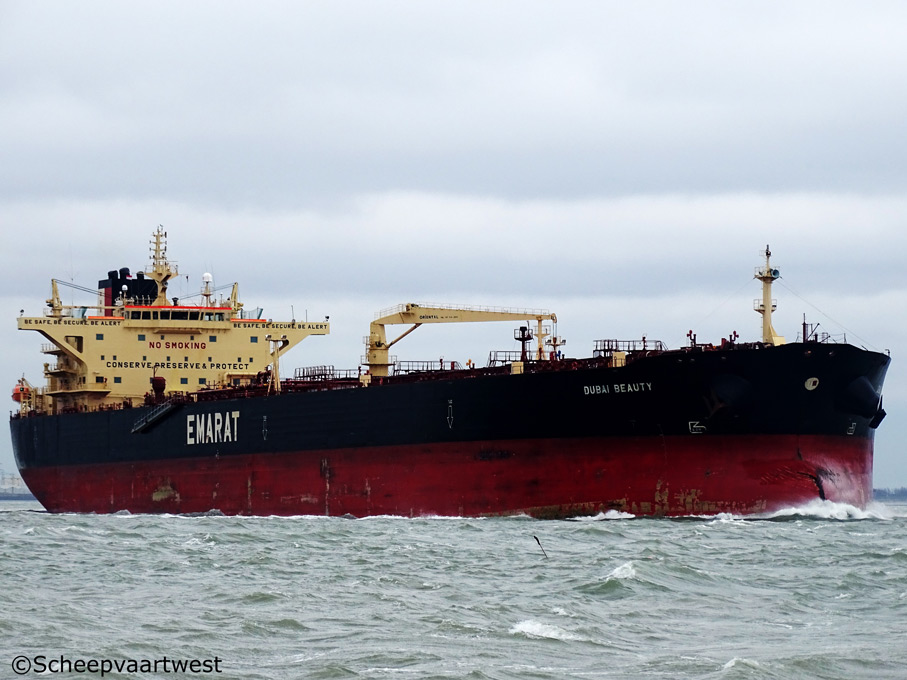

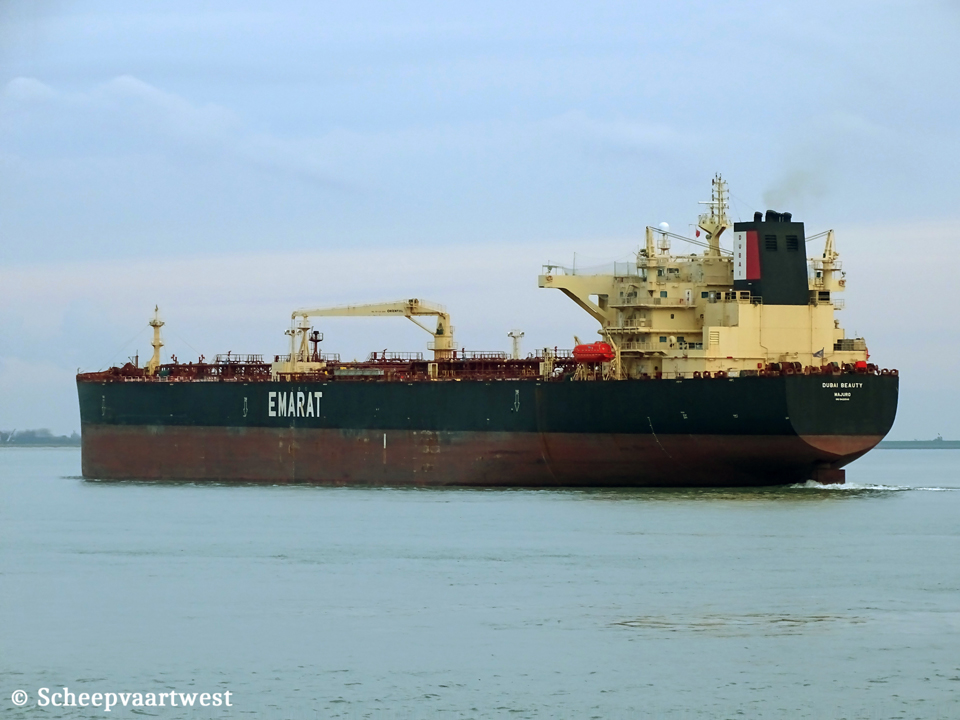

| Westerschelde 16 November 2015 |
|
 |
 |
 |
|||
| Westerschelde 16/11/15 | Westerschelde 18/09/12 | Westerschelde 16/11/19 | Westerschelde 16/11/15 | |||
|
Name |
DUBAI BEAUTY |
|
Type |
Crude Oil tanker / Product carrier |
|
IMO-number |
9422548 |
|
Call sign |
V7VO6 |
|
Flag |
Republic of Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
63.298 t registered |
|
DWT |
Summer: 115.382,3 t |
|
NT |
34.735 t registered |
|
Length |
250,00 m overall 239,00 m between perpendicular |
|
Breadth |
44,00 m |
|
Draught |
7,50 m |
|
Keel to masthead |
48,78 m |
|
Freeboard |
6.398 mm |
|
Depth |
21,35 m moulded |
|
Built |
2011 |
|
Keel laid |
25/05/2010 |
|
Launch date |
09/09/2010 |
|
Date of completion |
29/11/2011 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. South Korea |
|
Yard number |
N-210 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 2 Oil tight: 11 |
|
Number of decks |
1 |
|
Main engine |
1x MAN-B&W 6S60MC-C - 6 cylinder 600 x 2.400 mm combustion engine 13.560 kW at 105,0 rpm Manufacturer: HHI Engine & Machinery Division |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Division |
|
Steam piping system |
2x Auxiliary water tube boiler 1x Exhaust gas economizer Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x Diesel generatorsets Taiyo FE547B-8 each 740 kW Manufacturer: Taiyo Electric Co., Ltd. |
|
Number of cargo tanks |
14 |
|
Total cargo capacity 98% |
125.054,30 m³ excluding slop tanks Seg#1: 40.978,24 m³ (1 P &S,4P&S, Slop (P & S)) Seg#2: 43.939 m³ (2 P&S, 5 P & S) Seg#3: 43.088,02 m³ (3 P&S, 6P & S) |
|
Slop tanks 98% |
2.958,96 m³ |
|
Manifolds |
Bow to centre manifold (BCM): 127,30 m Stern to centre manifold (SCM): 122,60 m Distance bridge front to centre of manifold: 80,20 m Distance between cargo manifold centres: 2.500 m Distance ships rail to manifold: 4.750 mm Distance manifold to ships side: 4.750 mm Top of rail to centre of manifold: 500 mm Distance main deck to centre of manifold: 2.050 mm Manifold height above the waterline in normal ballast: 16,45 m |
|
Pumps |
3x Cargo centrifugal pumps each 2.800 m³/h 1x Stripping reciprocating pump 200 m³/h 1x Eductors pump Venturi 400 m³/h 2x Ballast centrifugal pumps each 1.500 m³/h |
|
Max. loading rate |
3.000 m³/h |
|
Number of tanks |
Water ballast: 16 Fuel oil: 9 Lubricating oil: 8 Fresh water: 3 Waste water: 3 Diesel oil: 2 Chain: 2 Sludge: 2 |
|
Tank capacities |
Diesel oil: 247,56 m³ Fresh water: 447,55 m³ Fuel oil: 3.518,68 m³ Lube oil: 221,19 m³ Tank ballast capacity: 42.380,39 m³ |
|
Lifting equipment |
1x Cargo hose handling crane - SWL 15,0 t 1x Engine room crane - SWL 4,0 t 2x Provision crane each SWL 4,0 t Manufacturer: Oriental Prec & Eng'g Co. |
|
ISM & commercial manager |
Emarat Maritime LLC Mezzanine Floor Sharaf Building Bur-Dubai Dubai United Arab Emirates |
|
Registered owner |
Beauty Maritime Inc. - Republic of Marshall Islands Care of: M1, Mezzanine Floor, Sharaf Building, Mina Road Dubai United Arab Emirates |
|
Latest data adjustment |
02 September 2022 |
