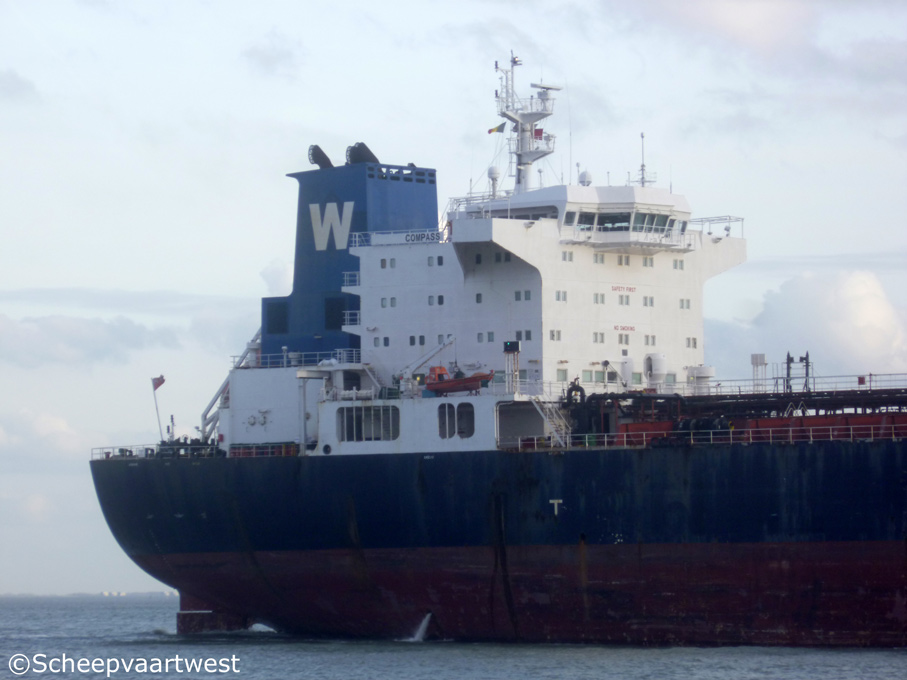

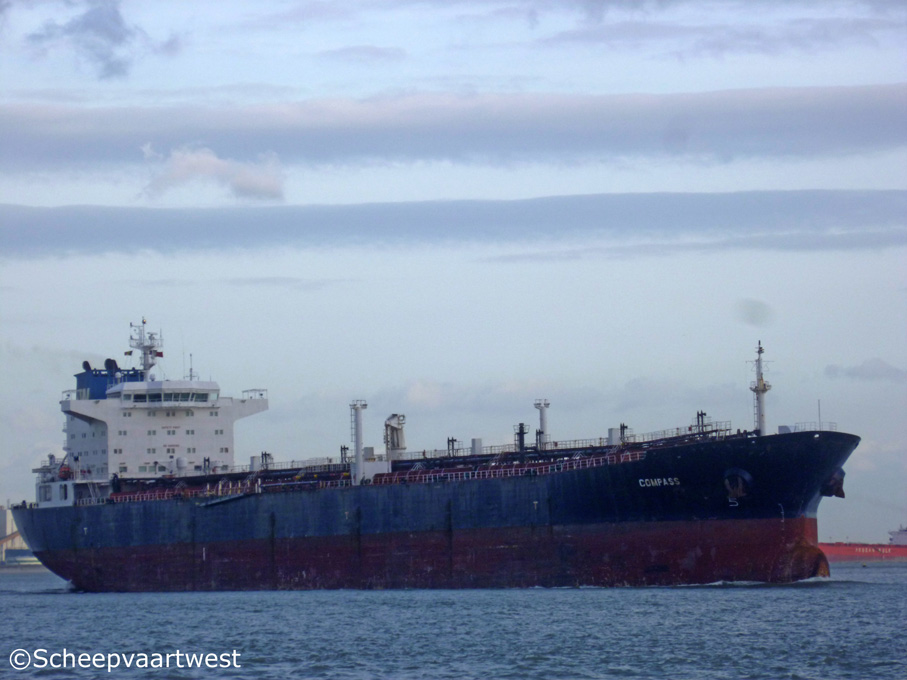

Westerschelde 23 February 2014 |
 |
| Westerschelde 23/02/14 |
|
Name |
COMPASS |
|
Previous names |
2006 - 12.2010 Stena Compass - Bermuda - Call sign: ZCDL3 12.2010 - 01.2012 Newlead Compass |
|
Type |
Oil product tanker - Panamax Tanker |
|
IMO-number |
9274094 |
|
Call sign |
9V2886 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
41.589 t |
|
DWT |
Summer: 72.736 t |
|
NT |
20.919 t |
|
Length |
228,60 m overall 219,00 m between perpendiculars |
|
Breadth |
32,23 m |
|
Draught |
14,42 m |
|
Air draft |
41,70 m lightship |
|
Keel to mast end |
49,65 m |
|
Depth |
20,60 m moulded |
|
Speed |
16,0 knots |
|
Built |
2006 |
|
Date of completion |
14.02.2006 |
|
Builder |
Dalian Shipbuilding Industry Group Dalian |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN B&W 6S60MC6 - 2 stroke single acting 6 cylinder diesel engine 16.402 bhp at 105,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Number of tanks |
12x Wing tanks |
|
Cargo tank capacity |
75.701 m³ Barrels: 476.149 |
|
Pumps |
3x Cargo pumps with a total capacity of 6.000 m³ |
|
Manifolds |
Manifold height above deck: 1,94 m Distance from bow to centre manifold: 113,72 m |
|
Tank capacities |
Water ballast: 27.194 t |
|
Manager |
BW Fleet Management Pte Ltd. Singapore |
|
Registered owner |
BW Silvermine Pte Ltd. |
|
Latest data adjustment |
24 January 2016 |
