Antwerpen 11 August 2015 |
|
Name |

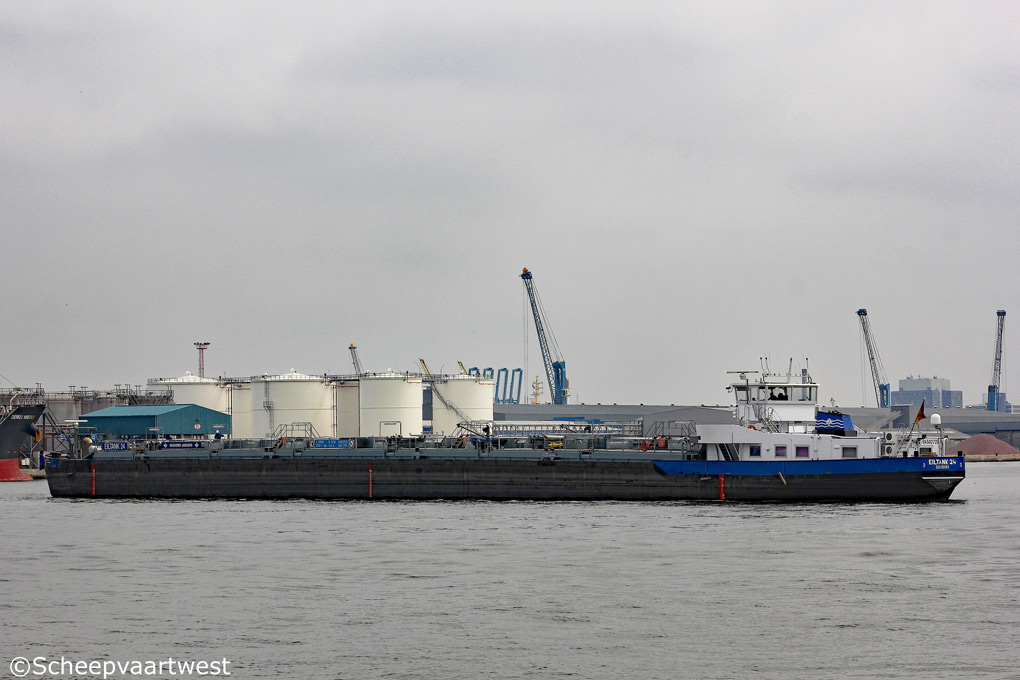

EILTANK 24 |
|
Previous names |
1983 Werde Rheintank 24 |
|
Type |
Inland tanker |
|
ENI-number |
04502720 |
|
Call sign |
DC4409 |
|
Flag |
Germany |
|
Port of registry |
Duisburg |
|
Tonnage |
2.467,68 t |
|
Length |
109,83 m |
|
Breadth |
10,50 m |
|
Draught |
3,20 m |
|
Depth |
3,90 m moulded |
|
Built |
1983 |
|
Keel laid |
17.01.1983 |
|
Launch date |
06.1983 |
|
Date of completion |
08.1983 |
|
Builder |
Bayerische Schiffbauges. mbH vorm. A. Schellenberger |
|
Yard number |
1089 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz SBV 6M 628 - 6 cylinder 240 x 280 mm diesel engine 850 kW at 750 rpm Transmission: Main propulsion acts through gear on the propellershaft Starter Type: compressed air direct Year of Manufacture: 1987 Manufacturer: Klöckner-Humboldt-Deutz AG |
|
Propellers |
1x Solid propeller - aft at 380 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Year of Manufacture: 1997 Manufacturer: Konus-Kessel Ges. f. Wärmetechnik mbH |
|
Electric installations |
1x Plant 380/ 220 V - 90 kVA 1x Plant 380/ 220 V - 38 kVA 1x Plant 24/ 220 V - 3,6 kW |
|
Generators |
1x Main diesel generatorset 90 kVA 1x Main diesel generatorset 38 kVA 1x Generator 3,6 kW |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 206 kW, forward |
|
Number of cargo tanks |
10 |
|
Manager |
Reederei Jaegers GmbH |
|
Owner |
Jaegers GmbH |
|
Registered owner |
Eiltank Tanktransport GmbH & Co. KG |
|
Previous names& owners |
1983 Werde - Erlenbacher Schiffswerft GmbH, Erlenbach - Germany Rheintank 24 - Stinnes Reederei AG in Dbg Ruhrort - Germany 1986 Eiltank 24 - Jaegers GmbH, Dbg-Ruhrort - Germany 2010 Eiltank 24 - Jaegers GmbH, Aschaffenburg - Germany |
|
Latest data adjustment |
14 December 2015 |
