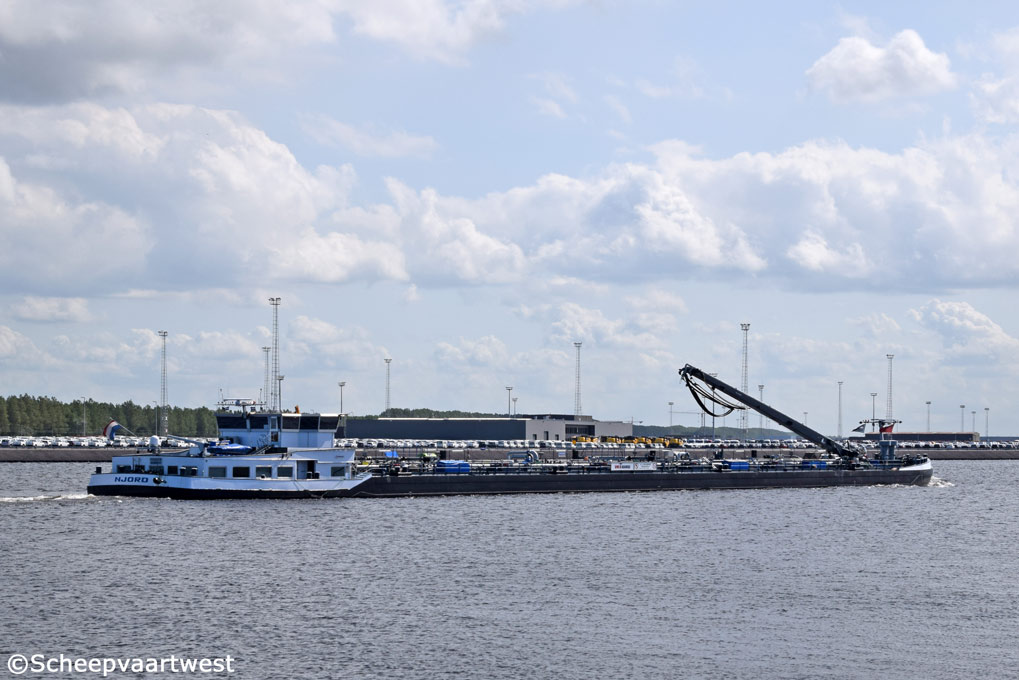

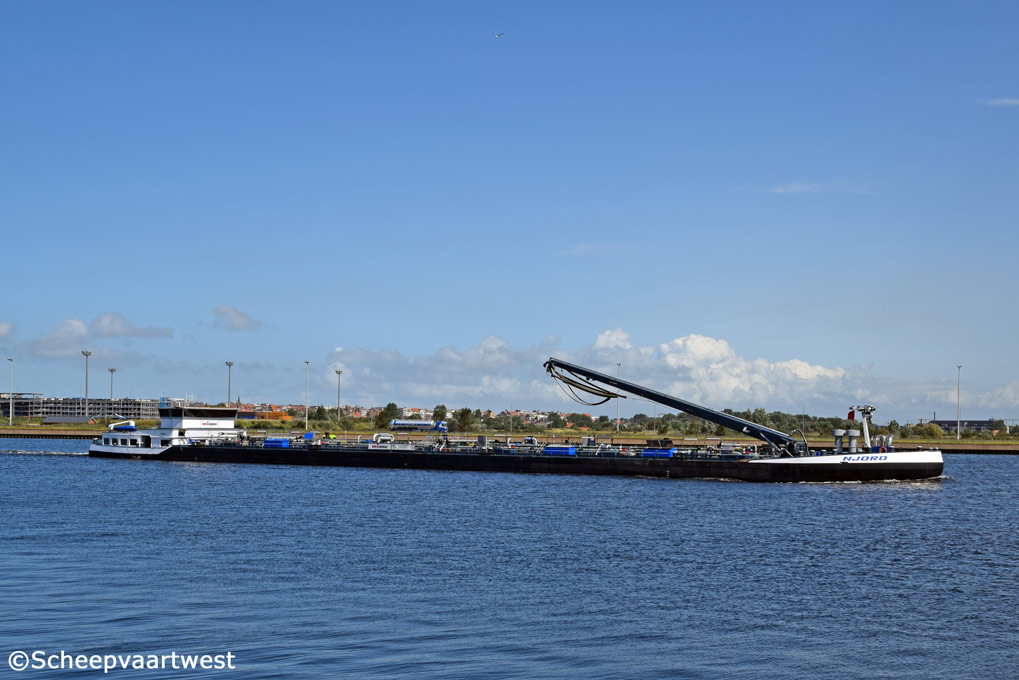

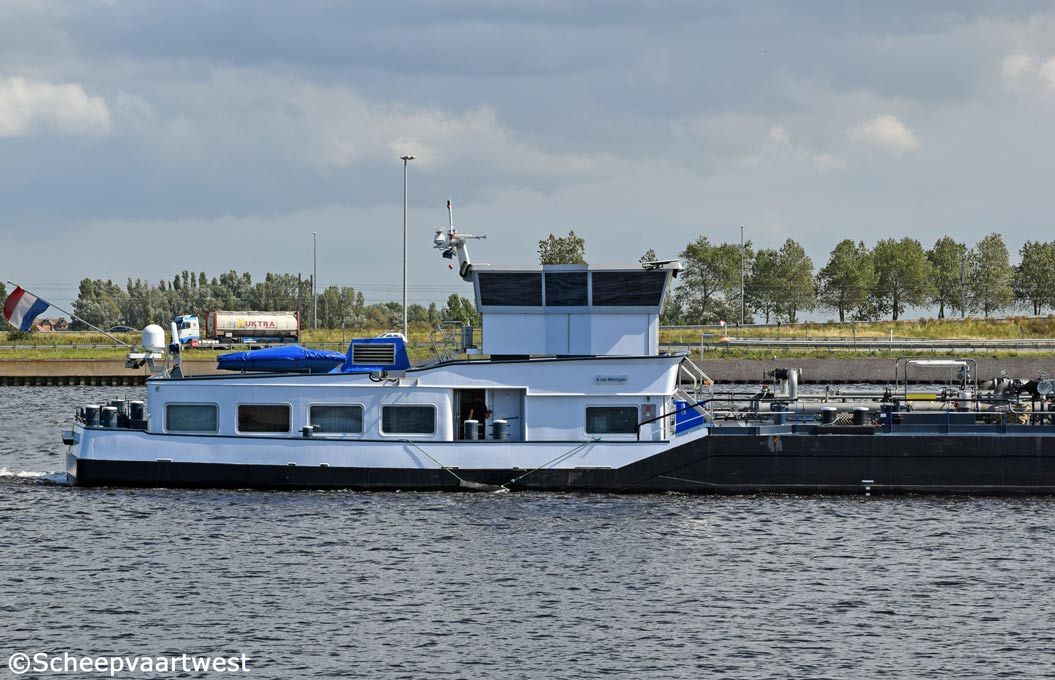

Zeebrugge 28 August 2015 |
 |
 |
|
| Zeebrugge 28/08/15 | Zeebrugge 28/08/15 | |
|
Name |
NJORD |
|
Type |
Inland tanker |
|
ENI-number |
02333237 |
|
Call sign |
PB2033 |
|
Flag |
The Netherlands |
|
Port of registry |
Zwijndrecht |
|
GT |
2.362 t |
|
DWT |
4.181 t |
|
Length |
110,00 m overall |
|
Breadth |
13,50 m |
|
Draught |
4,21 m |
|
Depth |
5,32 m |
|
Built |
2010 |
|
Date of completion |
17.06.2010 |
|
Builder casco |
Haitong Shipyard |
|
Builder completion |
TeamCo Shipyard BV |
|
Yard number |
142 |
|
Hull material |
Mild steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 (C) DI-TA electronic - 12 cylinder diesel engine1.350 kW / 1.836 hp at 1.600 rpm Builder: Caterpillar Inc.,Lafayette - USA |
|
Gearbox |
1x Reintjes type WAF 763L - reduction 5,136: 1 |
|
Propellers |
1x Screw propeller solid 5 blades - Diameter 1.800 mm |
|
Generators |
1x Caterpillar type c18 1 coupled with Stamford type hcm534d2 generator 385 kVA - 308 kW - 485 hp 1x Caterpillar type c32, 1coupled with Stamford type hcm534 generator 725 kVA - 580 kW - 668 hp 2x Caterpillar type C 4.4 diesel generatorsets each 86 kVA - 69 kW - 126 hp |
|
Bow thruster |
1x Caterpillar 608 hp - Veth-Jet type 4-K-1300 with electric motor 445 kW |
|
Cargo tank capacity 97% |
4.373 m³ |
|
Pumps |
3x Cargo pumps EPS type EPS400 each 400 m³/h each driving by ABB electric motor 200 kW 2x Slop pumps EPS10 each 10 m³/h each driving by ABB electric motor 7,5 kW |
|
Tank capacities |
Fuel oil: 100 m³ |
|
Charterer |
Unibarge B.V. |
|
Owner |
Vof. Njord |
|
Registered owner |
Scheepvaartbedrijf 'Njord' Vof |
|
Latest data adjustment |
07 October 2015 |
