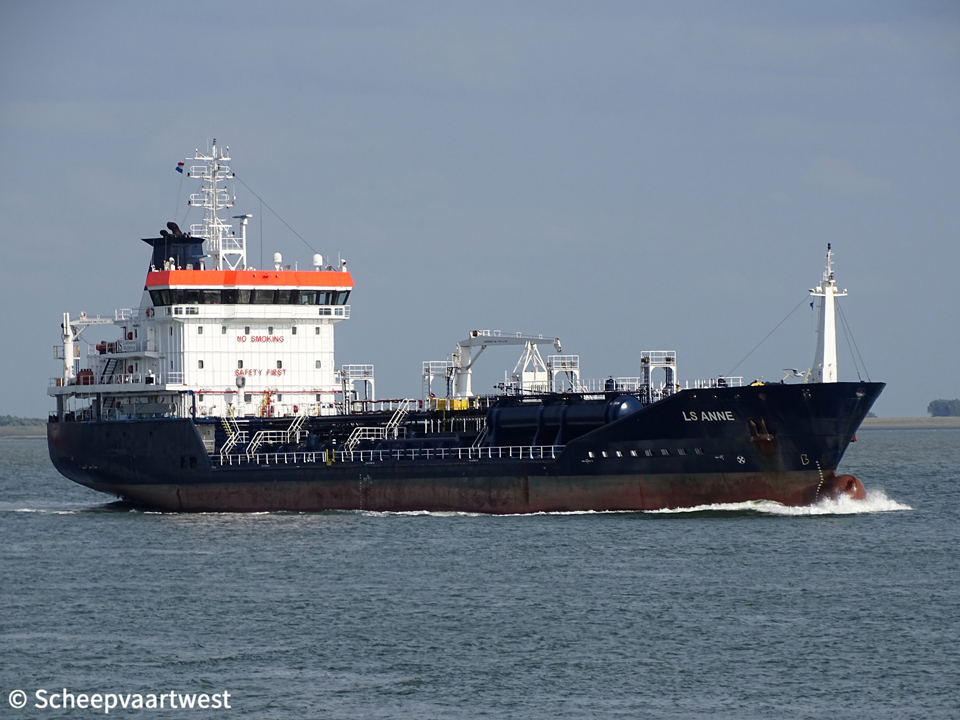

LS Anne 02

Westerschelde 06 August 2019

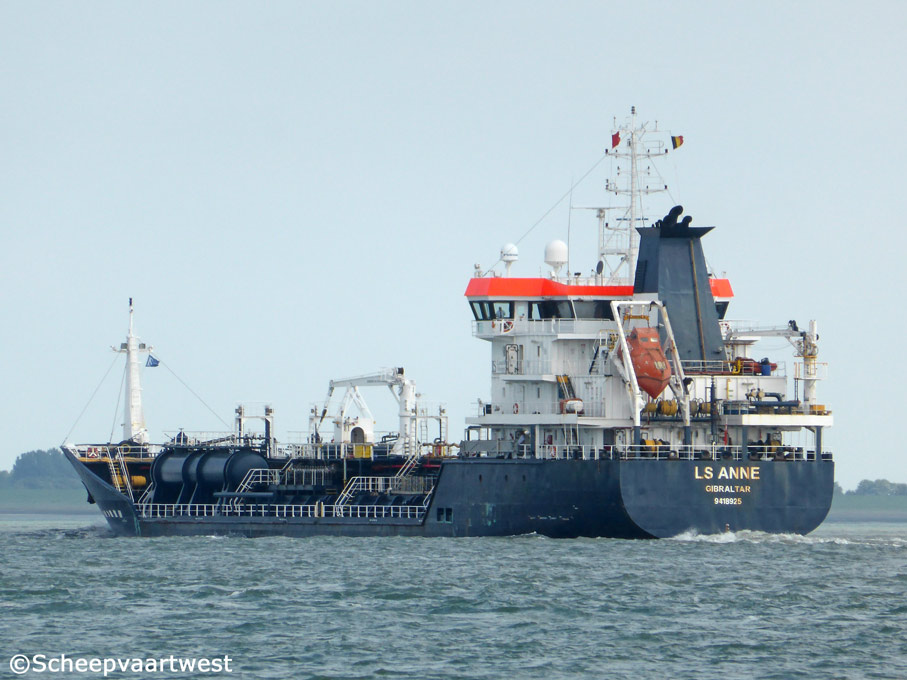

LS Anne 01
Westerschelde 09/09/15













Name

LS ANNE

Type

Oil tanker / Chemical tanker

IMO-number

9418925

Call sign

ZDIR2

Flag

Gibraltar

Port of registry

Gibraltar

GT

3.992 t

DWT

Summer: 5.757,1 t

NT

1.819 t

Length

105,50 m overall

99,40m between perpendiculars

Breadth

16,80 m moulded

Draught

Summer: 6,29 m

Ballast: 4,27 m

Air draft

29,30 m in ballast

27,28 m loaded

Freeboard

1.120 mm

Depth

7,40 m

Speed

14,0 knots

Built

2008

Date of completion

05/08/2008

Builder

Soli Shipbuilding Industry S.A.

Golcuk

Turkey

Yard number

04

Hull material

Steel

Hull type

Double hull

Main engine

1x MaK-Caterpillar - 4 stroke 6 cylinder 480 x 320 mm combustion engine 3.000 kW / 4.076 hp at 600 rpm

Propellers

1x Screw Propeller Controllable pitch

Boilers

2x CHO S-MAN 47,30 m² - 10,0 bar

1x CHR S-MAN 57,70 m² - 10,0 bar

Shaft generator

1x 950 kVA - 760 kW

Generators

3x MAN main diesel generatorsets each 462 kVA - 370 kW - 530 hp

Emergency generator

1x MAN diesel generatorset 125 kVA - 100 kW - 150 hp

Bow thruster

1x 300 kW

Number of cargo tanks

10

Total cap. of tanks 100%

6.420,61 m³

Number of slop tanks

2

Slop tanks 100%

164,00 m³

Cargo pumps

10x FRAMO hydraulic driven deepwell pumps each 350 m³/h

Slop pumps

2x FRAMO hydraulic driven deepwell pumps each 120 m³/h

Ballast pumps

2x Pumps each 250 m³/h

Manifolds

Distance from bow to centre manifold: 46,00 m

Distance from stern to centre manifold: 59,50 m

Distance between manifolds: 430 mm

Distance from ship side to manifold: 4.660 mm

Tank capacities

Fuel oil IFO: 250,76 m³

MGO: 65,34 m³

Ballast: 2.335,91 m³

Lifting equipment

1x Hose Crane - SWL 5,0 t

1x Hose Crane - SWL 2,0 t

Manager

Lauranne Shipping

Wervenweg 2

4551 MC Sas van Gent

The Netherlands

Registered owner

Crestar Shipping B.V.

c/o Lauranne Shipping

Wervenweg 2

4551 MC Sas van Gent

The Netherlands

Latest data adjustment

26 September 2020
