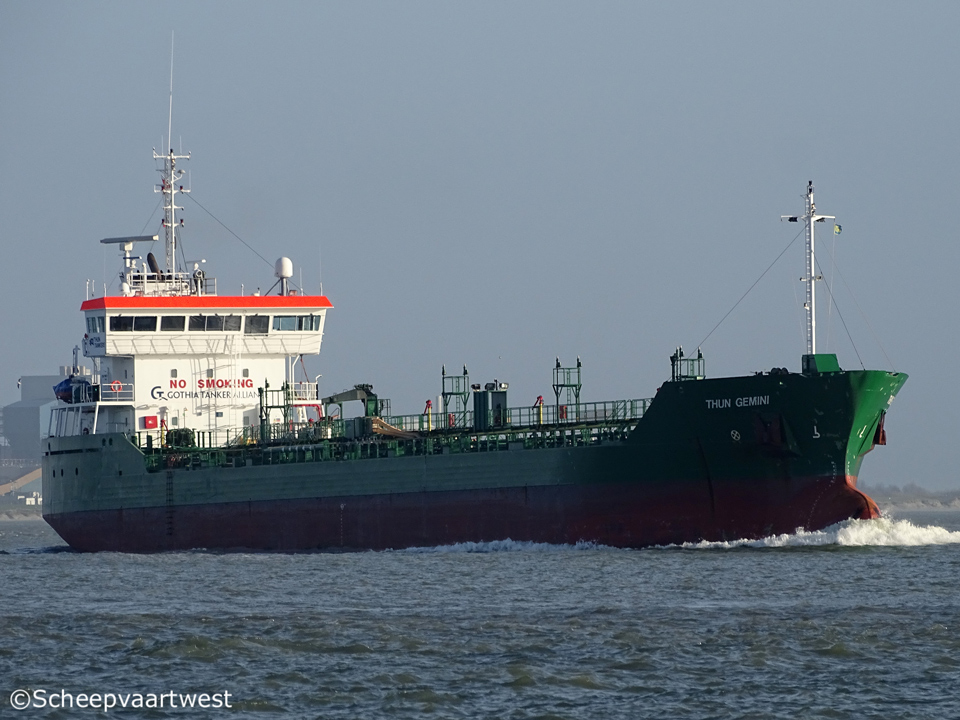

Westerschelde 18 December 2017 |
 |

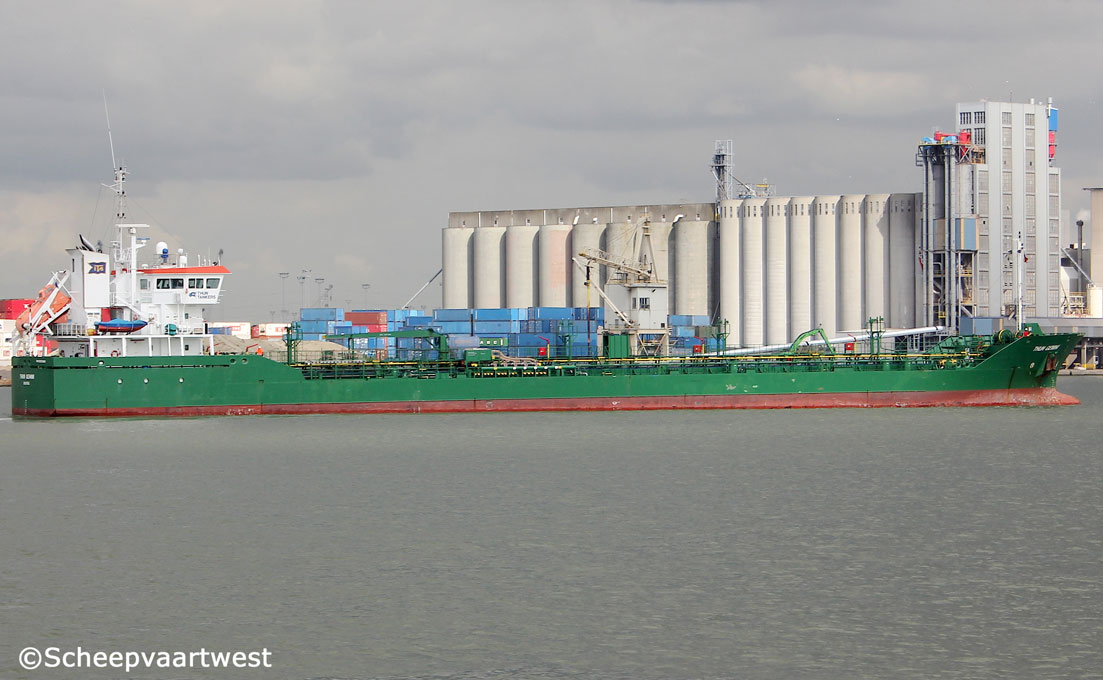

| Antwerpen 07/05/15 |
|
Name |
THUN GEMINI |
|
Previous names |
2003 - 01.2013 Bro Gemini |
|
Type |
Tank for oil and chemicals |
|
IMO-number |
9263590 |
|
Call sign |
PBJW |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous port of registry |
04.2003 - 25.01.2013 Farmsum |
|
GT |
4.107 t |
|
DWT |
Summer: 7.559 t |
|
NT |
2.136 t |
|
Length |
114,66 m overall 109,51 m between perpendiculars |
|
Breadth |
15,30 m extreme |
|
Draught |
Summer: 6,76 m |
|
Freeboard |
2.559 mm |
|
Depth |
9,30 m moulded |
|
Speed |
14,0 knots |
|
Built |
2003 |
|
Launch date |
08.02.2003 |
|
Date of completion |
28.03.2003 |
|
Builder |
Ferus Smit Scheepswerf B.V. The Netherlands |
|
Yard number |
340 |
|
Hull material |
Special steel |
|
Hull type |
Double hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6R32LNE - 4 stroke single acting 6 cylinder 320 x 350 mm diesel engine - 2.430 kW / 3.302 bhp at 720 rpm Built: 2002 Builder: Wärtsilä NSD Corporation, Vaasa - Finland |
|
Propellers |
1x Screw propeller controllable pitch - aft at 183 rpm |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 230 V Frequency: 60 Hz |
|
Shaft generator |
1x 450 kVA - 360 kW |
|
Generators |
3x Main diesel generatorsets each 328 kVA - 263 kW - 360 hp |
|
Emergency generator |
1x Diesel generatorset 54 kVA - 43 kW - 65 hp |
|
Number of cargo tanks |
9 |
|
Total capacity of tanks |
8.064 m³ |
|
Cargo handling |
9x Pumps 2.142 m³/h |
|
Manager |
Marin Ship Management B.V. |
|
Previous managers |
04.2003 - 25.01.2013 Marin Ship Management B.V., Farmsum - The Netherlands |
|
Commercial operator |
Thun Tankers |
|
Registered owner |
Thun Tankers BV |
|
Previous names & owners |
04.2003 - 25.01.2013 Bro Gemini - Rederij Bro Gemini, Delfzijl - The Netherlands |
|
Latest data adjustment |
19 June 2015 |
