Antwerpen 12 March 2015 |
|
Name |

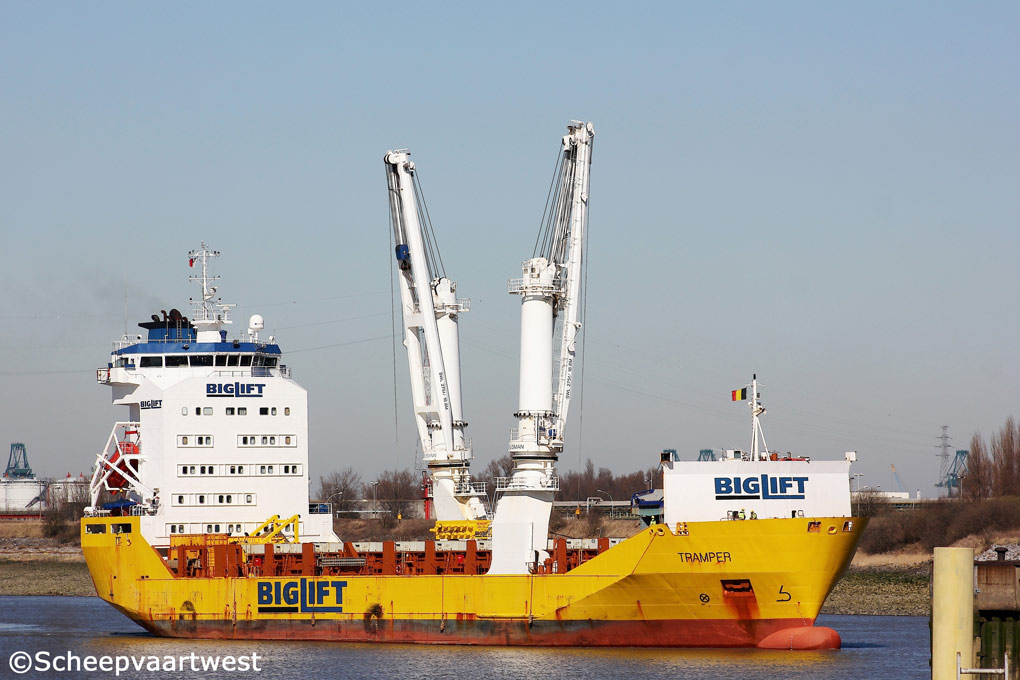

TRAMPER |
|
Type |
General cargo ship - strengthened for heavy cargoes - Container ship |
|
IMO-number |
9204697 |
|
Call sign |
PHAA |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
Previous flags |
05.1999 - 07.2004 Netherlands Antilles, Willemstad - Call sign: PJCI |
|
GT |
6.714 t |
|
DWT |
Summer: 8.734 t |
|
NT |
2.893 t |
|
Number of 20ft containers |
621 |
|
Reefer capacity |
24 |
|
Length |
100,42 m overall 94,82 m between perpendiculars |
|
Breadth |
20,40 m |
|
Draught |
Summer: 8,20 m |
|
Freeboard |
2.911 mm |
|
Depth |
11,10 m |
|
Speed |
16,5 knots |
|
Built |
1999 |
|
Date of completion |
05.1999 |
|
Builder |
Hudong Zhonghua Shipbuilding Group |
|
Yard number |
405 |
|
Hull material |
Steel |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 8L46B - 4 stroke single acting 8 cylinder 460 x 580 mm diesel engine - 7.800 kW / 10.598 hp Builder: Wärtsilä Finland OY, Turku - Finland |
|
Propellers |
1x Screw propeller controllable pitch - aft at 146 rpm |
|
Boilers |
1x CHO GEKA 45,50 m² - 10,0 bar |
|
Electric installations |
Power voltage: 450 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Shaft generator |
1x 1.340 kVA - 1.072 kW |
|
Generators |
3x Main diesel generatorsets each 685 kVA - 548 kW - 815 hp |
|
Emergency generator |
1x Diesel generatorset 135 kVA - 108 kW - 152 hp |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
1 |
|
Heights in hold |
Total: 11,75 m tween deck not installed |
|
Hold capacity |
Grain: 10.530 m³ tween deck not installed Bale: 9.720 m³ tween deck not installed |
|
Hatch openings |
Weather deck: 64,40 x 15,30 m Tween deck: 64,40 x 15,30 m |
|
Floor space |
Weather deck: 1.330 m² Tween deck: 974 m² Tank top: 850 m² |
|
Allowable loads |
Weather deck hatch covers: 3,0 t/m² Tween deck hatch covers: 3,0 t/m² tank top: 15,0 t/m² |
|
Cargo gear |
2x Huisman cranes - SWL 275 t Combinable: 500 t |
|
Crew |
14 |
|
Manager
|
2012 BigLift |
|
Previous managers |
05.1999 Graig Ship Management Ltd. 07.2004 Big Lift Shipping B.V., Amsterdam - The Netherlands |
|
Owner |
2012 Rederij Tramper |
|
Previous owners |
05.1999 West African Shipping Co. 07.2004 Tramper B.V., Amsterdam - The Netherlands |
|
Latest data adjustment |
15 April 2015 |
