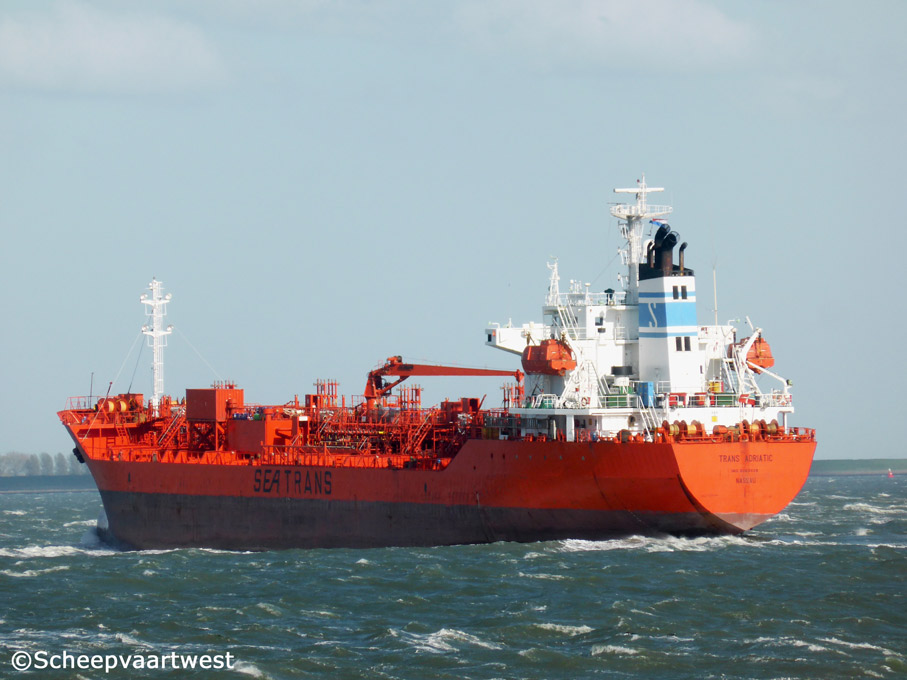

| Westerschelde 05 July 2017 |
 |
 |
 |
 |
 |
 |
|||||

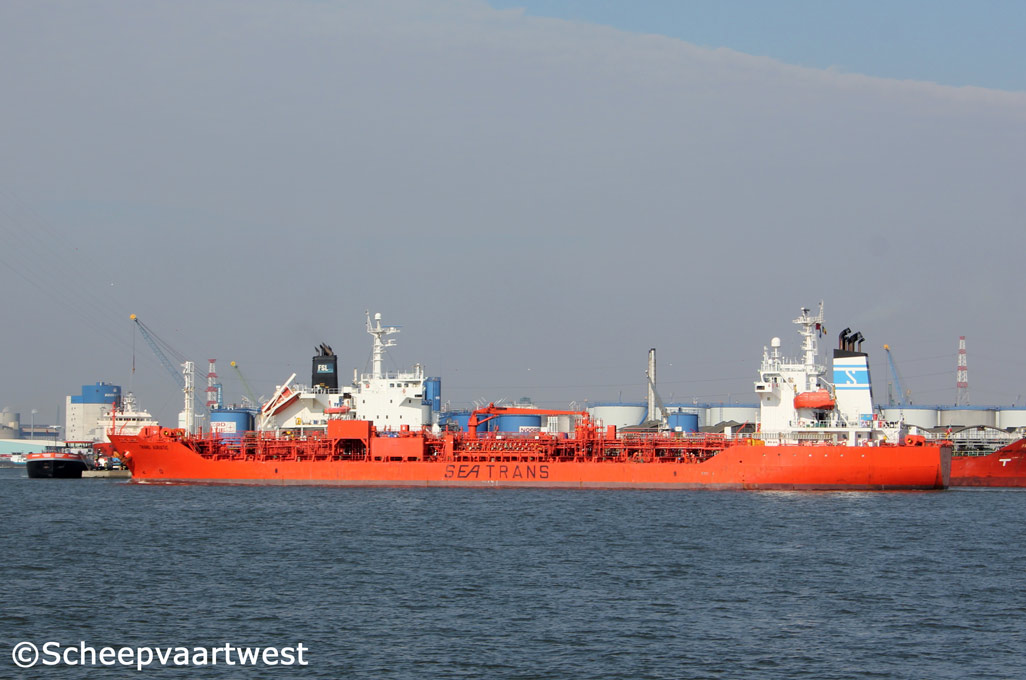

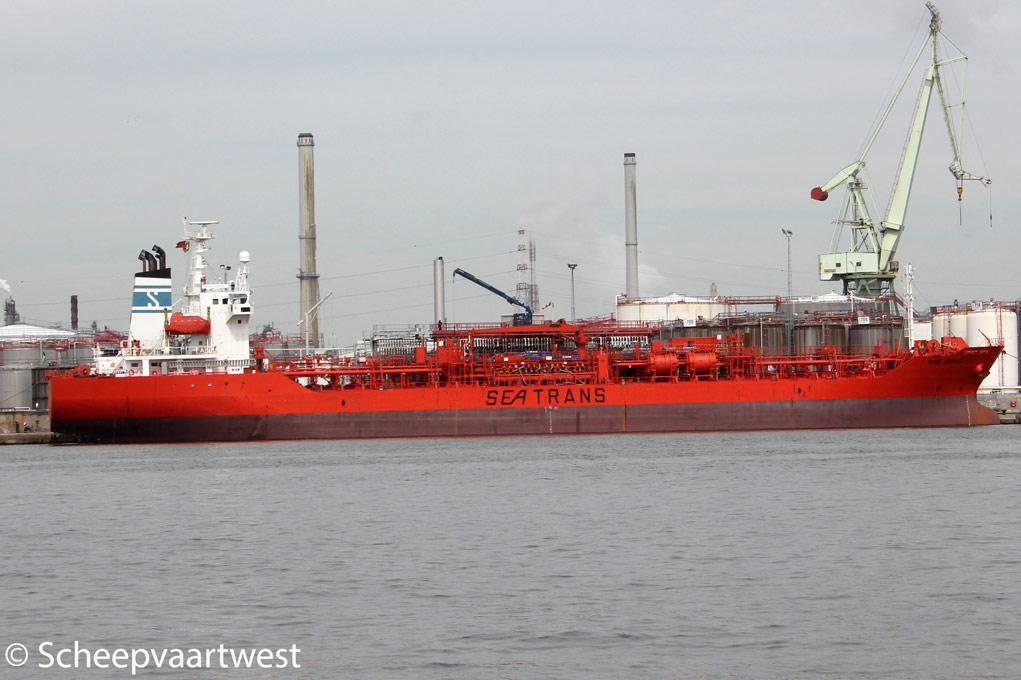

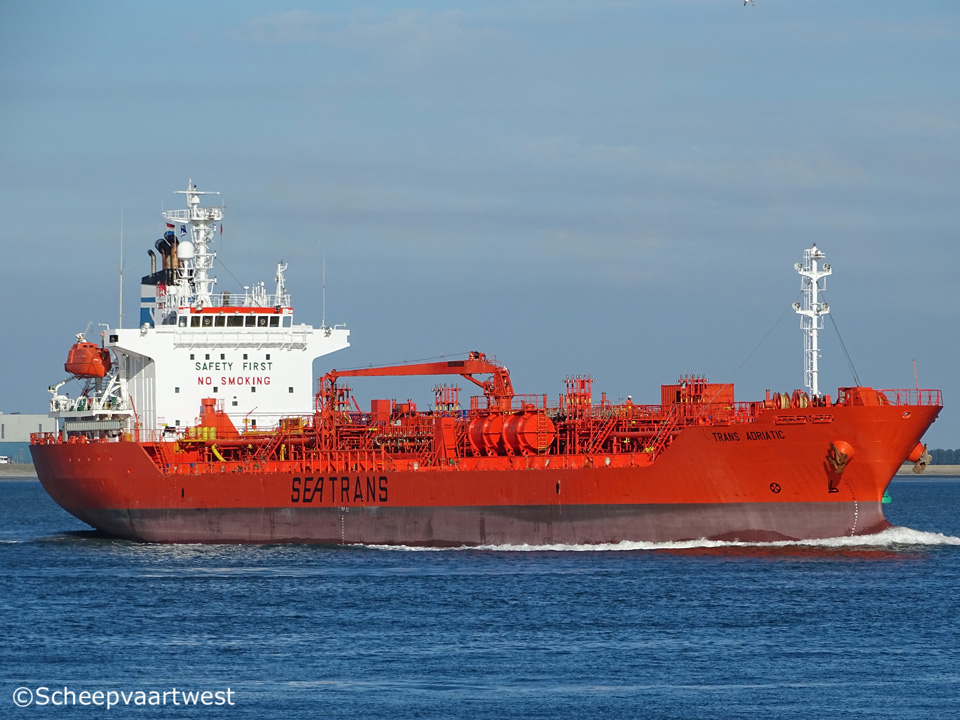

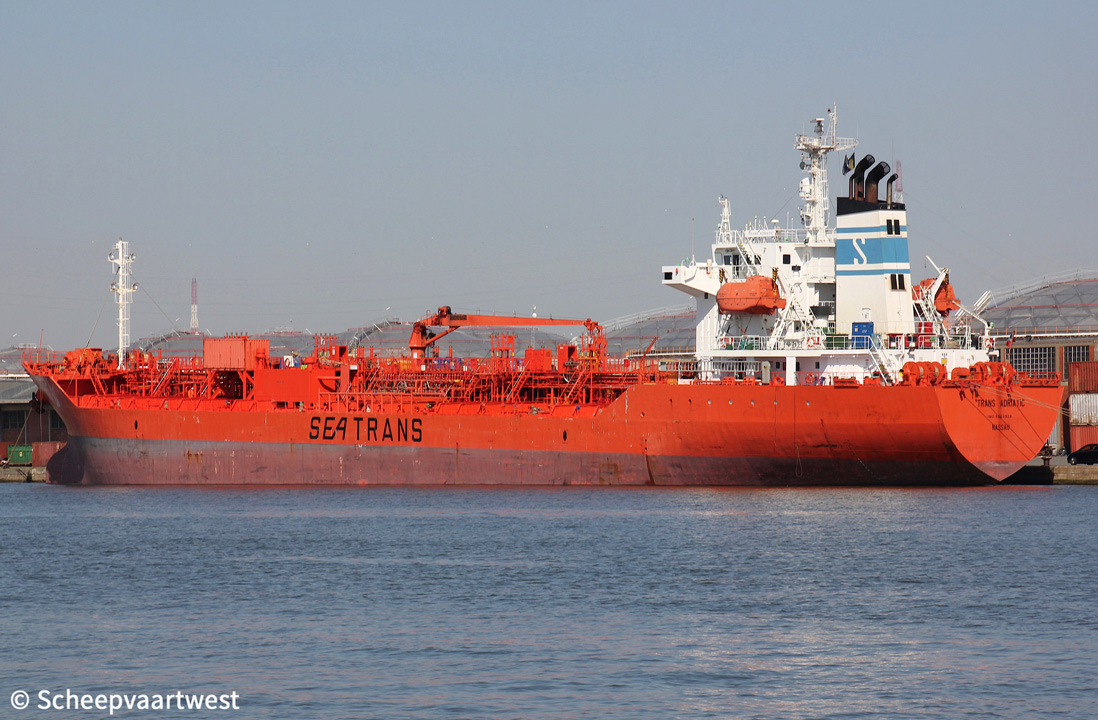

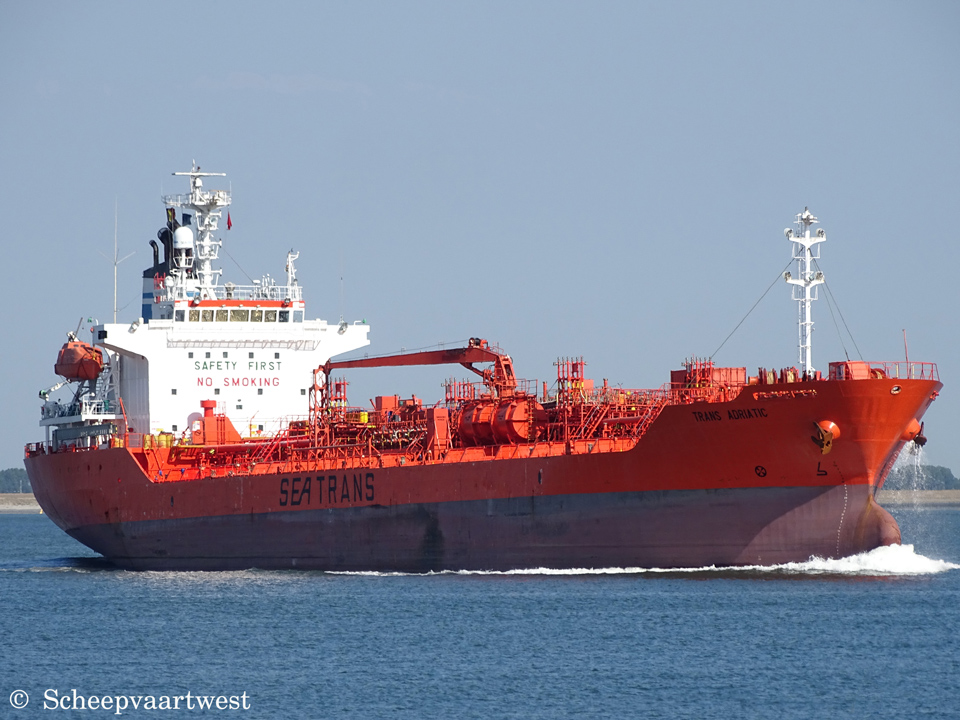

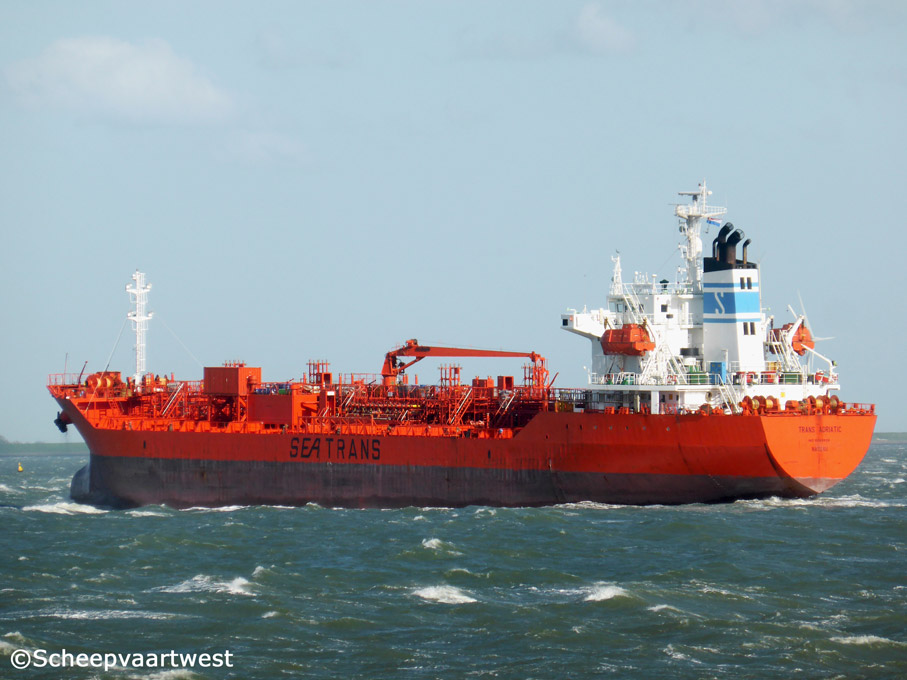

| Westerschelde 05/05/15 | Westerschelde 05/05/15 | Antwerpen 30/04/13 | Antwerpen 06/03/14 | Westerschelde 06/08/18 | Antwerpen 19/04/19 | |||||
|
Name |
TRANS ADRIATIC |
|
Previous names |
2002 - 06/2010 Bow West |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9263928 |
|
Call sign |
C6YQ3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flag |
2009 - 2010 Republic of Panama |
|
GT |
6.837 |
|
DWT |
Summer: 12.503,05 t |
|
NT |
3.851 t |
|
Length |
123,18 m overall 115,85 m between perpendiculars |
|
Breadth |
20,02 m extreme |
|
Draught |
8,73 m |
|
Depth |
11,20 m |
|
Speed |
14,0 knots |
|
Built |
2002 |
|
Keel laid |
17/05/2002 |
|
Date of completion |
06/11/2002 |
|
Builder |
Fukuoka Shipbuilding Co. Ltd. |
|
Yard number |
1226 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x Man B&W 6L35MC - 2 stroke single acting 350 x 1.050 mm combustion engine engine 3.883 kW / 5.279 hp at 210 rpm Manufacturer: Mitsui Engineering & Shipbuilding C Ltd. - Japan |
|
Propellers |
1x Fixed pitch propeller aft at 210 rpm |
|
Boilers |
1x Auxiliary boiler, vertical shell type 1x Auxiliary boiler, exhaust gas water tube |
|
Generators |
3x Yanmar 6L165L-EN diesel engine each 500 kW coupled with 3 generators each 460 kW |
|
Bow thruster |
1x Tunnel thruster 441kW / 600 bhp, forward |
|
Cargo tank capacity 98% |
13.292 m³ |
|
Pumps |
8x Cargo pumps each 300 m³/h 8x Cargo pumps each 200 m³/h 6x Cargo pumps each 100 m³/h |
|
Tank capacities |
Ballast: 3.548,34 m³ |
|
Anchor equipment |
Chain length: 522,50 m Diameter: 48 mm |
|
Crew size |
22 |
|
Manager |
Seatrans Ship Management AS |
|
Previous managers |
2002 - 2013 Seatrans AS |
|
Owner |
Kjemi Trans II AS |
|
Latest data adjustment |
01 January 2019 |
