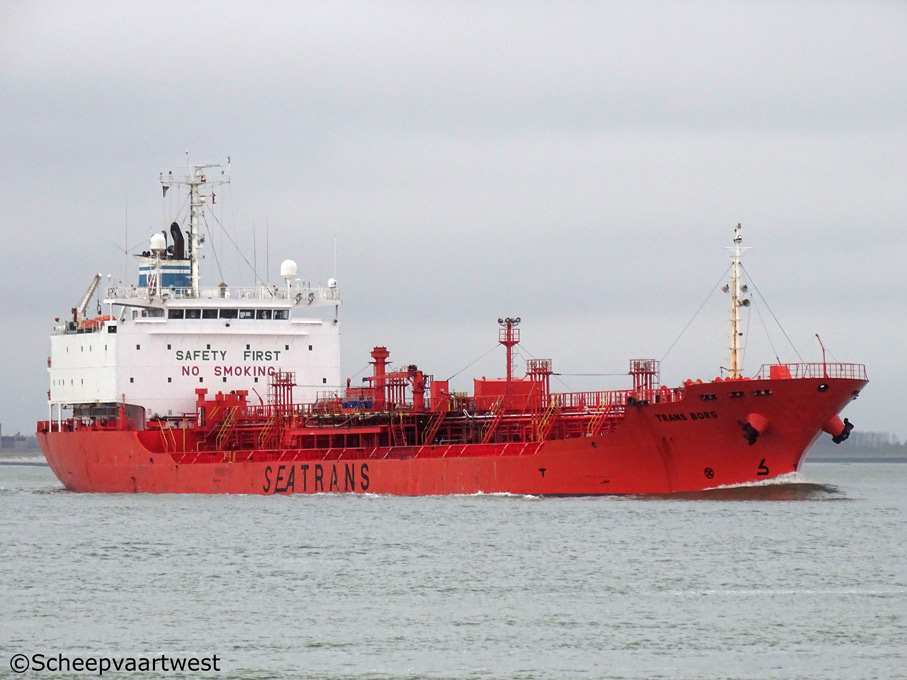

Trans Borg 02

Westerschelde 18 March 2016

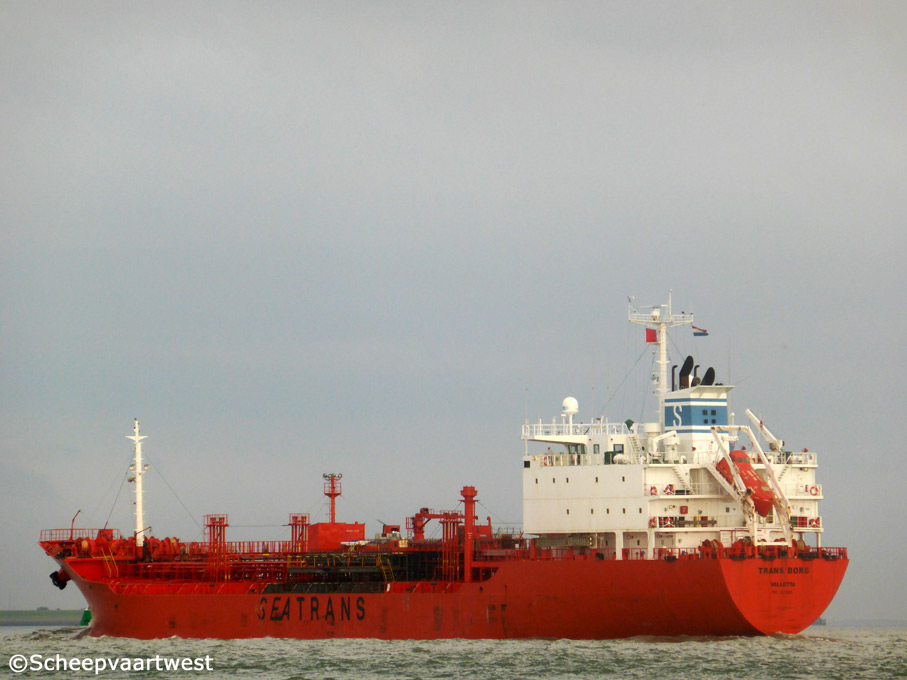

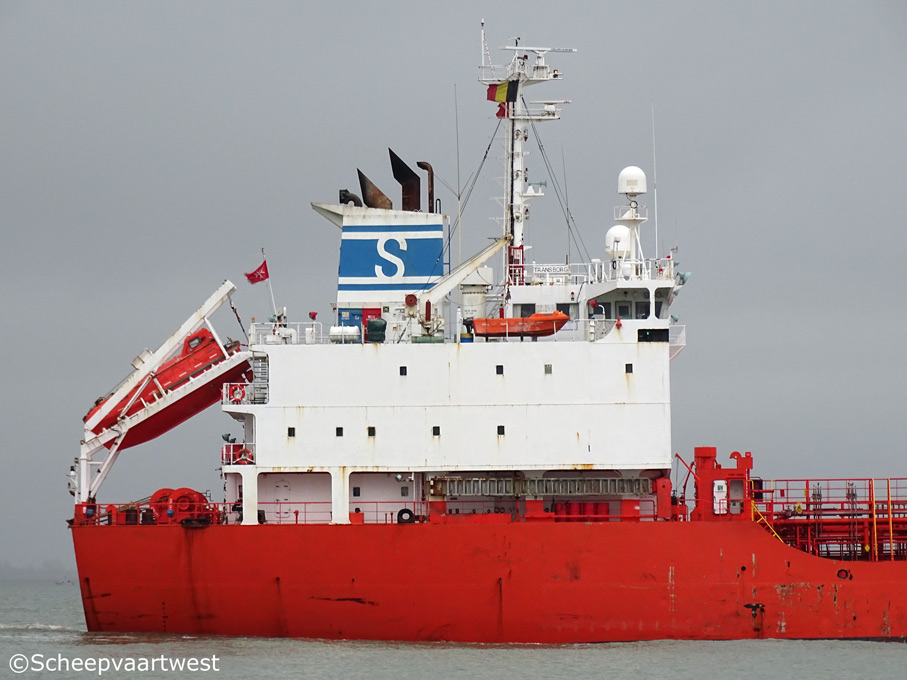

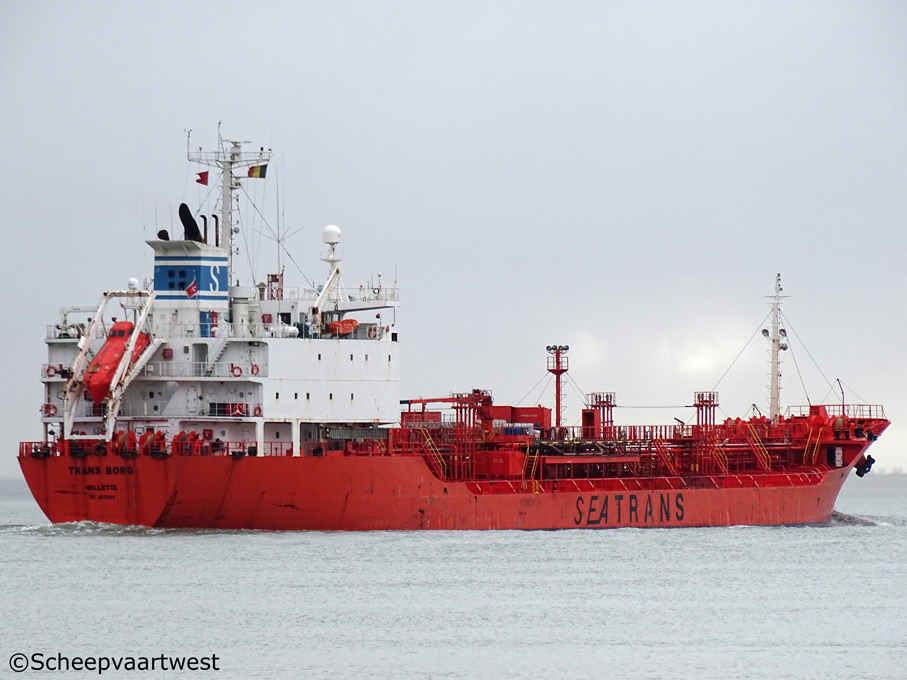

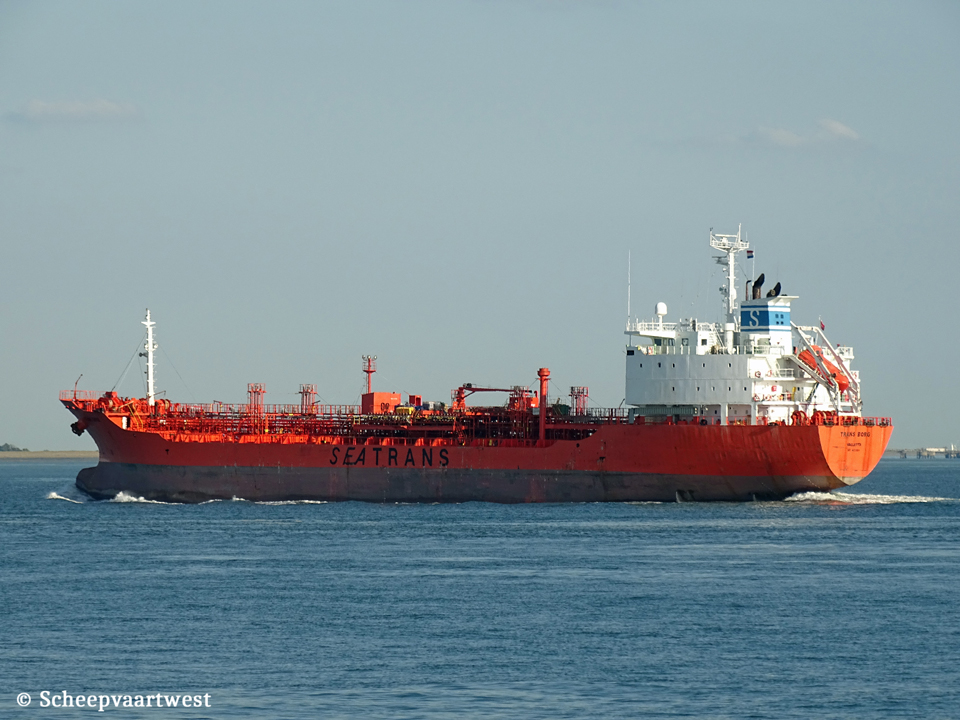

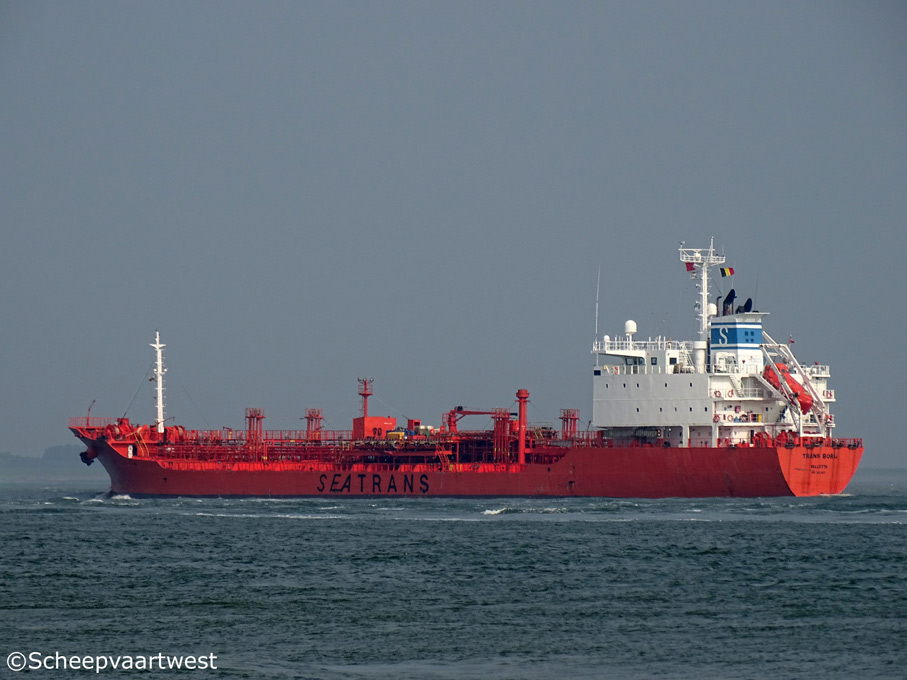

Trans Borg 04   Trans Borg 03   Trans Borg 01   Trans Borg 05   Trans Borg 06   Trans Borg IMO 9221669 07
Westerschelde 18/03/16 Westerschelde 18/03/16 Westerschelde 15/07/14 Westerschelde 27/05/16   Westerschelde 21/01/17   Westerschelde 12/09/16


Name

TRANS BORG

Previous names

2000 - 11/2012 Irene

Type

Tank for oil and chemicals

IMO-number

9221669

Call sign

9HA3236

Flag

Malta

Port of registry

Valletta

Previous flags

2000 - 11/2012 Republic of Panama, Panama City - Call sign: 3EZR7

GT

7.373 t

DWT

Summer: 11.921 t

NT

3.637 t

Length

131,00 m overall

122,00 m between perpendiculars

Breadth

19,63 m extreme

Draught

8,65 m

Moulded L x B x D

122,00 x 19,60 x 11,00 m

Registered L x Bx D

122,00 x 19,60 x 11,00 m

Freeboard

2.380 mm

Depth

11,00 m moulded

Speed

Max.: 15,5 knots

Service 14,2 knots

Built

2000

Keel laid

16/03/1999

Launch date

11/09/1999

Date of completion

17/01/2000

Builder

Kurinoura Dockyard & Shipbuilding

Yawatahama

Japan

Yard number

351

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN 7S35MC - 2 stroke single acting 7 cylinder 350 x 1.400 mm combustion engine 4.891 kW at 170 rpm

Build: 01/04/1999

Builder: Makita Corporation Ltd., Takamatsu - japan

Propeller shaft

1x Sea water lubrication shaft

Diameter: 370 mm

Propellers

1

Builder: Kamome Propeller Co., Ltd.

Boilers

1x Auxiliary boiler, exhaust gas heated KF-155M

1x Auxiliary boiler, oil/gas fired HB-12

Build: 01/02/1999

Builder: Miura Co. ,Ltd.

Generators

3x Yanmar S165L-ST diesel generatorsets each 450 kVA

Tank capacities

Fuel oil: 829,2 m³

Ballast: 4.443,18 m³

Anchor equipment

Length: 522,50 m

Diameter: 54 mm

Manager

Seatrans Ship Management AS

Wernersholmvegen 5

5232 Paradis

Norway

Previous managers

2000 - 2013 Seatrans AS

Operator

SeaTrans

Registered owner

Kjemikalietank AS

Paradis

Norway

Previous owners

2000 - 2012 Seatrans AS

Renamed

03/2019 Marigold

South Korea, Jeju - Call sign: D7BF

Manager & owner: Jeil International Co., Ltd.

Latest data adjustment

22 February 2024
