Nancy 01

Antwerpen 27 August 2014

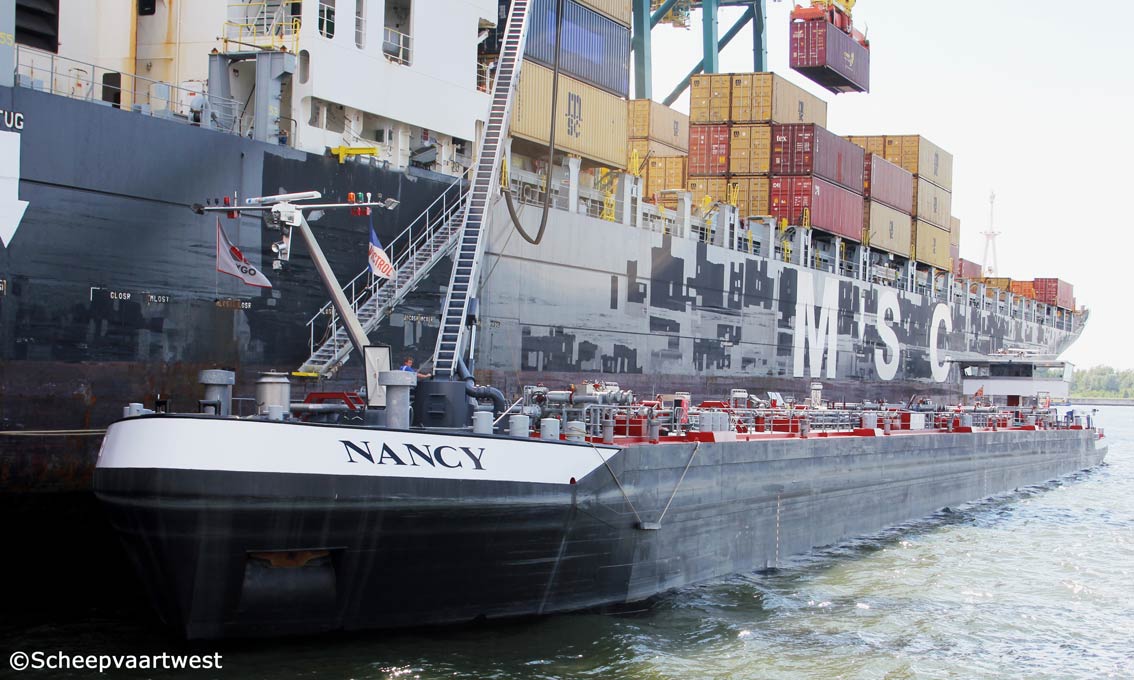

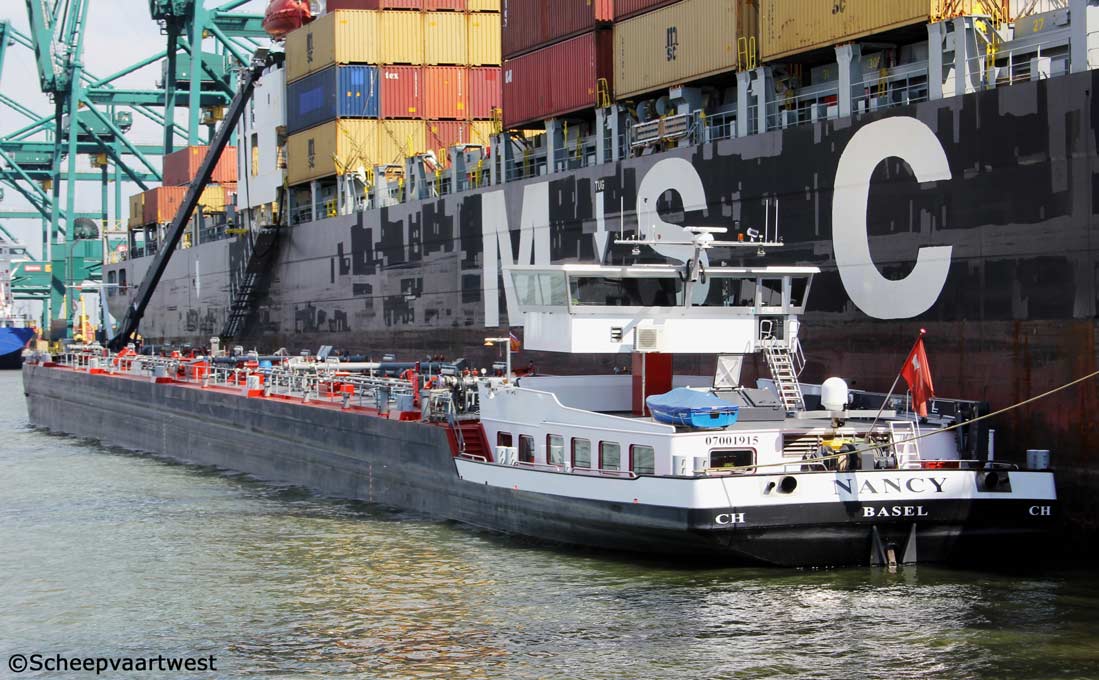

Nancy 03   Nancy 02
24/07/14   24/07/14



Name

NANCY

Type

Inland tanker

ENI-number

07001915

Call sign

HE7316

Flag

Switzerland

Port of registry

Basel

Tonnage

3.989 t

Length

125,00 m

Breadth

11,45 m

Draught

4,11 m

Depth

5,46 m

Built

2009

Builder casco

Stocznia Malbo
Wroclaw
Poland

Builder completion

Jac. den Breejen
Hardinxveld-Giessendam
The Netherlands

Hull material

Steel

Main engine

2x Caterpillar 3508 (C) DI-TA electronic each 783 kW / 1.065 hp at 1.600 rpm

Gearbox

2x Esco type MGX 5321 - reduction 4,96:1

Propellers

2x 5 blades propeller - diameter 1.700 mm

Bow thruster

2x Caterpillar - Verhaar Omega-Jet. Each 392 hp / 288 kW at 1.780 rpm

Cargo tank capacity

4.436 m³

Pumps

6x Bornemann EPS200 cargo pumps 200 m³/h each coupled with electric motors 86 kW

1x Bornemann EPS10 slop pump 10 m³/h coupled with electric motors 7,5 kW kW

Lifting equipment

1x Car crane - SWL 1.995 kg

Owner

RyGo A.G.
Basel
Switzerland

Latest data adjustment

12 October 2014
