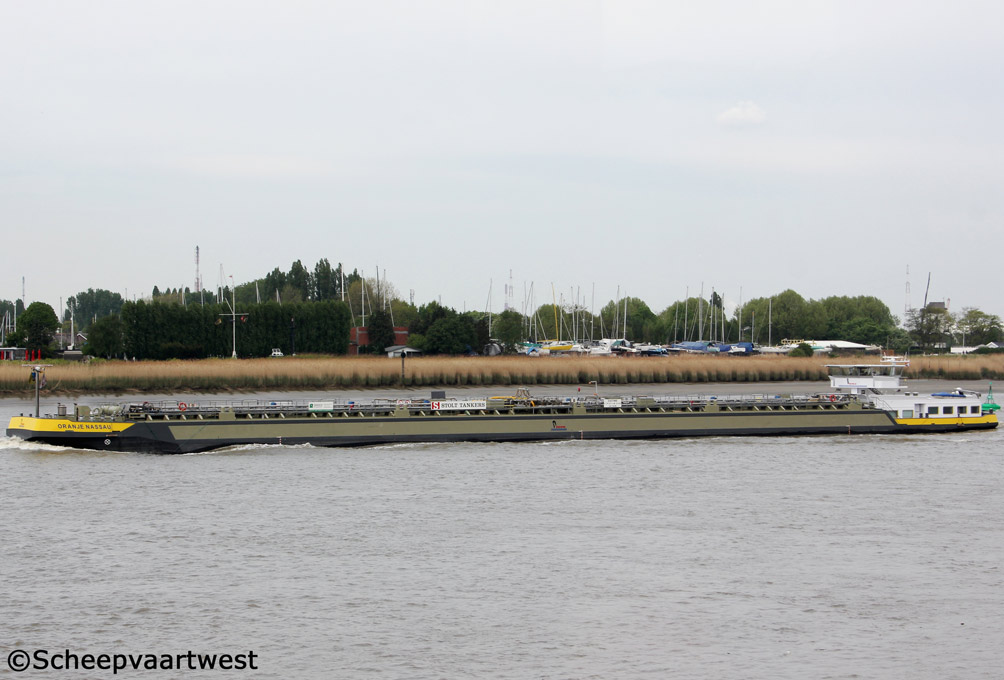

Oranje Nassau 01

Antwerpen 21 April 2014

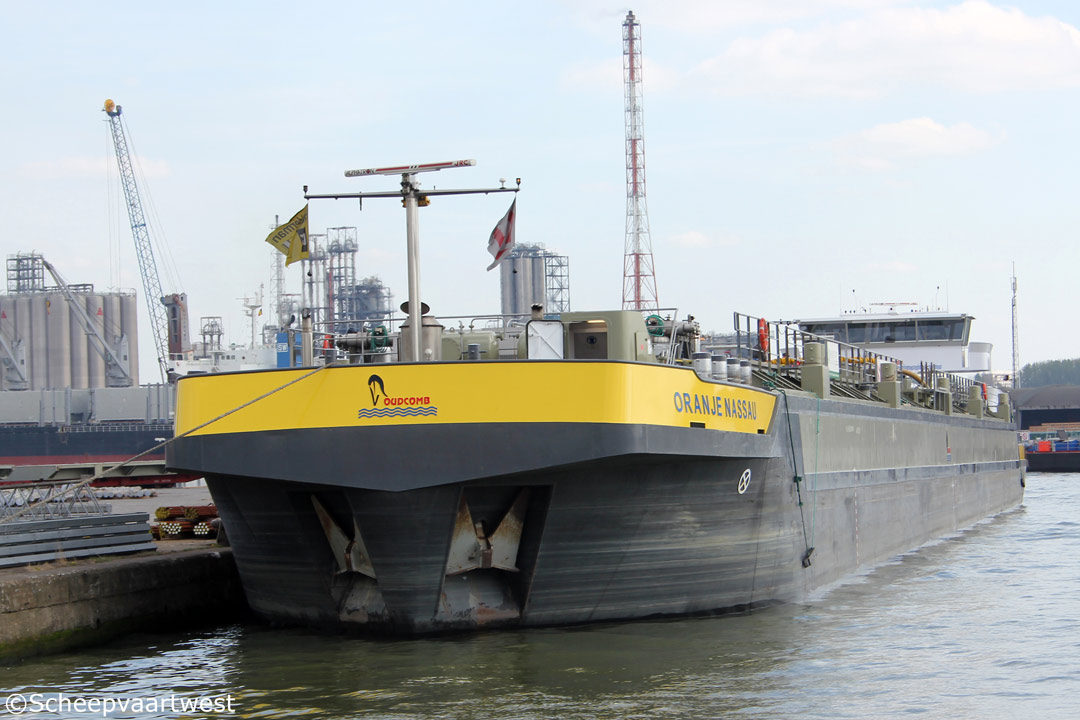

Oranje Nassau 02
Antwerpen 10/04/14


Name

ORANJE NASSAU

Type

Inland tanker

ENI-number

02327060

Call sign

PI2748

Flag

The Netherlands

Port of registry

Giessenburg

Tonnage

3.448 t

Length

110,00 m

Breadth

11,40 m

Draught

4,01 m

Depth

5,60 m

Built

2005

Builder casco

Santierul Naval Orsova SA
Orsova
Romania

Yard number: 142

Builder completion

Jac. den Breejen shipyard
Hardinxveld
The Netherlands

Yard number: 3.448

Hull material

Steel

Main engine

1x Caterpillar 3516 (B) DI-TA electronic - 1?492 kW / 2.028 hp at 1.600 rpm

Gearbox

ZF Marine - reduction: 4,950:1

Propellers

1x propeller diameter 1.750 mm with nozzle diameter 1.760 mm

Generators

1x Caterpillar 3412 E diesel generatorset

1x Caterpillar C9 diesel generatorset

1x John Deere 6068TF258 diesel generatorset

Bow thruster

1x Caterpillar 600 hp- Verhaar Omega-Jet type 31130-4k - 441 kW at 1.780 rpm

Cargo tank capacity

3.800 m³

Pumps

10x Marflex MDPD-100 cargo pumps

1x Marflex MBDPC-200 ballast pump

Operator

Stolt-Nielsen Inland Tanker Service B.V.
Rotterdam

The Netherlands

Owner

Oud Combinatie BV
Giessenburg
The Netherlands

Latest data adjustment

02 June 2014
