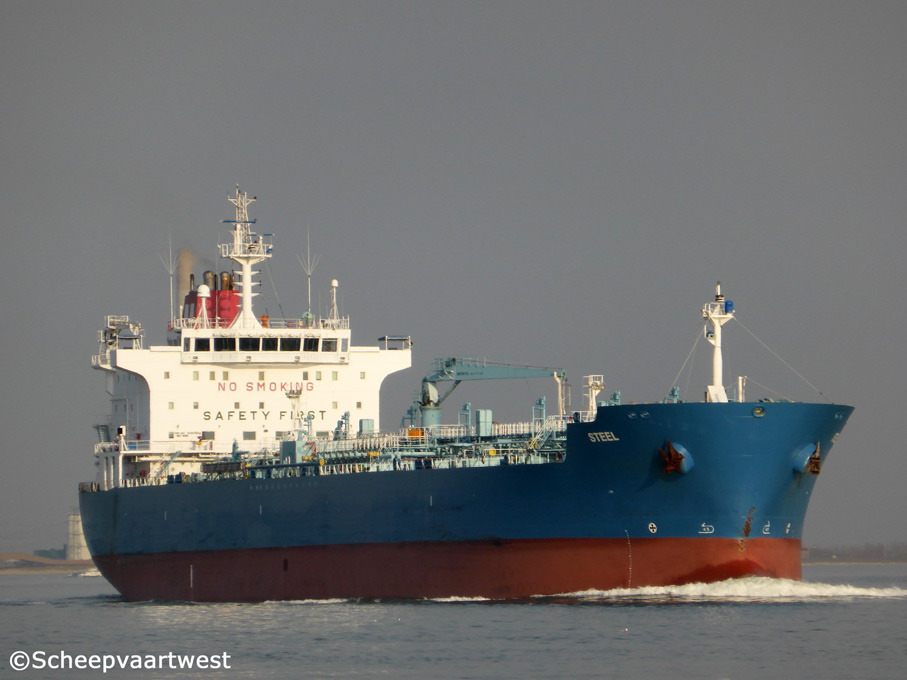

Westerschelde 02 April 2014 |
|
Name |
STEEL |
|
Previous names |
2008 -29.08.2013 Rocket - Rocket Shipping Ltd. |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9380594 |
|
Call sign |
9HHN9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
23.248 t Suez:24.753,19 t |
|
DWT |
37.829 t |
|
NT |
9.915 t Suez: 23.723,51 t Panama: 19.366 t |
|
Length |
184,32 m overall 176,00 m between perpendiculars |
|
Breadth |
27,45 m extreme |
|
Draught |
11,52 m |
|
Keel to masthead |
46,87 m |
|
Freeboard |
Summer: 5.713 mm Winter: 5.953 mm |
|
Depth |
17,20 m moulded |
|
Built |
2008 |
|
Keel laid |
21.03.2008 |
|
Launch date |
10.08.2008 |
|
Date of completion |
31.07.2008 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan |
|
Yard number |
2032 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN 6S50MC-C diesel engine |
|
Propellers |
1 |
|
Boilers |
Auxiliary boiler, exhaust gas heated Auxiliary boiler, oil/gas fired |
|
Generators |
3x Yanmar 6N21AL-EV diesel generatorsets Builder: Yanmar Co., Ltd. Amagasaki Plant |
|
Bow thruster |
1x 1.200 bhp / 894,84 kW |
|
Total tank capacity 98% |
40.780,6 m³ excluding slop tanks |
|
Slop tanks capacity 98% |
1.053,4 m³ |
|
Segregation |
6 |
|
Maximum loading per manifold connection |
1.800 m/h |
|
Maximum loading loaded simultaneously through all manifolds |
3.000 m³/h |
|
Pumps |
Cargo: 10x Centrifugal each 500 m³/h 2x Centrifugal each 300 m³/h 2x Centrifugal each 150 m³/h 1x Centrifugal each 100 m³/h Ballast: 2x Centrifugal each 750 m³/h |
|
Manifolds |
Bow to centre manifold: 92,64 m Stern to centre manifold: 91,68 m Distance bridge front to centre of manifold: 56,94 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 900 mm Distance main deck to centre of manifold: 2.100 mm |
|
Tank capacities |
Fuel oil: 1.175 m³ Diesel oil: 170,3 m³ Ballast water: 17.877,80 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t Maximum outreach: 7,50 m |
|
Manager |
Genel Denizcilik Nakliyati A.S. Buyukdere Cad. Yapi Kredi Plaza A Blok K:12, 34330 Levent |
|
Commercial operator |
Norient Product Pool APS as agent to owners |
|
Registered owner |
Steel Shipping LLC |
|
Latest data adjustment |
22 April 2014 |
