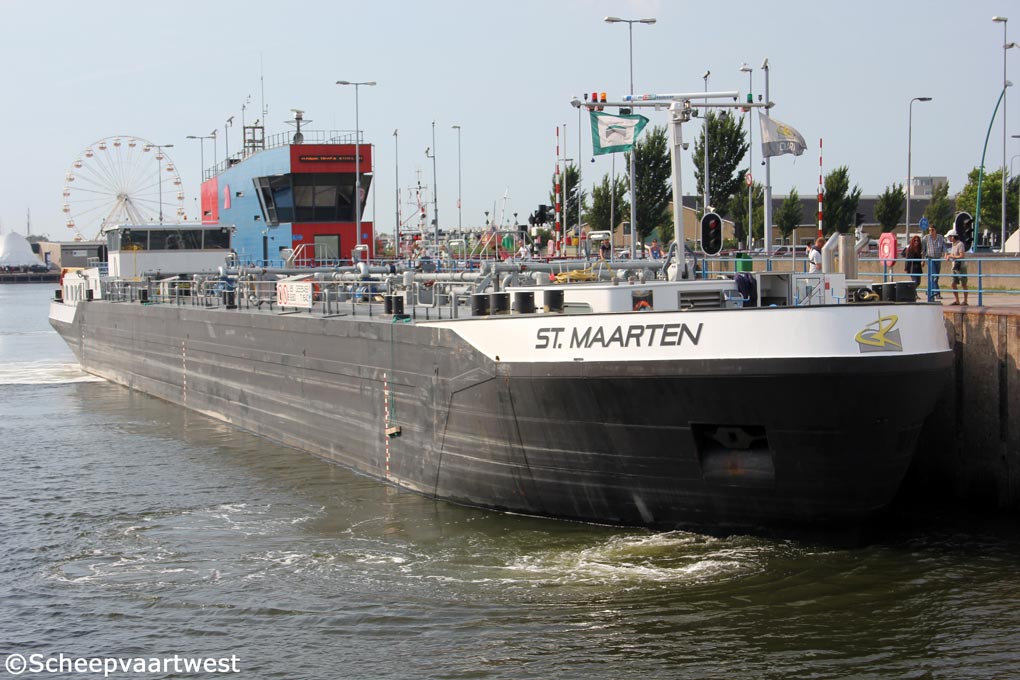

Vlissingen, The Netherlands 20 August 2013 |
 |

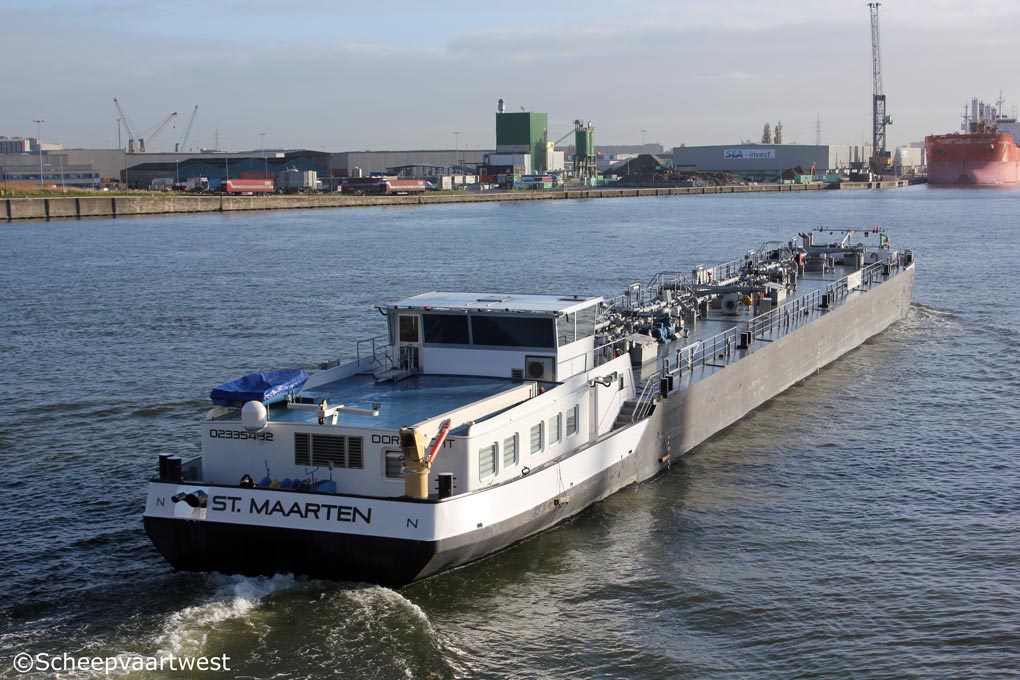

| Antwerpen 15/11/13 |
|
Name |
ST. MAARTEN |
|
Type |
Inland tanker |
|
ENI-number |
02335482 |
|
Call sign |
PA5094 |
|
Flag |
The Netherlands |
|
Port of registry |
Dordrecht |
|
Tonnage |
1.640 t |
|
Length |
85,00 m |
|
Breadth |
9,60 m |
|
Draught |
3,20 m |
|
Air draft |
5,10 m |
|
Built |
2013 |
|
Builder casco |
Kladovo Shipyard |
|
Builder completion |
Trico Shipyard |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi S12A2 MTPAW diesel engine 953 hp |
|
Gearbox |
1x Masson marine type MM W3450 - reduction: 5,476:1 |
|
Propellers |
1x Propeller - 5 bladed |
|
Generators |
1x John Deere type 6135AFM diesel engine coupled with Stamford HCM534 generator 440 kVA 1x John Deere type 4045HFG82 diesel engine coupled with Stamford UCM274 generator 97 kVA 1x John Deere coupled with Stamford generator 62,5 kVA |
|
Bow thruster |
1x Caterpillar 383 hp- Verhaar Omega type VBS900SR - 282 kW at 1.780 rpm |
|
Number of tank |
5 |
|
Tank capacity |
1.843 m³ |
|
Pumps |
2x Bornemann type W7 cargo pumps each 55 kW with capacity 250 m³/h each 1x Bornemann slob pomp unit type W4 - 8,6 kW with capacity 30 m³/h |
|
Manager |
Interstream Barging |
|
Owner |
Vof. St. Maarten Shipping |
|
Latest data adjustment |
17 March 2014 |
