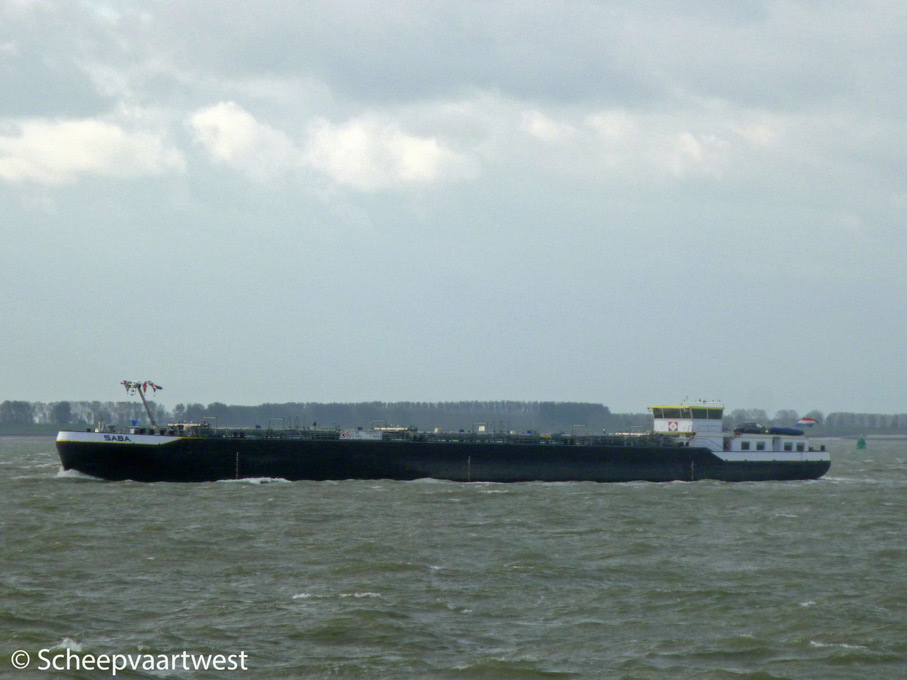

Saba 01
Westerschelde 23 October 2013



Name

SABA

Type

Inland tanker

ENI-number

02334704

Call sign

PC4196

Flag

The Netherlands

DWT

1.689 t

Length

86,00 m

Breadth

9,60 m

Draught

3,20 m

Depth

5,40 m

Built

2011

Builder casco

Shipyard Kladovo Rhine-Danube D.O.O.
Kladovo
Serbia

Builder completion

Shipyard Trico B.V.
Rotterdam
The Netherlands

Hull material

Steel

Hull type

Double hull

Main engine

1x Caterpillar C32 Acert electronic - 745 kW/1.014 hp at 1.800 rpm

Gearbox

1x Reintjes type WAF 562 L - reduction 5,421:1

Propellers

1x 5-Bladed, diam. 1700 mm

Builder: Promarin Propeller- und Marinetechnik GmbH

Bow thruster

Verhaar Omega type VBS900SR - 282 kW / 461 hp at 1.780 rpm

Number of tanks

5

Cargo tank capacity 100%

1.859 m³

Pumps

5x MarFlex electrically driven cargo pumps type MDPD-80 - each 100 m³/h

1x Bornemann slob pump 20 m³/h electrically driven by ABB electro motor each 7,5 kW

Operator

Interstream Barging
Geertruidenberg
The Netherlands

Owner

Saba Shipping C.V.
Aventurijn
Dordrecht
The Netherlands

Last update

23 November 2013
